Specifications
Brand Name :
KEGU
Model Number :
Customizable
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Material :
Alumina
Composition:SiC :
＞75%
Color :
white
Density :
2.4g/cm3-3.7g/cm3
Service Temp :
800-1500℃
Flexural Strength :
80-300MPa
Description

High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability


Description:

The ceramic fuse shell boasts not only essential electrical insulation properties but also a range of specialized characteristics crucial for fuse applications. These include high strength, excellent tensile resistance, and remarkable stability, ensuring reliable performance under demanding conditions.

Additionally, the shell exhibits exceptional resistance to aging, chemical contamination, and corrosion, as well as the ability to withstand sudden temperature changes without leaving any discharge trace residue. These features collectively guarantee enhanced fuse safety, shorter cutting times, and a more economical and effective design.

Product Variety:

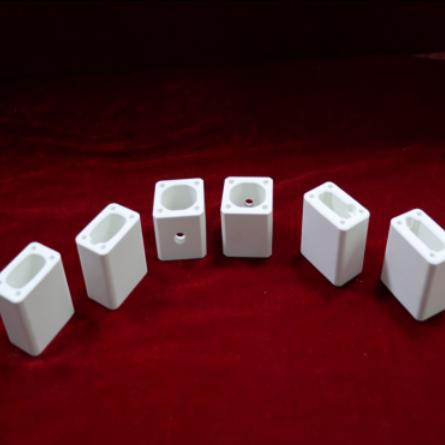

  1. Square HSF Standard Bodies


    (Ⅰ) 75% alumina (porcelain bottle for No. 0 fuse)

    (Ⅱ) 75% alumina (porcelain bottle for No. 1 fuse)

    High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability

    High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability

    (Ⅲ)75% alumina (porcelain bottle for No. 0 fuse)

    (Ⅳ) 75% alumina (porcelain bottle for No. 1 fuse)

    High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability

    		 High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability

    (Ⅴ)95% alumina (porcelain bottle for No. 0 fuse)

    (Ⅵ)95% alumina (porcelain bottle for No. 1 fuse)

    High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability

    		 High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability

  2. Ceramics shells used for electric vehicles

    (Ⅰ)Round tube series

    (Ⅱ) 75% alumina square tube series

    (Ⅲ)95% alumina square tube series
    High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability
  3. Fuse casing for energy storage industry

    (Ⅰ)75% alumina square tube series

    (Ⅱ) 95% alumina square tube series
    High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability

  4. Ceramics shells for wind and solar power industry

High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability


5.Mini fuse’s Square Tubes For Surface Mount Fuses


High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability

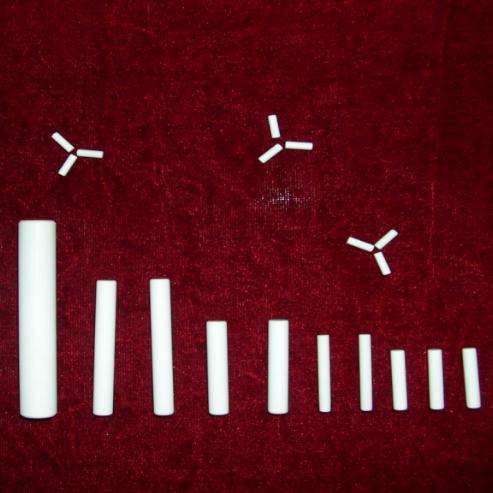

6.Fuse’s Tubes For Axial Leaded and Cartridge Fuses

High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability

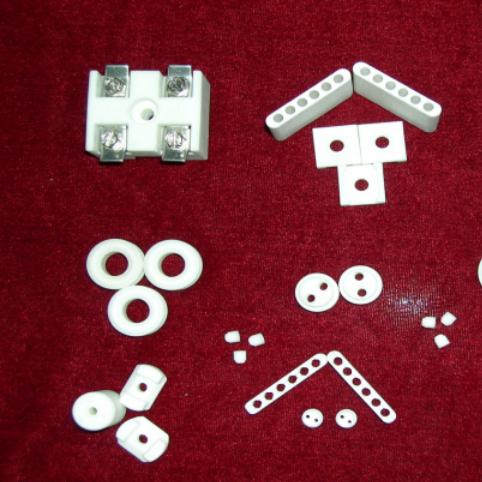

7.Mounting Ceramic Parts


High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability

8.Ceramic Cores for Wirewound Resistors


High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability


The physical properties of product:

Material

Units

L-3 Steatite

L-5 Steatite

A-75

A-95

A-99

Cordierite

Material(DIN 40685)

C220

C221

75%AL2O3

C795

C799

C410

Volume Density

g/cm3

≥2.4

≥2.6

≥3.2

≥3.6

≥3.7

≥2.3

Flexural Strength

Mpa

≥80

≥120

≥200

≥280

≥300

≥80

Linear Expansion Coefficient

×10-6/k(20℃-600℃)

3

5

6.00

8

8

3

Volume Resistivtty

Ω•cm(20℃)

>1011

>1012

>1012

>1013

>1014

>1012

Ω•cm(200℃)

__

__

__

>1010

>1012

>108

Ω•cm(600℃)

__

__

__

>108

>108

>105

Dielectric Constant

(25℃ 1MHz)

≤7.5

≤7.5

≤9

≤10

≤10

≤6

Dieiectric Strength

KV/mm

≥18

≥20

≥20

≥18

≥18

≥15

Dielectric Loss Angle

(25℃ 1MHz)×10-4

≤40

≤20

≤10

≤4

≤4

≤4

Safetyoperating Temperature

℃

800

1000

1200.00

1500

1550

800



Production Equipment:

High-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and DurabilityHigh-Performance Ceramic Fuse Shell: Ensuring Superior Safety, Efficiency, and Durability
