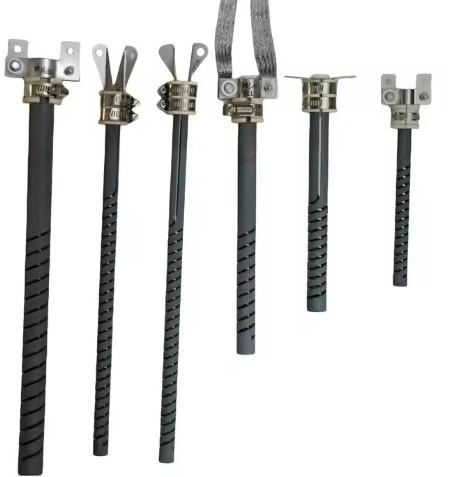

Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces
Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces
Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces
Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces
Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces
Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces
Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces
Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces

Description
Highlight:

SGR Type Sic Heating Element

,

Sic Heating Element For Furnaces

,

Double Spiral Sic Heating Element

Product Description
Double Spiral SGR Type Sic Heating Elements 1625°C For Various FurnacesDouble Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces
Specification
Material
Silicon Carbide Powder
Voltage
220 volts, 380 volts, 110 volts
Shapes
U Shape', W Shape, Spiral Shape, Straight Type, L Type, etc
SiC Content
＞99%
Color
Black
Resistence
Uniform resistance
Power
Adjustable
Working temperature
up to 1625°C
Recommend Products
Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces

SGR Type
Double spiral type sic heater could max reach 1625 ℃
Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces

SG Type
Single spiral type sic heater could max reach 1625 ℃
Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces

U Type
Ideal for drop through design, radiant tube systems or where one element will not span the heating chamber
Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces

W Type
W shape sic heater is widely used in glass industry, particularly for float glass tin bath
Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces

Straight Shape
These are the mostly used sic heater, widely used for various electric furnaces
Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces

Accessories
Except heating element, we also provide many related accessories
Exhibition
Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces
Packing & Delivery
Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces
FAQ
Q1: Are you trading company or manufacturer ?
A1: We focus on manufacturing silicon carbide heater over 20 years.
Q2: What's your MOQ?
A2: We could provide only 1 pcs sample order for checking our quality
Q3: Does your heater has any warranty?
A3: Usually our sic heater provide 6 months warranty. For some more high quality elements, our heating element could reach one to several years span life.
Q4: How to get exact quotation on your sic heater?
A4: We need information of overall length, heating zone length, diameter, resistance and quantity
Q5: As the sic heater is very fragile, do you have any safety package and warranty?
A5: First, we will pack each element safely. Second, we promise return back money of the broken elements.
Q6: How long is your delivery time?
A6: For regular sizes, our lead time is 1-15 days; For special sizes, our delivery time is within 30 day.
Quality control:Double Spiral SGR Type Sic Heating Elements 1625°C For Various Furnaces
