Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

Customized 1500C L W U Type Disilicide Molybdenum Mosi2 Heater Furnace Heating Element

Description
Feature: High Temperature Oxidation Resistance: High
Type: U Shape (U Type) Working Lifetime: 10000h
Usage: Electrical Furnace Length: As Requested
Product Type: Electric Heating Elements Max Max Temperature: 1700c
Corrosion Resistance: Excellent Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Highlight:

Customized Mosi2 Heater Furnace

,

1500C Mosi2 Heater Furnace

,

Mosi2 Heater Furnace Sic Heating Elements

Product details

Factory customized 1800C 1700C L W U Type Disilicide Molybdenum Mosi2 Heater Furnace Heating Element

Molybdenum disilicide(MoSi2) heating element:
Mosi heating element is a kind of resistance heating element basically made of pure molybdenum Disilicide. In oxidizing
atmosphere, a layer of compact quartz protective film is formed on the surface of Mosi 2 element owing to the high temperature combustion, which prevents Mosi 2 from continuously oxidizing.
In oxidizing atmosphere, its Max temperature can reach 1800 c and its applicable temperature is 500-1700. It can be widely used in such applications as sintering and heat treatment of ceramics, magnet, glass, metallurgy, refractory etc. the commercial name of our Mosi 2 heating element is KERONE Mosi 2 Heating Element.

mosi2 heating element
1. According to temperature: 1700C and 1800C
2. According to Shape: U, W, I, U type L shape, W type L shape, Spiral types.
mosi2 heating element standard size
M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1900 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
Physics characters of mosi2 heating element
Bulk density
Bending strength
Hardness
Apparent porosity
Drawing water rate
Thermal elongation
5.6~5.8g/cm3
20MPa(20℃)
(hv)570kg/mm²
0.5~2.0%
0.5%
4%
Recommend surface load:
Furnace Temp(°c)
1400
1500
1600
1650
1700
Surface load of hot zone(W/cm²)
<18
<15
<12
<10
<8
Installation of mosi2 heating element
1)Vertically hanging
Under normal temperature, MoSi2 element is very brittleness, while under high temperature, it is plasticity, so the better way to install U Shape element is to hang it vertically from the furnace top through the support clamping chuck. The aim of such way is to avoid putting the mechanical stress directly to the element heat-generating end; otherwise the element will easily be broken.

2) Support clamp
Support clamp are applied to 9/18 and 6/12 two kinds of elements respectively. The support clamp supports the whole weight of the element and the position of the element is also determined by it, therefore, it must be installed carefully to assure the element vertically hung. In order to prevent the element from being over heated locally, the taper part of the element lower end must put into the furnace chamber.
mosi2 heating element Application:
Item
name
distinction criterion
specification
Heating elements
1700 type
Element operating temperature 1700℃ is acceptable
Le Φ
6-12W type/U type/L type/all kinds of heating element
1800 type
Element operating temperature 1800℃ is acceptable
1800J type
Element operating temperature≥1800℃
Le Φ
3-12W type
1800T type
Element operating temperature≤1800℃
Le Φ
3-12W type U type
Small furnace (power100KW)
Large furnace(Power 100-500KW)
Furnace temperature
Voltage
furnace temperature℃
Voltage
20-150
1/3 Operating voltage
1/3 Operating voltage200-300
1/3 Operating voltage
150-500
2/3 Operating voltage
300-700
2/3 Operating voltage
500-operating temperature
The Whole-Operating Voltage
700-Operating temperature
The Whole-Operating Voltage

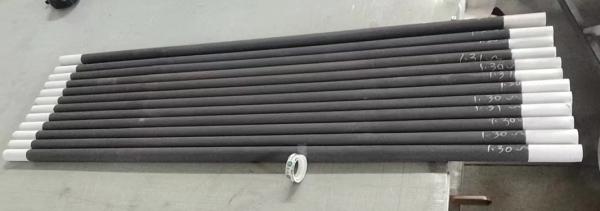

Picture of mosi2 heating element
Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
Order Guide
Dia 3/6 4/9 1800 1700 mosi2 heating elements heating element for zirconia sintering furnace
Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
When you need it, please tell us the following data
such as dia 6/12x200x180x30mm ( D1/D2xLexLuxA )

D1: Diameter of Hot Zone(mm)
D2: Diameter of Cold Zone(mm)
Le: Length of Hot Zone(mm)
Lu: Length of Cold Zone(mm)
A: Shank Spacing(mm)
Package & Delivery
Package for MoSi2 heating element
Wooden box packed filled with foam inside to avoid damage
Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
Quality control:Furnace Molybdenum Disilicide Mosi2 Heater L W U Type Customized 1500C
