Si3N4 Nozzle Silicon Nitride Ceramic with High Temperature Strength Customizable and High Chemical Stability
Si3N4 Nozzle Silicon Nitride Ceramic with High Temperature Strength Customizable and High Chemical Stability
Si3N4 Nozzle Silicon Nitride Ceramic with High Temperature Strength Customizable and High Chemical Stability
Si3N4 Nozzle Silicon Nitride Ceramic with High Temperature Strength Customizable and High Chemical Stability
Specifications
Material :
Silicon Nitride
Composition:SiC :
＞85%
Color :
Black
Density :
3.20-3.26g/cm3
Max. Service Temp :
1450℃
Flexural Strength :
250MPa
Sample :
Customizable
Chemical Stability :
High
Apparent Porosity :
0-0.1%
Elastic Modulus :
300-320GPa
Compression Strength :
>1500MPa
Vickers Hardness(HV0.5) :
15-16GPa
Thermal Conductivity :
20-25W/(m.k)
Specific Resistivity :
10^14Ω·cm
Brand Name :
KEGU
Model Number :
Customizable
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,,
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Description
Si3N4 Nozzle Silicon Nitride Ceramics Oxidation Resistance High Toughness

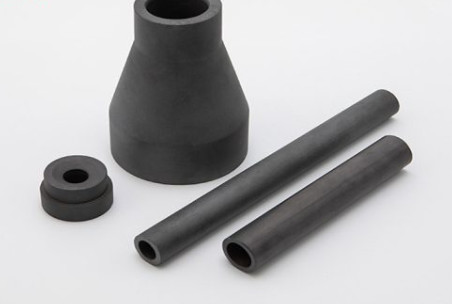

Silicon nitride nozzles and covers feature oxidation resistance, high temperature strength and minimal sputter adhesion, significantly extending the service life of welding components.
Among the five silicon nitride production methods, Gas Pressure Sintering (GPS) is most commonly used for manufacturing Si3N4 components:
Gas pressure sintering of silicon nitride is performed at 1-10 MPa pressure and approximately 2000°C. The high nitrogen pressure prevents silicon nitride pyrolysis. This high-temperature sintering process enables Si3N4 grain growth with minimal sintering aids, producing high-toughness ceramics with long columnar grains and in-situ growth density exceeding 99%. The resulting material offers high toughness, strength, and wear resistance, allowing direct production of complex-shaped products that minimize production and processing costs.
Silicon Nitride Nozzle & Covers Specifications
Size Customized
Color Black
Density 3.22 g/cm³
Flexural strength 800 MPa
Fracture toughness 6.5 MPa m^1/2
Thermal stress parameters 569 K
Material Properties of Silicon Nitride
Item Unit Si3N4
Type - Gas pressure sintered
Density g/cm³ 3.22
Color - Dark grey
Water Absorption % 0
Young Modulus Gpa 290
Vickers Hardness Gpa 18-20
Compressive Strength Mpa 2200
Flexural Strength Mpa 650
Thermal Conductivity W/m.K 25
Thermal Shock Resistance Δ(°C) 450-650
Max. Working Temp. °C 1200
Volume Resistivity Ω*cm > 10^14
Dielectric Constant - 8.20
Dielectric Strength kV/mm 16
* Tests conducted under room temperature environment
* Properties may vary depending on manufacturing method
Key Characteristics of Silicon Nitride Ceramics
  • High strength across wide temperature ranges
  • Exceptional fracture toughness
  • High hardness rating
  • Superior wear resistance
  • Low thermal expansion with high thermal conductivity
  • Excellent thermal shock resistance
  • Strong resistance to chemical and oxidation effects
For more information or inquiries, please contact sales@industrial-ceramicparts.com.
Packaging Information
As a ceramic material, silicon nitride requires careful handling to prevent damage during storage and transportation. Our silicon nitride nozzles and covers are packaged with protective outer boxes and cushioning materials, with vacuum packing employed for certain components.
