Silicon Carbide Slurry Atomization Disc and Sandblasting Nozzle with Exceptional Durability Superior Hardness and High-Purity
Silicon Carbide Slurry Atomization Disc and Sandblasting Nozzle with Exceptional Durability Superior Hardness and High-Purity
Silicon Carbide Slurry Atomization Disc and Sandblasting Nozzle with Exceptional Durability Superior Hardness and High-Purity
Silicon Carbide Slurry Atomization Disc and Sandblasting Nozzle with Exceptional Durability Superior Hardness and High-Purity
Silicon Carbide Slurry Atomization Disc and Sandblasting Nozzle with Exceptional Durability Superior Hardness and High-Purity
Silicon Carbide Slurry Atomization Disc and Sandblasting Nozzle with Exceptional Durability Superior Hardness and High-Purity
Silicon Carbide Slurry Atomization Disc and Sandblasting Nozzle with Exceptional Durability Superior Hardness and High-Purity
Silicon Carbide Slurry Atomization Disc and Sandblasting Nozzle with Exceptional Durability Superior Hardness and High-Purity
Specifications
MOQ :
Negotiable
Price :
Negotiable
Model Number :
Customizable
Delivery Time :
Negotiable
Packaging Details :
Strong wooden box for Global shipping
Usage :
Industry Usage
Chemical Composition :
Al2O3, SiO2
Sic Content :
85%
Maximum Temperature :
1600℃
Characteristics :
High wear resistance
Thermal Expansion Coefficient :
4.0-4.5 × 10^-6 /K
Material Composition :
4%Si >96%Sic
Working Temperature :
1650
Advantage :
Wear and abrasion resistance
Purity :
98%
Material :
Silicon Carbide Ceramic
Acid Alkaline Proof :
excellent
Solubility :
Insoluble
Open Porosity :
<0.1%
Flexural Strength :
350-550 MPa
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Brand Name :
KEGU
Place of Origin :
China
Description

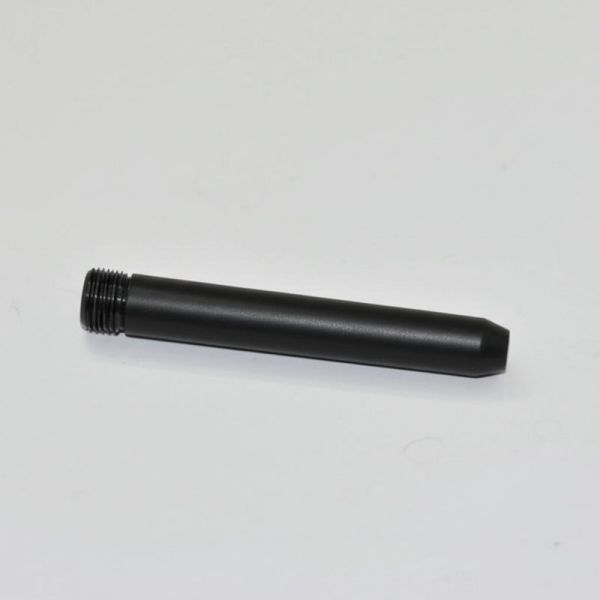

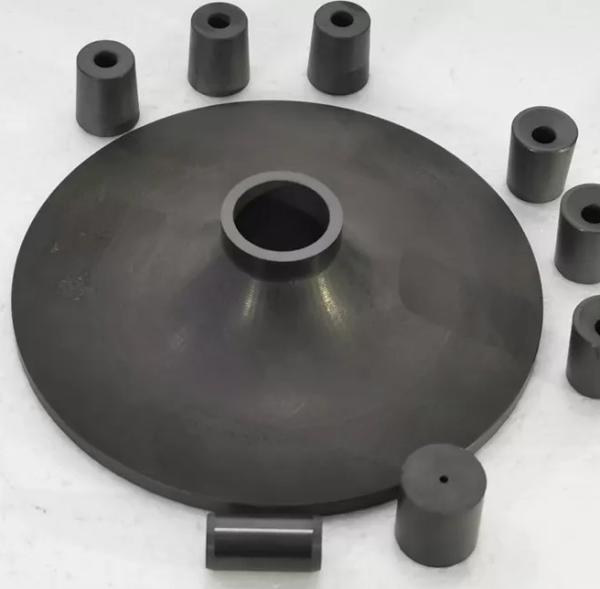

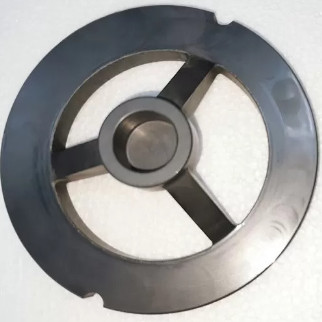

Silicon Carbide Slurry Atomization Disc & Sandblasting Nozzle | High-Wear Resistance
Our Silicon Carbide (SiC) Slurry Atomization Discs and Sandblasting Nozzles are manufactured via advanced isostatic pressing and pressureless sintering techniques. This process ensures superior density, hardness, and wear resistance. We offer complete customization, including precision drilling, grooving, and finishing of inner/outer diameters and end faces (including curved surfaces), to meet your exact design specifications and application requirements.
Key Features & Advantages
  • Exceptional Durability & Long Life: Experience a service life of 1+ years for nozzles, outperforming traditional alloy nozzles by over 2x in abrasive environments.
  • Superior Hardness & Wear Resistance: With a Vickers hardness exceeding 23 GPa and a density of 3.15 g/cm³, our components resist erosion and maintain precision.
  • High-Purity & Contamination-Free: Silicon carbide ceramic ensures no metallic ions are introduced into your process, which is critical for technical ceramics and battery materials.
  • Precision Manufacturing: Atomization discs are available with diameters up to OD300mm and tolerances as tight as 0.02mm. Nozzles can be polished to a surface roughness of Ra < 0.2 for optimal flow.
Typical Applications
Spray Granulation: The ideal centrifugal atomizing disc and nozzle for silicon carbide slurry and other advanced ceramic slurries.
Key Industries:
  • Technical Ceramics: For reliable and consistent part production.
  • Lithium Battery Materials: Ensuring purity and consistency in electrode material processing.
  • Abrasive Blasting: As a long-lasting, high-performance sandblasting nozzle.
Specifications & Customization
All products are custom-made according to customer-provided drawings and requirements.
