Low-Sodium Alpha Aluminum Oxide with 2-3μm Crystal Size and High-Purity Al2O3 ≥99.8% for Advanced Alumina Ceramics
Low-Sodium Alpha Aluminum Oxide with 2-3μm Crystal Size and High-Purity Al2O3 ≥99.8% for Advanced Alumina Ceramics
Low-Sodium Alpha Aluminum Oxide with 2-3μm Crystal Size and High-Purity Al2O3 ≥99.8% for Advanced Alumina Ceramics
Low-Sodium Alpha Aluminum Oxide with 2-3μm Crystal Size and High-Purity Al2O3 ≥99.8% for Advanced Alumina Ceramics
Low-Sodium Alpha Aluminum Oxide with 2-3μm Crystal Size and High-Purity Al2O3 ≥99.8% for Advanced Alumina Ceramics
Low-Sodium Alpha Aluminum Oxide with 2-3μm Crystal Size and High-Purity Al2O3 ≥99.8% for Advanced Alumina Ceramics
Low-Sodium Alpha Aluminum Oxide with 2-3μm Crystal Size and High-Purity Al2O3 ≥99.8% for Advanced Alumina Ceramics
Low-Sodium Alpha Aluminum Oxide with 2-3μm Crystal Size and High-Purity Al2O3 ≥99.8% for Advanced Alumina Ceramics
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
≥3.65g/cm3
Max. Service Temp :
1380℃
Flexural Strength :
250MPa
Hardness :
≥84HRA
Water Absorption :
≤0.2%
Abrasion :
< 0.02%
Bending strength :
≥290MPa
Description

Product Description

High-purity white alumina ceramics (Al2O3 ≥99.8%) with 2-3μm crystal size. Ideal for electric vacuum tube shells (dry pressing) & extruded ceramics. Excellent electrical insulation & sinterability.

Low-Sodium Alpha Aluminum Oxide for Advanced Technical Ceramics

Our high-purity white alpha aluminum oxide powders are engineered for demanding ceramic forming processes. With controlled crystal sizes (0.5-3.0μm) and ultra-low sodium content, they are the ideal choice for applications ranging from electric vacuum tubes to extruded wear-resistant parts.

Product Grades & Specifications



Parameter Unit TM-CB Series TM-CC-1 Series TM-CC-2 Series
Chemical Composition



Al₂O₃ % ≥ 99.8 ≥ 99.4 ≥ 99.7
Na₂O % ≤ 0.05 ≤ 0.35 ≤ 0.10
SiO₂ % ≤ 0.04 ≤ 0.05 ≤ 0.04
Fe₂O₃ % ≤ 0.03 ≤ 0.03 ≤ 0.03
Physical Properties



Density g/cm³ ≥ 3.95 ≥ 3.92 ≥ 3.94
Original Crystal Size μm 2.0 - 3.0 0.5 - 1.0 1.0 - 2.0
Particle Size (D50) μm 4.0 ± 0.5 2.0 ± 0.5 2.0 ± 0.5

Note: 'V' variant grades (e.g., TM-CB-V) offer slightly adjusted purity with similar physical properties.

Application-Specific Product Guide

Low-Sodium Alpha Aluminum Oxide with 2-3μm Crystal Size and High-Purity Al2O3 ≥99.8% for Advanced Alumina Ceramics

Key Features & Benefits by Series

TM-CB Series (e.g., TM-CB, TM-CB-V)

  • Superior Electrical Insulation: Essential for high-performance electric vacuum applications.

  • Excellent Grindability & Uniformity: 2-3μm original crystals ensure a uniform microstructure and superior surface finish after grinding.

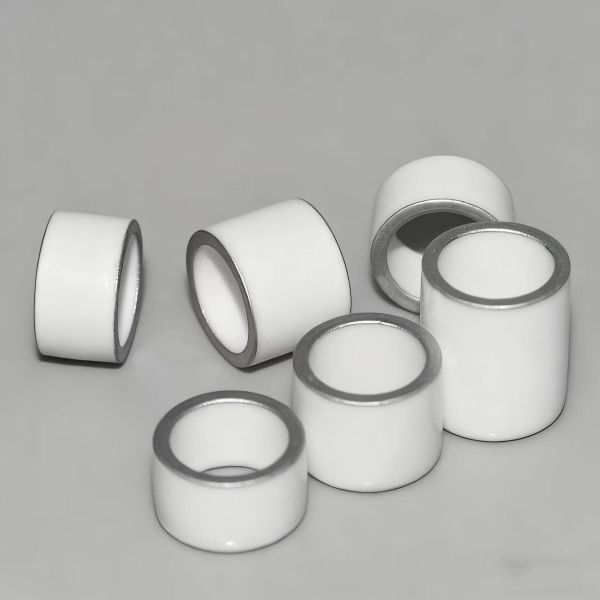

  • Ideal for Metallization: The composition and structure provide an excellent substrate for subsequent metal coating processes.

TM-CC Series (e.g., TM-CC-1, TM-CC-2)

  • Enhanced Sinterability: Fine, reactive particles promote densification at optimized temperatures.

  • High Fired Density: Results in ceramic bodies with high mechanical strength and durability.

  • Uniform Shrinkage: Narrow particle size distribution ensures predictable and consistent dimensional control during firing.
