The Ceramic Membrane MBR System is an advanced submerged membrane bioreactor solution that combines biological wastewater treatment with high-performance ceramic membrane filtration. Designed for municipal and industrial wastewater applications, the system delivers efficient solid-liquid separation, stable effluent quality, and long-term operational reliability.

Unlike conventional polymer membrane MBR systems, our ceramic membrane technology utilizes high-purity alumina flat sheet ceramic membranes with proprietary ceramic glazed sealing technology, providing exceptional resistance to strong acids, alkalis, high salinity, chlorine-containing wastewater, and abrasive suspended solids.

The system is particularly suitable for wastewater streams that rapidly foul or degrade polymer membranes, offering significantly longer service life, reduced maintenance, and lower lifecycle costs.

• High-performance ceramic membrane MBR technology
• Submerged outside-in suction filtration
• Ceramic glazed sealing for superior corrosion resistance
• Excellent resistance to high salinity and chlorine
• Stable long-term permeate quality
• Low membrane fouling
• High sludge concentration operation
• Automatic PLC control
• Automatic air scouring and membrane cleaning
• Online chemical cleaning (CIP)
• Modular system expansion
• Long service life of 5–10 years

The Ceramic Membrane MBR System integrates biological treatment with membrane filtration in a single process.

Wastewater enters the biological reactor, where microorganisms degrade organic contaminants. The submerged ceramic membrane modules continuously separate treated water from activated sludge through outside-in suction filtration.

Air scouring beneath the membrane modules minimizes fouling, while periodic backwashing and chemical cleaning maintain stable membrane performance. The concentrated sludge remains within the biological reactor, allowing operation at higher mixed liquor suspended solids (MLSS) concentrations and improving treatment efficiency.

A complete Ceramic Membrane MBR System typically includes:

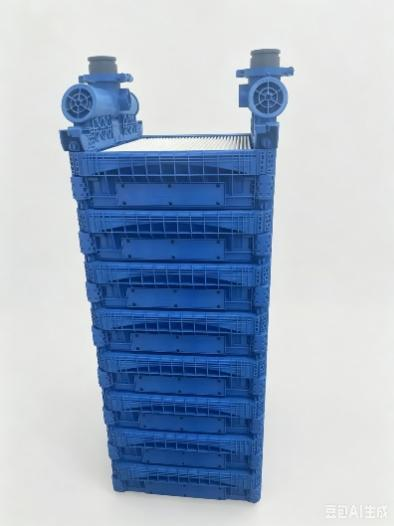

• Flat Sheet Ceramic Membrane Modules
• Biological Reaction Tank
• Stainless Steel Membrane Frames
• Suction Pumps
• Air Blower System
• Automatic Backwash System
• Online CIP Cleaning Unit
• PLC Control Cabinet
• Flow Meters and Pressure Sensors
• Stainless Steel Piping and Valves
• Electrical Control System

System capacity and membrane quantity can be customized according to project requirements.

The ceramic glazed sealing technology provides excellent resistance to strong acids, alkalis, chlorine-containing wastewater, and high-salinity environments, eliminating common sealing failures associated with epoxy resin.

The ceramic membrane surface offers high mechanical strength and excellent resistance to fouling, enabling longer filtration cycles and reduced cleaning frequency.

The precise pore structure effectively retains suspended solids, bacteria, and activated sludge, producing consistently high-quality permeate suitable for discharge or reuse.

Ceramic membranes typically provide 5–10 years of service and withstand repeated chemical cleaning and backwashing, reducing replacement frequency and lifecycle costs.

The robust ceramic structure minimizes maintenance requirements and supports stable long-term operation, helping reduce overall operating expenses.

• Municipal sewage treatment plants
• Water reclamation facilities
• Decentralized wastewater treatment

• Chemical wastewater
• Pharmaceutical wastewater
• Textile and dyeing wastewater
• Electroplating wastewater
• Food processing wastewater
• Paper and pulp wastewater

• Landfill leachate
• High-salinity wastewater
• High-COD wastewater
• High suspended solids wastewater
• Mining wastewater

• Industrial recycled water
• Process water recovery
• Cooling water reuse
• Zero Liquid Discharge (ZLD) pretreatment

• Automatic PLC Control
• HMI Touchscreen Interface
• Remote Monitoring (SCADA)
• Automatic Chemical Dosing
• Online Membrane Integrity Monitoring
• Automatic Backwashing
• Automatic CIP Cleaning System
• Frequency-Controlled Pumps
• Containerized MBR System

• Complete turnkey MBR solution
• High-purity alumina ceramic membranes
• Proprietary ceramic glazed sealing technology
• Excellent corrosion and fouling resistance
• Long membrane service life
• Stable water treatment performance
• Modular system design
• Customized engineering solutions
• Professional technical support from pilot testing to full-scale implementation

We provide comprehensive engineering services, including:

• Process evaluation and membrane selection
• Pilot-scale testing
• Customized MBR system design
• Equipment manufacturing
• Installation and commissioning
• Operator training
• After-sales technical support
• Long-term maintenance and system upgrades
