Specifications
Brand Name :
Huaying
Model Number :
HYVA-405
Certification :
ISO/CE
Place of Origin :
Wuhan
MOQ :
1
Price :
Negotiable
Supply Ability :
10 units per week
Packaging Details :
Wooden case
Color :
Black
Typical error :
0.02%
Storage :
8G
Function :
CT and PT On-site calibration
Warranty :
1 year free and lifelong maintenance
Customize service :
Provided
Description

8G Portable CT PT Test Set High Accuracy Strong Data Management Simple Operation

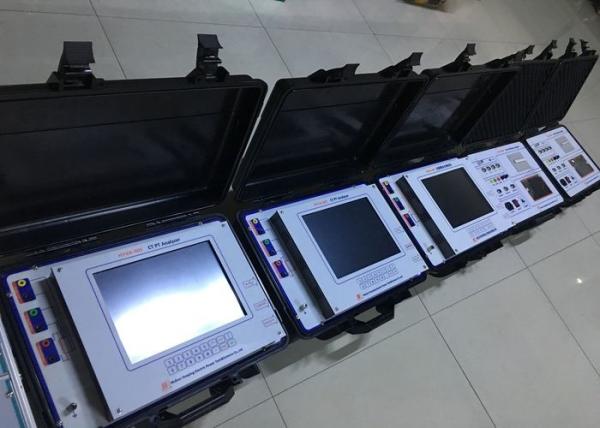

HYVA-405 is mainly used to detect on phase error, ratio error, burden and admittance test of CT&PT. In addition, it supports data save and site printing, this can not only omit a lot of troublesome work such as manual voltage regulating, manual record and curve tracing, but also dump testing data through USB interface with USB disk .

Features

★ Wide range, it can do CT test from 50/5 zero-sequence CT to 35000/1 generator CT.
★ Simple operation, all parameters and projects of the transformer are tested with one click
★ Ultra-high measurement precision, Typical ratio measurement error is only 0.02%
★ With powerful data management function, single machine can store more than 5000 groups data.
★ Intelligent assessment, it makes conclusion automatically whether the transformer test is qualified.
★ Strong application software support, make word reports for test result in bulk
★ Complete transformer on-site calibration without standard transformer, strong current power source, and load-box

Reference Standard

GB 1207-2006, GB 1208-2006 (IEC 60044-1), GB16847-1997 (IEC 60044-6) , IEEE C57.13-1993
