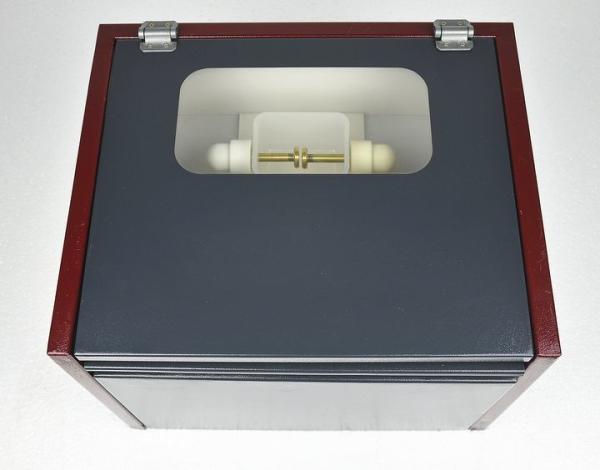

Multi Standard ASTMD877 Oil Dielectric Strength Test With Large Color Touch Screen
Multi Standard ASTMD877 Oil Dielectric Strength Test With Large Color Touch Screen
Specifications
Brand Name :
Huaying
Model Number :
HYYJ-502A (80KV)
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Warranty :
1 year free and lifelong maintenance
Standard 1 :
IEC60156/IS6792/BS5874/VDE0370-5
Standard 2 :
ASTMD877 and ASTMD1816
Customize service :
input power supply 120V 60Hz
Output voltage :
0-80KV
Storage :
100 groups
Description

Multi Standard ASTMD877 Oil Dielectric Strength Test With Large Color Touch Screen

1. Product Name:

Insulation oil tester HYYJ-502A

2. Main Functions:

1 IEC60156/IS6792/BS5874/VDE0370-5

2 User-defined

3 5 minute test

4 ASTMD877

5 ASTMD1816

6 JIS C 2101-99(S)

7 Proof "A"

8 Proof "B"

3. Technical Parameters:

1 Voltage OEM for clients

2 AC220V±10%

3 Output voltage:AC 0V~100KV

4 Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%

5 Max test times: 9

6 Init wait times:0~999s

7 Stir time: 0~999s

8 Wait time: 0~999s

9 Measurement accuracy: ±(1% of full scale + 2 digits) Resolution:0.1KV

10 Temperature measurement:

11 Measurement range : 0°C to 70°C, or better

12 Temperature resolution : 1°C, or better

13 Operating temperature : up to 45°C

14 Storage:100 groups

15 7 inch colorful LCD with touch pad

16 Oil test vessel temperature measurement unit

17 All the selection can be done by touch panel with color LCD.

WARNINGS:
1 If the tester shows the text “door open, please close the door”, it is mean that the test is paused. You would have to close the door for safe. Otherwise the tester will not work.
2 It is very dangerous that open the insulating door when the tester is working.
