100 Kv Transformer Oil Testing Equipment Insulating Oil Dielectric Test Sets Oil Bdv Tester
100 Kv Transformer Oil Testing Equipment Insulating Oil Dielectric Test Sets Oil Bdv Tester
100 Kv Transformer Oil Testing Equipment Insulating Oil Dielectric Test Sets Oil Bdv Tester
100 Kv Transformer Oil Testing Equipment Insulating Oil Dielectric Test Sets Oil Bdv Tester
Specifications
Place of Origin :
Wuhan Hubei China
Brand Name :
Huaying
Certification :
ISO
Model Number :
HYYJ-502
MOQ :
1 Set
Price :
whhy818@163.com
Packaging Details :
Wooden Case
Delivery Time :
7 Working Days
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Output voltage :
AC 0-100KV
Usage: :
Auto Testing Machine, Insulating oil breakdown tester
BDV Testing Kit display :
Digital display LCD
Data storage: :
100 groups
Warranty :
1 year
Size :
73*44*55cm
Description

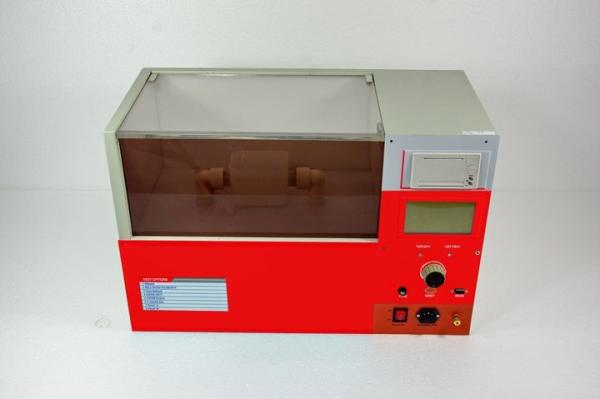

100 Kv Transformer Oil Testing Equipment Insulating Oil Dielectric Test Sets Oil Bdv Tester

1. Application:

This equipment is used to test Breakdown Voltage (BDV) of Insulating Oil / Transformer Oil

2. Functions:

Breakdown test of user-defined

Proof test

IEC156/IS6792/BS5874

3. Specifications:

Output voltage:AC 0V~100KV

Rate of voltage rise: 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%

Max test times setting for user-defined mode: 9

Stir time setting for user-defined mode: 0~999s

Waiting time setting for user-defined mode: 0~999s

Test error: 3%RDG+0.3%FS

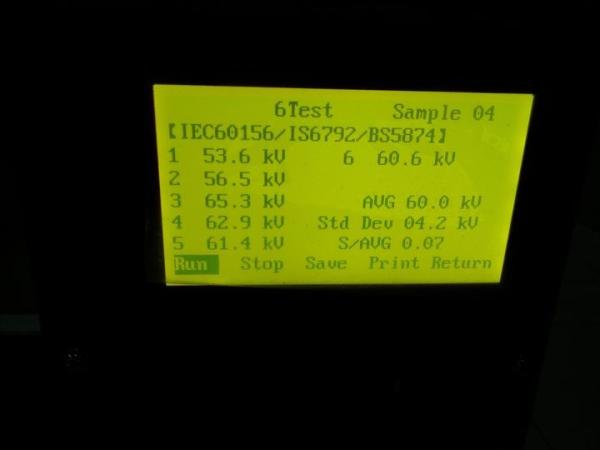

Display: 256´128 LCD

Maximum storage capacity: 100 groups of test data

Power supply : AC220V±10%, 50Hz/60Hz

Environment temperature: 0-50℃

Relative humidity ≤80%RH

Weight:41kg

Size:620 mm*430mm*330mm
