Specifications
Brand Name :
Huaying
Model Number :
HYCF
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
primarytester@126.com
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Product name :
Cable Fault Locator
Test item 1 :
High Resistance Flashover Fault
Test item 2 :
Grounding High and Low Resistance Fault
Test item 3 :
Short & Off Circuit on the Cable Fault
Test item 4 :
Poor contact
Device :
Portable type
Description
Light Weight Cable Fault Tester Cable Fault Analyzer High Resistance Leakage
Product name
Cable Fault Locator HYCF
Introduction


The cable-fault detector is a testing device of good integrity. It can test on the High Resistance Flashover Fault, Grounding High and Low Resistance Fault, Short & Off Circuit on the Cable Fault and Poor contact and etc. If being equipped with sounding method and locating instrument, it can exactly detect the fault point. Furthermore, it especially applies to test for
various power cable and communication cable.

Features

Scope of application and using purpose

The instrument can test all kinds of electric cable(voltage of 1KV-35KV) and the Short Circuit, Grounding, Leakage of High
Resistance. High Resistance Flashover, Out Line and Bad Contact fault on the local cables, frequency modulation communication cables, coaxial cable and metal aerial cables. It also can test the length of cable and the spread velocity on the cable.

Technical index

The longest testing distance is 32KM (100KM for the open-wire line)
Testing .dead zone is 1M.
Resolution of reading is 1M
Power dissipation is 5VA
Service condition :

Environment temperature 0℃~+40℃

Terminal temperature -10℃~+50℃

Relative humility 90%RH

Dimension: 225×165×125mm3

Weigh: 2kg

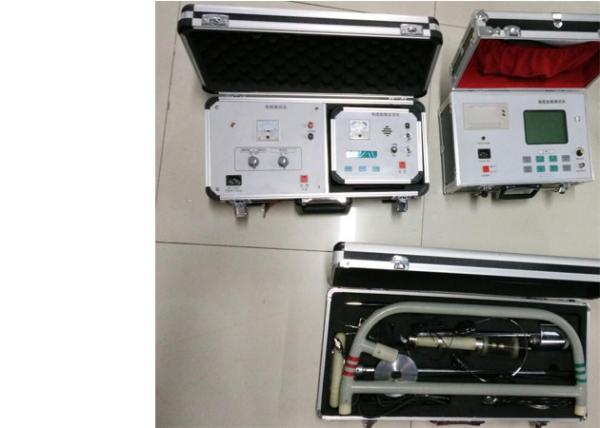

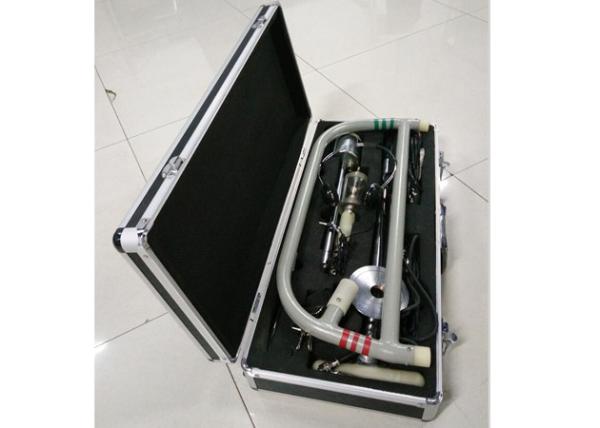

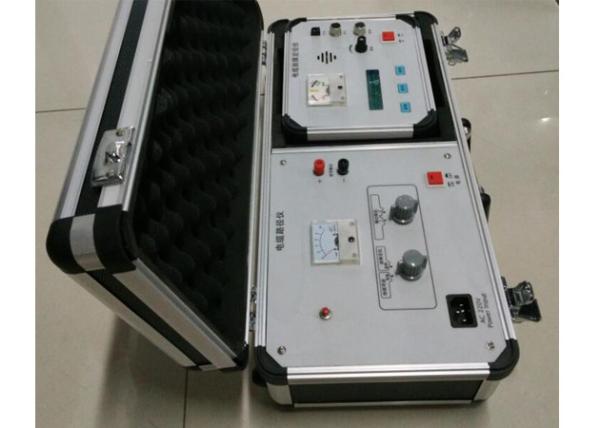

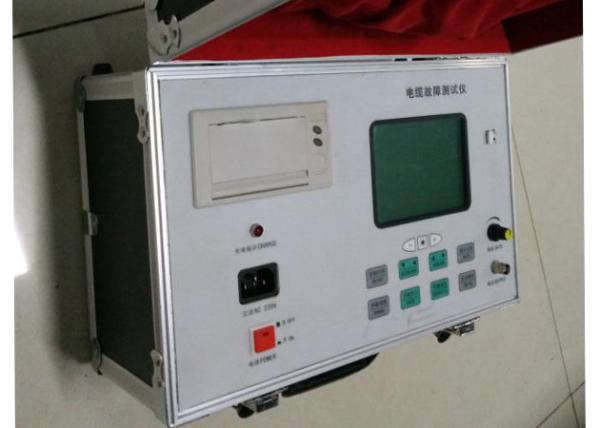

Product Picture

Light Weight Cable Fault Tester Cable Fault Analyzer High Resistance Leakage

Light Weight Cable Fault Tester Cable Fault Analyzer High Resistance Leakage
