Automatic Transformer Oil Testing Equipment Transformer Oil Breakdown Voltage Test Kit
Automatic Transformer Oil Testing Equipment Transformer Oil Breakdown Voltage Test Kit
Automatic Transformer Oil Testing Equipment Transformer Oil Breakdown Voltage Test Kit
Automatic Transformer Oil Testing Equipment Transformer Oil Breakdown Voltage Test Kit
Specifications
Place of Origin :
Wuhan Hubei China
Brand Name :
Huaying
Certification :
ISO
Model Number :
HYYJ-502A
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
7 Working Days
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Application :
Dielectric Breakdown Voltage Test
Test object :
Insulation Oil
Output voltage :
AC 0~80KV or 0~100KV
Rate of voltage rise :
0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
Weight :
38kg
Size :
550 mm*500mm*580mm
Description

Automatic Transformer Oil Testing Equipment Transformer Oil Breakdown Voltage Test Kit

1. Product Name:

Automatic Transformer Oil Breakdown Voltage Test Kit

2. Main Functions:

HYYJ-502A is improved on basis of HYYJ-502.

It increases temperature measurement.All the selection can be done by touch pad with color LCD.

1 IEC60156/IS6792/BS5874/VDE0370-5
2 User-defined
3 5 minute test
4 ASTMD877
5 ASTMD1816
6 JIS C 2101-99(S)
7 Proof "A"
8 Proof "B"
9. Calibration interface for customers
10. Unloading data to PC and making word report automatically.
11. Result print
3.Technical Parameters:
1 Voltage OEM for clients
2 AC220V±10% power supply input
3 Output voltage:AC 0V~100KV
4 Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
5 Max test times: 9
6 Init wait times:0~999s
7 Stir time: 0~999s
8 Wait time: 0~999s
9 Measurement accuracy: ±(1% of full scale + 2 digits) Resolution:0.1KV
10 Temperature measurement:
11 Measurement range : 0°C to 70°C, or better
12 Temperature resolution : 1°C, or better
13 Operating temperature : up to 45°C
14 Storage:100 groups
15 7 inch colorful LCD with touch pad
16 Oil test vessel temperature measurement unit
17 All the selection can be done by touch panel with color LCD.

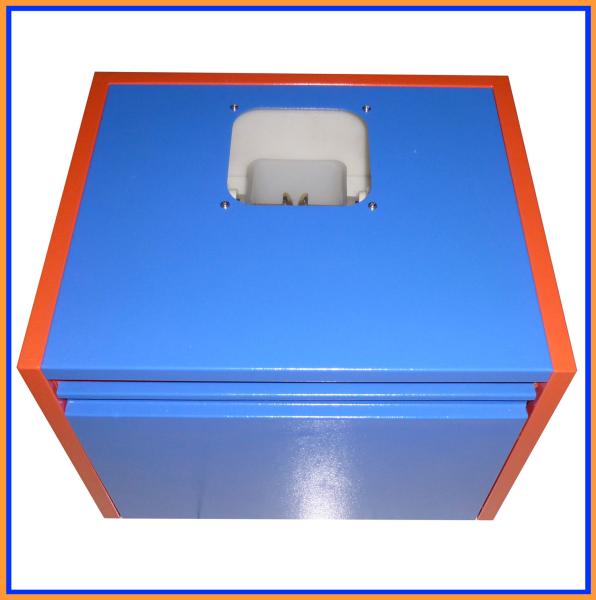

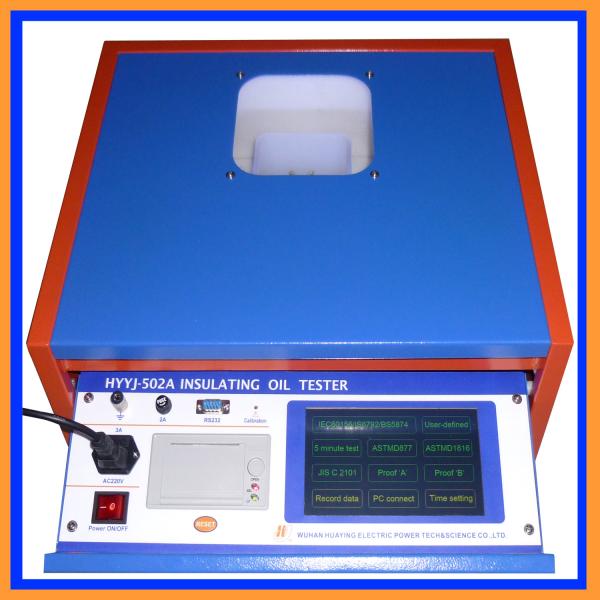

4. Product Picture:

Automatic Transformer Oil Testing Equipment Transformer Oil Breakdown Voltage Test Kit
