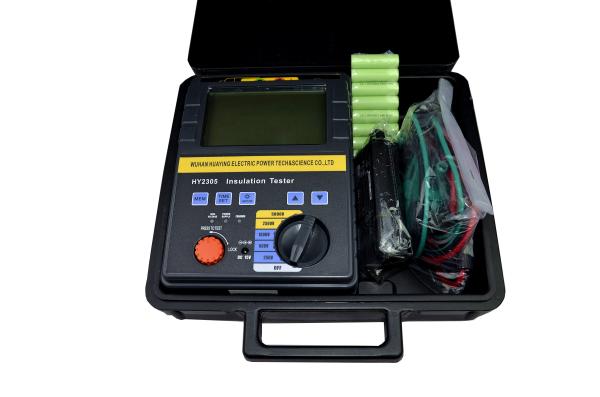

Dual Integration Megger Insulation Tester Insulation Resistance Meter Liquid Crystal Display
Dual Integration Megger Insulation Tester Insulation Resistance Meter Liquid Crystal Display
Specifications
Place of Origin :
Wuhan Hubei China
Brand Name :
Huaying
Certification :
ISO
Model Number :
Huaying Series
MOQ :
1 Set
Price :
whhy818@163.com
Packaging Details :
Wooden Case
Delivery Time :
7 Working Days
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Name :
Insulation Resistance Tester
Model :
HY2306
insulation resistanc :
1000MΩ
Power :
DC 15V/4A
Certificate :
ISO
Weight :
3KG
Description

Dual Integration Megger Insulation Tester Insulation Resistance Meter Liquid Crystal Display

Name:

Insulation Resistance Tester

Technical Parameters:

2, Operating system: Dual integration

3, Display: Liquid crystal display(Max. 9999counts)

Bar graph / Max. 31points

4, Low battery warning: Battery mark display (in 4 levels)

5, Over range indication: “----“ mark appears on insulation resistance range.

6, Sample rate: approx 0.5～5 times/sec

7, Operable altitude: 2000m or less above sea level

8, Temperature & humidity range (guaranteed accuracy):

23±5℃ / Relative humidity 85% or less (no condensation)

9, Operating temperature & humidity range:

0℃～+40℃ / Relative humidity 85% or less (no condensation)

10, Storage temperature & humidity range:

-20℃～+60℃ / Relative humidity 75% or less (no condensation)

11, Insulation resistance: 1000MΩ or more /DC 1000V

(Between electrical circuit and enclosure)

12, Dimension: 230(L) ×190(W) ×90(D) mm

13, Weight: approx 3.5kg (battery included)

14, Power source: DC15V/4A Adapter Power

Or DC9.6V: charging battery size AA×8pcs


Model HY2306

Rated

Voltage

 5000V 10000V
Measuring Range

0.0～99.9MΩ

100～999MΩ

1.00～9.99GΩ

10.0～99.9GΩ

100～200GΩ

0.0～99.9MΩ

100～999MΩ

1.00～9.99GΩ

10.0～99.9GΩ

100～400GΩ

Open circuit

Voltage

 DC 5000V +20%, -0% DC 10000V +10%, -0%

Short-circuit

Current

 Approx 3.3mA
Accuracy ±5%±3dgt

100GΩor more

±20%
