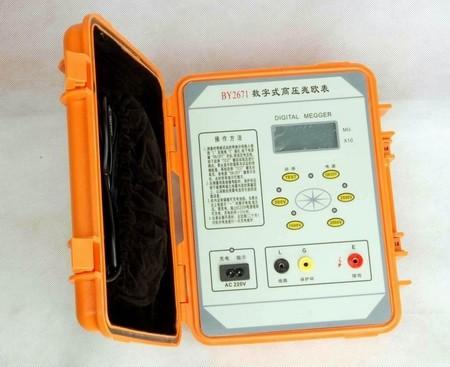

Multifunction Megger Insulation Tester 5KV Digital Insulation Resistance Tester
Multifunction Megger Insulation Tester 5KV Digital Insulation Resistance Tester
Specifications
Place of Origin :
Wuhan Hubei China
Brand Name :
Huaying
Certification :
ISO
Model Number :
Huaying Series
MOQ :
1 Set
Price :
primarytester@126.com
Packaging Details :
Wooden Case
Delivery Time :
7 Working Days
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Name :
Insulation resistance tester
Model :
HY2671
Accuracy :
5%
Output voltage :
500V/1000V/2000V/2500V
Size :
220mm×200mm×105mm
Weight :
<1.4KG
Description

Multifunction Megger Insulation Tester 5KV Digital Insulation Resistance Tester

Product Instruction

1,The instrument working principle

Insulation resistance tester is consisting of the large-scale integrated circuits.

This instrument is with large output power, high short circuit current value, and much output voltage level

(Each model has four kinds of voltage levels).

The working principle is use the self contained battery as a power supply, DC / DC conversion generated to the DC high voltage, and then outflow from the E pole, through the test object to reach the L pole, coming into being a current flowed from E to L pole.

After I / V conversion, complete the operation by the divider, directly display the measured insulation resistance value by the LCD.

<

Model Output voltage level Measurement range Relative error Resolution
2670 100V,250V 1~1999 ≤±5%±1d 0.001MΩ,0.01MΩ
500V,1000V MΩ 0.1MΩ, 1.0MΩ
2671 500V,1000V 1~19990 ≤±5%±1d 0.01MΩ,0.1MΩ,
2000V,2500V MΩ 1.0MΩ,10.0MΩ
2672 500V,1000V 20~1999 ＜±10%±1d 0.01MΩ,0.1MΩ
2500V,5000V GΩ 1.0MΩ
