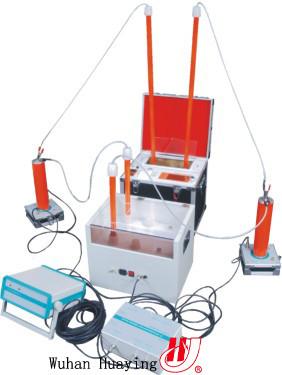

High Voltage Transformer Oil Analyzer Insulating Oil Tester Calibration System JY-100
High Voltage Transformer Oil Analyzer Insulating Oil Tester Calibration System JY-100
Specifications
Place of Origin :
Wuhan Hubei China
Brand Name :
Huaying
Certification :
ISO
Model Number :
JY-100
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
7 Working Days
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Product name :
Insulating Oil Tester Calibration System
Usage :
Transformer Oil/Insulating oil calibration for insulating oil tester
Calibration item 1 :
Breakdown voltage error
Calibration item 2 :
High voltage measurement error
Calibration item 3 :
Voltage rise rate error
Calibration item 4 :
High voltage cut off time measurement
Description

High Voltage Transformer Oil Analyzer Insulating Oil Tester Calibration System JY-100

1. Product Information

Insulating oil tester calibrator system JY-100

2. Equipment Description:

1 Breakdown voltage error calibration for insulating oil tester

2 High voltage measurement error calibration for insulating oil tester

3 Voltage rise rate error calibration for insulating oil tester

4 High voltage cut off time measurement for insulating oil tester

5 High voltage distortion rate measurement

3.Technical Parameters:

1 High voltage measurement: 0-80kv/0-100kv

2 High voltage measurement error: 0.2%RDG+0.02kv

3 High voltage rise rate measurement error < 0.5%RDG+0.005kv/s

4 High voltage distortion rate measurement error <2%

5 Cut off time measurement error <0.08ms

6 Measurement high voltage divider capacity <20pf

7 Power supply: AC220V±10% 50Hz/60Hz Weight < 10kg

8 Environment temperature: 0~50°C Humidity: ≤80%RH
