ISO Approve High Voltage Divider Electric Test Meter 50KV 100KV 150KV 200KV 300KV
ISO Approve High Voltage Divider Electric Test Meter 50KV 100KV 150KV 200KV 300KV
Specifications
Place of Origin :
Wuhan Hubei China
Brand Name :
Huaying
Certification :
ISO
Model Number :
Huaying Series
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
7 Working Days
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Customized service :
Accepted
AC/DC voltage :
50KV/100KV/150KV/200KV/300KV
Warranty :
1 year free and lifelong maintenance
Production time :
7 working days
Power supply :
220V
Accuracy :
1.5%
Description

ISO Approve High Voltage Divider Electric Test Meter 50KV 100KV 150KV 200KV 300KV

Product Name:

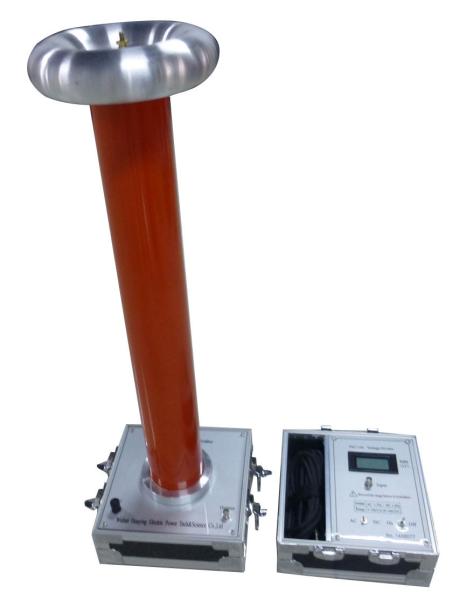

High Voltage Divider FRC

Equipment Description:

FRC series HV divider is applied to measure AC/DC high voltage in metrology department of power system or high voltage test about power distribution.

The voltage ratio of the high-voltage divider K＝1000

Technical Parameters:

Type

FRC-50

FRC-100

FRC-200

FRC-300

Range

(kV)

AC

50

100

200

300

DC

70

140

280

400

Accuracy

AC

1.5%

1.5%

1.5%

1.5%

DC

1.0%

1.0%

1.0%

1.0%

Impedance

R(MΩ)

200

400

800

1200

The use of environmental conditions allowed:

Temperature:0-40℃

Relative humidity:<85%

The size and weight of product

Type FRC-50 FRC-100 FRC-200 FRC-300
Size(mm) 220×220×600 220×220×750 220×220×1400 220×220×1800
Weight(kg) 8 10 18 25

Accessory List:

A high-voltage divider

A low-voltage measuring instrument

A dedicated connection cable

A test report

Warranty: One year for free and lifelong maintainence
