High Accuracy Divider Electrical Test Equipment Digital Meter For Measuring High Voltage
High Accuracy Divider Electrical Test Equipment Digital Meter For Measuring High Voltage
High Accuracy Divider Electrical Test Equipment Digital Meter For Measuring High Voltage
High Accuracy Divider Electrical Test Equipment Digital Meter For Measuring High Voltage
Specifications
Brand Name :
Huaying
Model Number :
Huaying Series
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Test Voltage :
AC/DC 50KV,100KV,150KV,300KV
Accuracy :
AC:1.5% DC:1.0%
Voltage ratio :
1000:1
Input impedance :
10MΩ
Model :
FRC
Customized :
accepted
Description

High Accuracy Divider Electrical Test Equipment Digital Meter For Measuring High Voltage

Product Name:

High Voltage Divider FRC

Features
  • Balance type equal potential shield structure.
  • Fully-sealed insulation cylinder with internal excellent components.
  • High accuracy and linearity, good stability and anti-interference ability.
  • Small size, light weight, easy to carry in the field work.
  • Inner shield anti-interference system.
  • The voltage ratio can be customized, suitable for calibration.

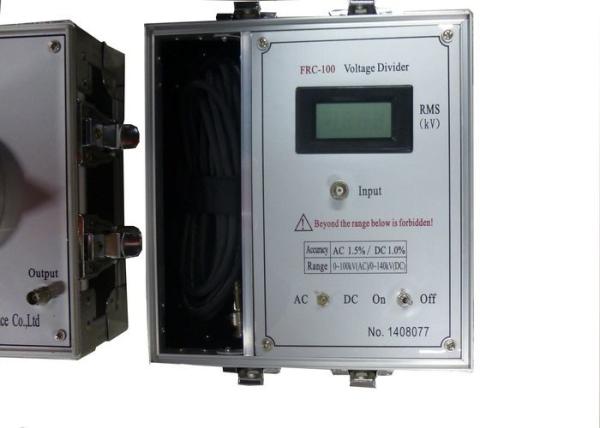

Equipment Description:

FRC digital divider is one kind of universal high-voltage measuring instruments.It can be used in power systems,electrical appliances,electronic equipment manufacturing sector to measure AC high-voltage and DC high-voltage under the industrial frequency.

Technical Parameters:

  • Type

    FRC-50

    FRC-100

    FRC-200

    FRC-300

    Range

    (kV)

    AC

    50

    100

    200

    300

    DC

    70

    140

    280

    400

    Accuracy

    AC

    1.5%

    1.5%

    1.5%

    1.5%

    DC

    1.0%

    1.0%

    1.0%

    1.0%

    Impedance

    R(MΩ)

    200

    400

    800

    1200

Size and Weight:

  • Type FRC-50 FRC-100 FRC-200 FRC-300
    Size(mm) 220×220×600 220×220×750 220×220×1400 220×220×1800
    Weight(kg) 8 10 18 25

Accessories

Digital voltage meter 1 pcs
Voltage divider 1 pcs
Connection cable 1 pcs
Grounding cable 1 pcs
User guide 1 pcs
Factory test report 1 pcs
