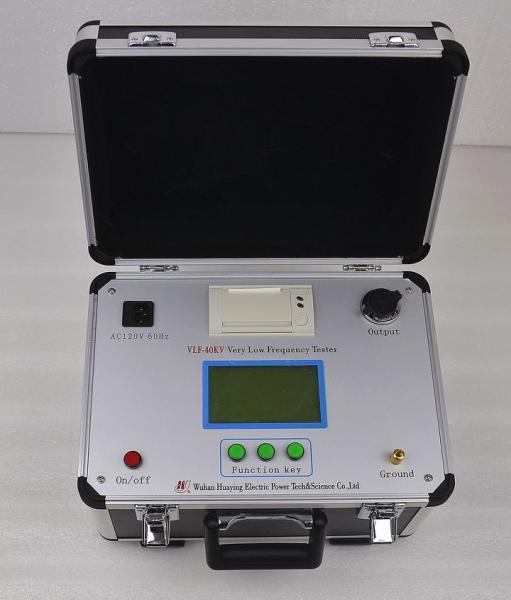

0.1Hz 0.05Hz 0.02Hz Low Frequency VLF Test Set for AC Hipot Cable Test
0.1Hz 0.05Hz 0.02Hz Low Frequency VLF Test Set for AC Hipot Cable Test
Specifications
Brand Name :
Huaying
Model Number :
VLF
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Customize service :
Provided
Warranty :
1 year free and lifelong maintenance
Application :
Very Low Frequency Cable Testing
Usage :
Very Low Frequency Test
Color :
Black
Output frequency :
0.1Hz,0.05Hz,0.02Hz
Description

0.1Hz 0.05Hz 0.02Hz Low Frequency VLF Test Set for AC Hipot Cable Test

Product Name:

Very Low Frequency Tester

Specifications:
1. Input: 220 ± 10% Volts AC, 50/60 Hz, single phase.
2. Output-Voltage. 60KV
3. Output frequency: 0.1Hz, 0.05Hz, 0.02Hz.
4. Stability of frequency: Fluctuation < 0.5%
5. Measurement accuracy: ± 3%.
6. Positive and negative voltage peak errors: ≤ 3%.
7. Voltage waveform distortion: ≤ 5%
8. Construction: In two units: Controller and Booster...
9. Ambient conditions of use: Temperature Indoor and outdoor: -10ºC to + 50ºC.
10. Humidity: ≤ 85%

Models:


Type

Output
Voltage/Current

Load Capacity

Control Unit

Booster

Fuse Tube


Frequency/Capacitance

Dim.
(cm)

Wt
(kg)

Dim.
(cm)

Wt
(kg)

VLF-30/1.1

30KV/20mA

0.1Hz ≤ 1.1uF
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF

28× 37× 22

4

33× 18× 34

25

5A

VLF-40/1.1

40KV/30mA

0.1Hz ≤ 1.1uF
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF

28× 37× 22

4

35× 20× 36

35

6A

VLF-50/1.1

50KV/40mA

0.1Hz ≤ 1.1uF
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF

28× 37× 22

4

37× 24× 39

45

7A

VLF-60/1.1

60KV/50mA

0.1Hz ≤ 1.1uF
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF

28× 37× 22

4

33× 18× 34
33× 18× 34

25+25

10A

VLF-70/0.5

70KV/55mA

0.1 Hz, ≤ 0.5µ F
0.05Hz, ≤ 1.0µ F
0.02Hz, ≤ 2.5µ F

28× 37× 22

4


33× 18× 34
35× 20× 36

25+35

10A

VLF-80/0.5

80KV/60mA

0.1 Hz, ≤ 0.5µ F
0.05Hz, ≤ 1.0µ F
0.02Hz, ≤ 2.5µ F

28× 37× 22

4

33× 18× 34
37× 24× 39

25+45

12A

Important tips:
1. Power supply requirement: AC50Hz, 220V, stability of frequency: fluctuation less than 0.5%
2. When using it, the capacitance of the sample should not exceed the rated capacity of the instrument. The over low capacitance of the sample will affect the output wave form. If the capacitance is less than 0.05μF, the instrument cannot output normally. In this situation, the tester needs to have a 0.05μF compensation capacitor(provided by our company) in parallel connection as an auxiliary output when the sample’s capacitance is less than 0.05μF.
3. When using it, it is prohibited to boost voltage without load, or to connect with resistive load
