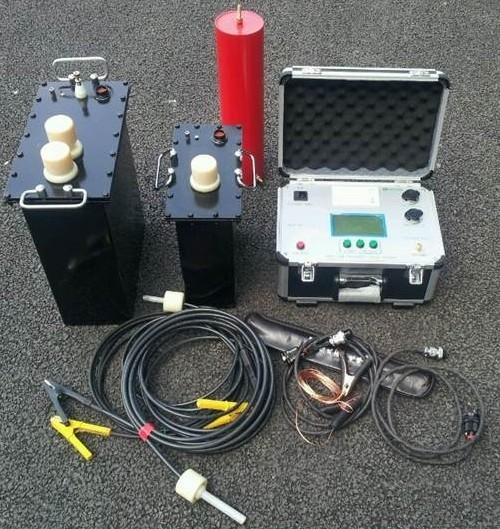

Single Phase Very Low Frequency Hipot Test Equipment 30KV For High Voltage Cable
Single Phase Very Low Frequency Hipot Test Equipment 30KV For High Voltage Cable
Specifications
Place of Origin :
Wuhan Hubei China
Brand Name :
Huaying
Certification :
ISO
Model Number :
VLF
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
7 Working Days
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Voltage :
0~100kV AC Hipot Test
Customize service :
Provided
Voltage waveform distortion :
≤ 5%
Output frequency :
0.1Hz, 0.05Hz, 0.02Hz.
Fluctuation :
< 0.5%
Printer :
Built-in printer
Description

Single Phase Very Low Frequency Hipot Test Equipment 30KV For High Voltage Cable

1. Product Name:

Very Low Frequency Tester VLF-30

2. Equipment Description:

The VLF testers (Generator) are suitable for Testing cables, transformers, switchgear,Rotating machinery, and

other electrical apparatus.

3. Technical Parameters:

1. Input: 220 ± 10% Volts AC, 50/60 Hz, single phase.

2. Output-Voltage. 30KV

3. Output frequency: 0.1Hz, 0.05Hz, 0.02Hz.

4. Stability of frequency: Fluctuation < 0.5%

5. Measurement accuracy: ± 3%.

6. Positive and negative voltage peak errors: ≤ 3%.

7. Voltage waveform distortion: ≤ 5%

8. Construction: In two units: Controller and Booster...

9. Ambient conditions of use: Temperature Indoor and outdoor: -10ºC to + 50ºC.

10. Humidity: ≤ 85%


Type

Output
Voltage/Current

Load Capacity

Control Unit

Booster

Fuse Tube


Frequency/Capacitance

Dim.
(cm)

Wt
(kg)

Dim.
(cm)

Wt
(kg)

VLF-30/1.1

30KV/20mA

0.1Hz ≤ 1.1uF
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF

28× 37× 22

4

33× 18× 34

25

5A

VLF-40/1.1

40KV/30mA

0.1Hz ≤ 1.1uF
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF

28× 37× 22

4

35× 20× 36

35

6A

VLF-50/1.1

50KV/40mA

0.1Hz ≤ 1.1uF
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF

28× 37× 22

4

37× 24× 39

45

7A

VLF-60/1.1

60KV/50mA

0.1Hz ≤ 1.1uF
0.05Hz ≤ 2.2uF
0.02Hz ≤ 5.5uF

28× 37× 22

4

33× 18× 34
33× 18× 34

25+25

10A

VLF-70/0.5

70KV/55mA

0.1 Hz, ≤ 0.5µ F
0.05Hz, ≤ 1.0µ F
0.02Hz, ≤ 2.5µ F

28× 37× 22

4


33× 18× 34
35× 20× 36

25+35

10A

VLF-80/0.5

80KV/60mA

0.1 Hz, ≤ 0.5µ F
0.05Hz, ≤ 1.0µ F
0.02Hz, ≤ 2.5µ F

28× 37× 22

4

33× 18× 34
37× 24× 39

25+45

12A
