Universal Relay Test Set 3 Phase Relay Protection Tester for Second Injection
Universal Relay Test Set 3 Phase Relay Protection Tester for Second Injection
Specifications
Brand Name :
Huaying
Model Number :
HYJB-PC
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Warranty :
1 year free and lifelong maintenance
Feature :
3 phase relay testing
Empty contact :
1~20mA, 24v
Power contact access :
“0”:0~ +6V; “1”:+11 V~ +250V
Size :
400×300×180mm³
Weight :
22kg
Description

Universal Relay Test Set 3 Phase Relay Protection Tester for Second Injection

Product Name:

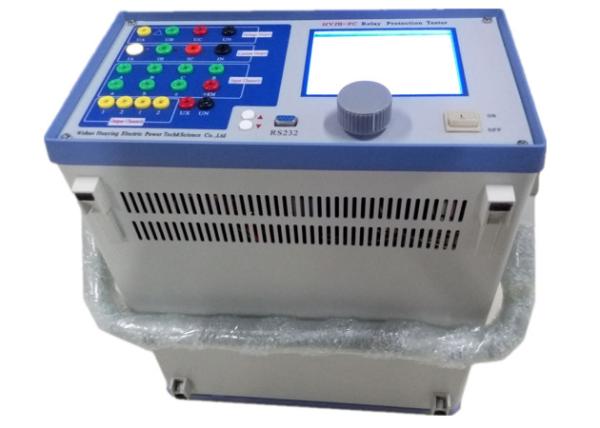

HYJB-PC Universal Relay System Tester

Introduction:

HYJB-PC is applied to test the relay unit in relay protection system. At the same time HYJB-PC could be considered as a universal three phase AC/DC voltage source or current source.

Technical index:

1) Max AC current output 30A at per phase limited in 10s, 90A at three phases in parallel limited in 10s, Frequency 20~1000Hz, Continuous current output 10A at per phase , Capacity 420VA at per phase
2) Max DC continuous current output ±10 at per phase, maximum voltage 20V, 30A output at three phase in parallel
3) Max AC voltage output 120V at per phase, 240V at phase to phase, Frequency 20~1000Hz, capacity 80VA at per phase, 100VA at phase to phase
4) Max DC voltage output ±160V at per phase, ±320V at phase to phase, capacity 70VA
5) Time counter 0.1ms~9999s, error < 0.1ms
6) AC current and voltage error <0.5%RDG+0.05%FS
7) DC current error<0.5%RDG+0.05%FS, DC voltage error 1%RDG+0.1%FS
8) Binary input: Active node 0~250V, 0~6V for “0”, 6~250V for “1”, passive node: 20mA max
9 Binary output: DC 220V/0.2A, AC 220V/0.5A
10) Power supply:AC220V ± 10%, 50Hz/60Hz
11) Environment temperature: 0~50°C
12) Humidity: ≤85%RH
13)Weight:<18KG

Features:

1) AC current and voltage based protection relay unit test

2) DC current and voltage based protection relay unit test

3) Frequency protection relay unit test

4) Harmonic protection relay unit test

5) Differential protection relay unit test

6) Zero-sequence protection relay unit test

7) Distance protection relay unit test

8) Power system network fault simulation

The switch quantity and time measurement

HYJB-PC note
Switch parameters input 7 ways

Empty contact: 1~20mA, 24v

Power contact access:“0”:0~ +6V; “1”:+11 V~ +250V
Switch parameters output 2 couples DC:220V/0.2A;AC:220V/0.5A
Time measurement

Measuring range: 0.1ms ~ 9999s

measuring accuracy: 0.1ms

Volume and weight

HYJB-PC
Appearance and size 400×300×180mm³
Weight of a single machine 22kg
Supply power AC 220V±10%,50/60Hz
Environmental temperature -10°C ~ +50°C

Product tags

secondary injection test of relay

,

secondary injection relay test kit

,

relay protection tester
