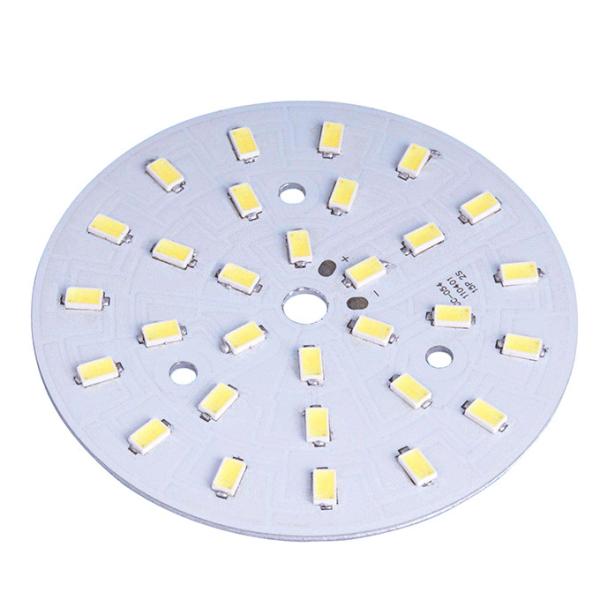

Aluminum Pcb For Led Metal Core Aluminum Pcb Electronic Circuit Board
Aluminum Pcb For Led Metal Core Aluminum Pcb Electronic Circuit Board
Specifications
Brand Name :
HighLeap
Model Number :
PCB Board
Certification :
ISO9001/Iso14001/CE/ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
USD 1-30 piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 piece per week
Delivery Time :
1-15 working days
Packaging Details :
Vacuum Package
Name :
Circuit Board one-stop Service
Board Type :
Aluminum-PCB
Surface Finish :
IPC2-IPC 3
Board Size :
(700x460)
Min Line/Space :
(0.075mm)
PCB Type :
Rigid Pcb
MOQ :
NO moq(1pcs).
Description

Aluminum based PCB board 1.6mm board thickness metal core pcb for LED

rticle Description Capability
Laminate Materials aluminum
Board Cutting Number of layers custom
Min.thickness for inner layers
(Cu thickness are excluded)		 0.003”(0.07mm)
Board Thickness Standard (0.1-4mm±10%)
Min. Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist no more than 7/1000
Copper Weight Outer Cu weight 0.5-4 0z
Inner Cu weight 0.5-3 0z
Drilling Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)
Solder Mask Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Min size 0.006″(0.15mm)
Component Sourcing Yes
Tolerance of PCB ±5%
Max Size of Finish Board 700*460mm
MOQ NO moq (1pcs)
Surface Finish ENIG,immersion silver,immersion tin,OSP.....
PCB Outline Square,circle,irregular(with jigs)
Package QFN,BGA,SSOP,PLCC,LGA
Sub-assembly metal,screen..
Min Line/Space 0.075mm
