M16，6-Core Male & Female Set, Straight Solder Type, Self-Locking Waterproof
M16，6-Core Male & Female Set, Straight Solder Type, Self-Locking Waterproof
M16，6-Core Male & Female Set, Straight Solder Type, Self-Locking Waterproof
M16，6-Core Male & Female Set, Straight Solder Type, Self-Locking Waterproof
M16，6-Core Male & Female Set, Straight Solder Type, Self-Locking Waterproof
M16，6-Core Male & Female Set, Straight Solder Type, Self-Locking Waterproof
M16，6-Core Male & Female Set, Straight Solder Type, Self-Locking Waterproof
M16，6-Core Male & Female Set, Straight Solder Type, Self-Locking Waterproof
Specifications
Payment Terms :
L/C, T/T, Western Union
Mating Method :
Threaded Coupling
Model Number :
M16，6-Core Male & Female Set, Straight Solder Type, Self-Locking Waterproof
MOQ :
100PCS
Delivery Time :
2-9weeks
Ingress Protection Rating :
IP67
Packaging Details :
standard expect package
Brand Name :
HIGH WOOD
Place of Origin :
CHINA
Price :
5＄-50＄
Durability :
≥ 500 mating cycles
Certification :
AS9001
Supply Ability :
100，000pcs per month
Operating temperature range :
-25 ℃ ~ +85 ℃
Description
M16,6-Core Male & Female Set, Straight Solder Type, Self-Locking Waterproof
Product Features:

✅ Excellent resistance to acids, alkalis, chemical cleaners and reagents; resistant to welding sparks, withstand frequent twisting and bending.

✅ Resistant to oil contamination, coolant, lubricants and emulsions; straight female and straight male connector structures available.

Product Specifications:
Rated Current 7A: 2/3/4PIN; 6A:5PIN; 5A: 6/7/8/12/14/16/19/24PIN
Rated Voltage ≤200V: 2/3/4/5/6PIN; 60V: 7/8/12/14/16/19/24PIN
Contact Resistance ≤7Ω: 2/3/4/5/6/7/8PIN; ≤10Ω: 12/14/16/19PIN; ≤12Ω: 24PIN
Insulation Resistance ≥1500Ω: 2/3/4/5/6PIN; ≥1000Ω: 7/8/12/14/16/19/24PIN
Solder Cup Hole Diameter 1.0mm: 2/3/4/5/6/7/8PIN; 0.8mm: 12/14/16/19PIN; 0.6mm: 24PIN
Contact Body Hole Diameter 1.5mm: 2/3/4/5/6/7/8PIN; 1.0mm: 12/14/16/19PIN; 0.8mm: 24PIN
Coupling Method Threaded Locking
Termination Method Soldering
Mating Cycles 500 times
Operating Temperature -25℃ to +85℃
IP Rating IP67

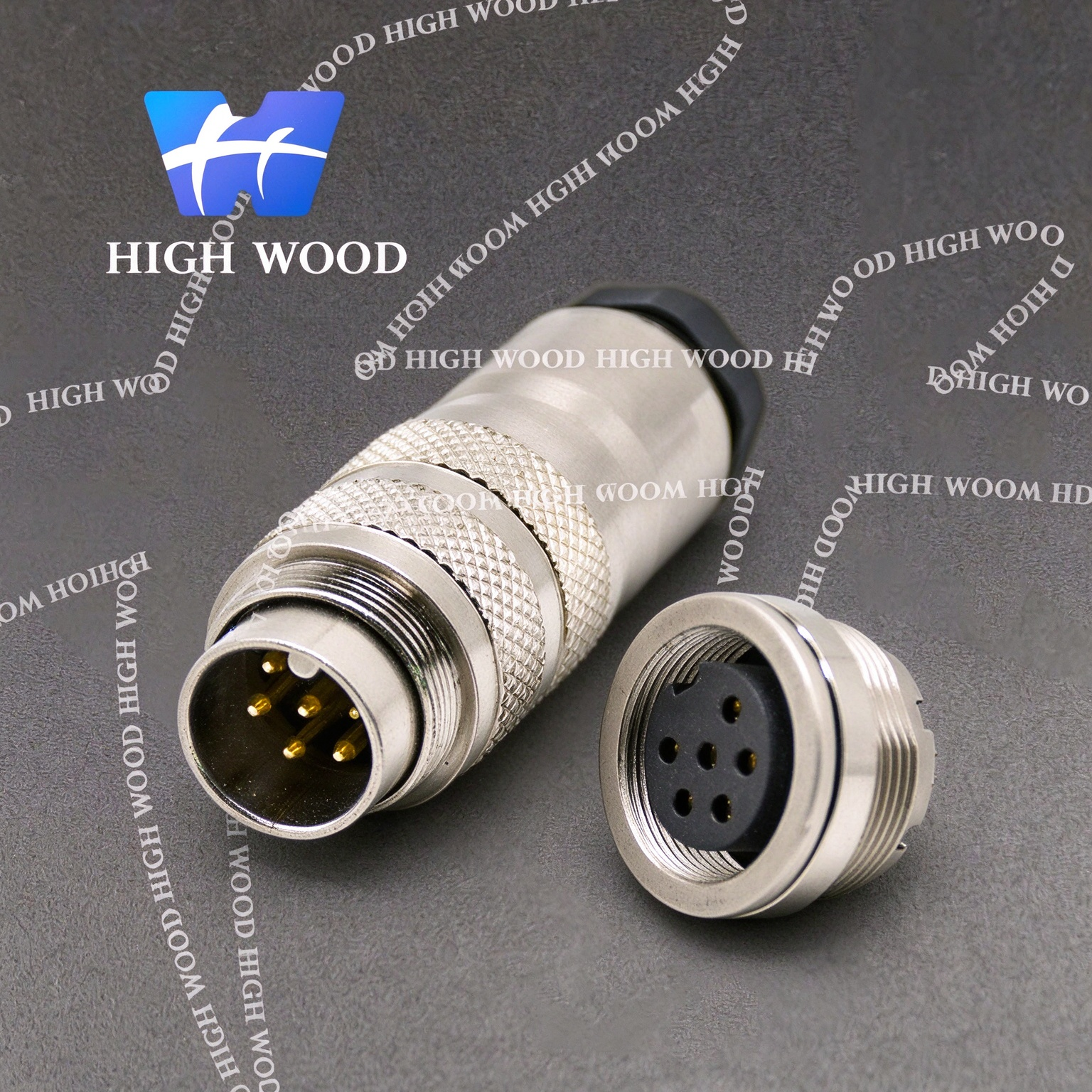

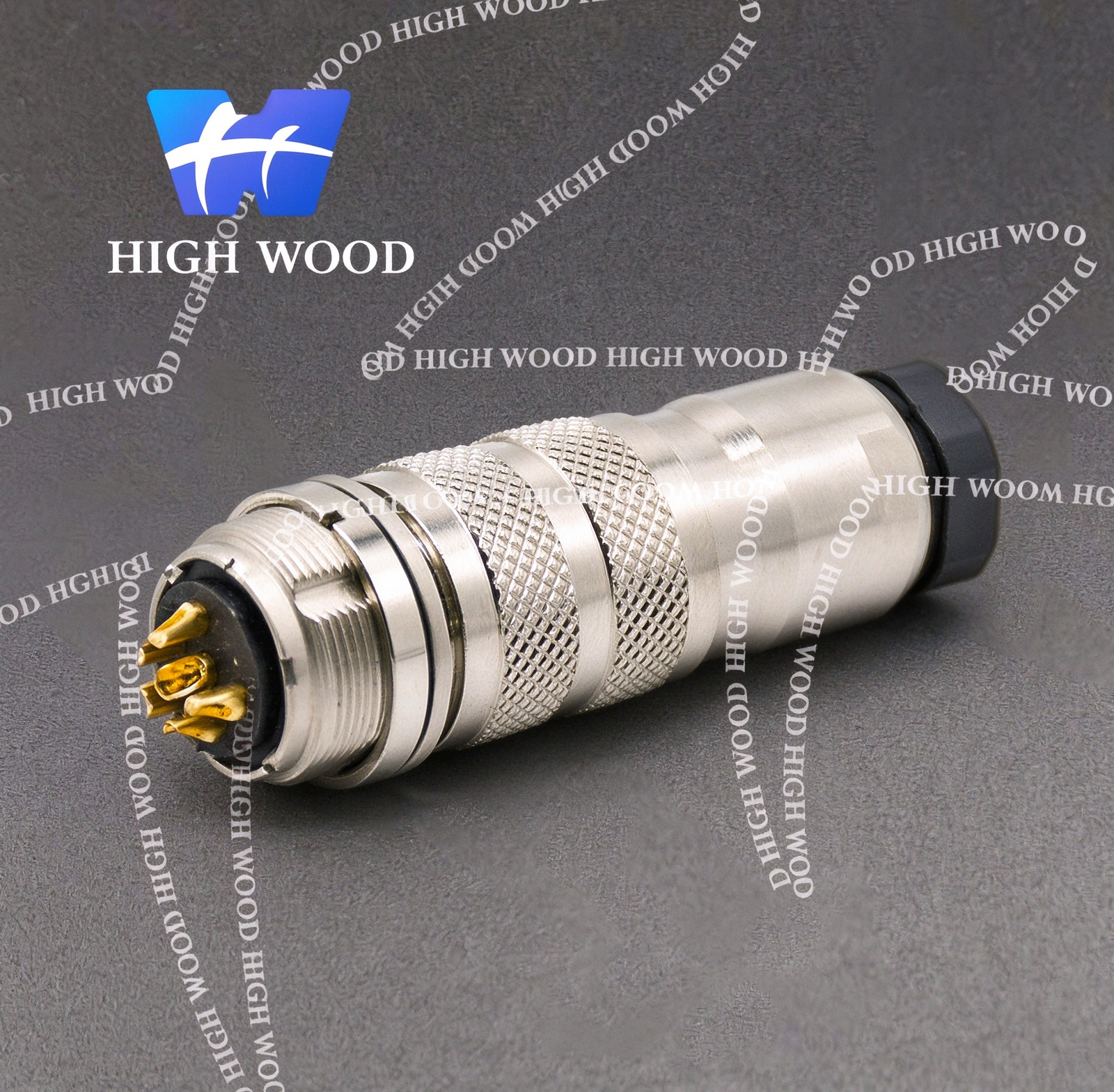

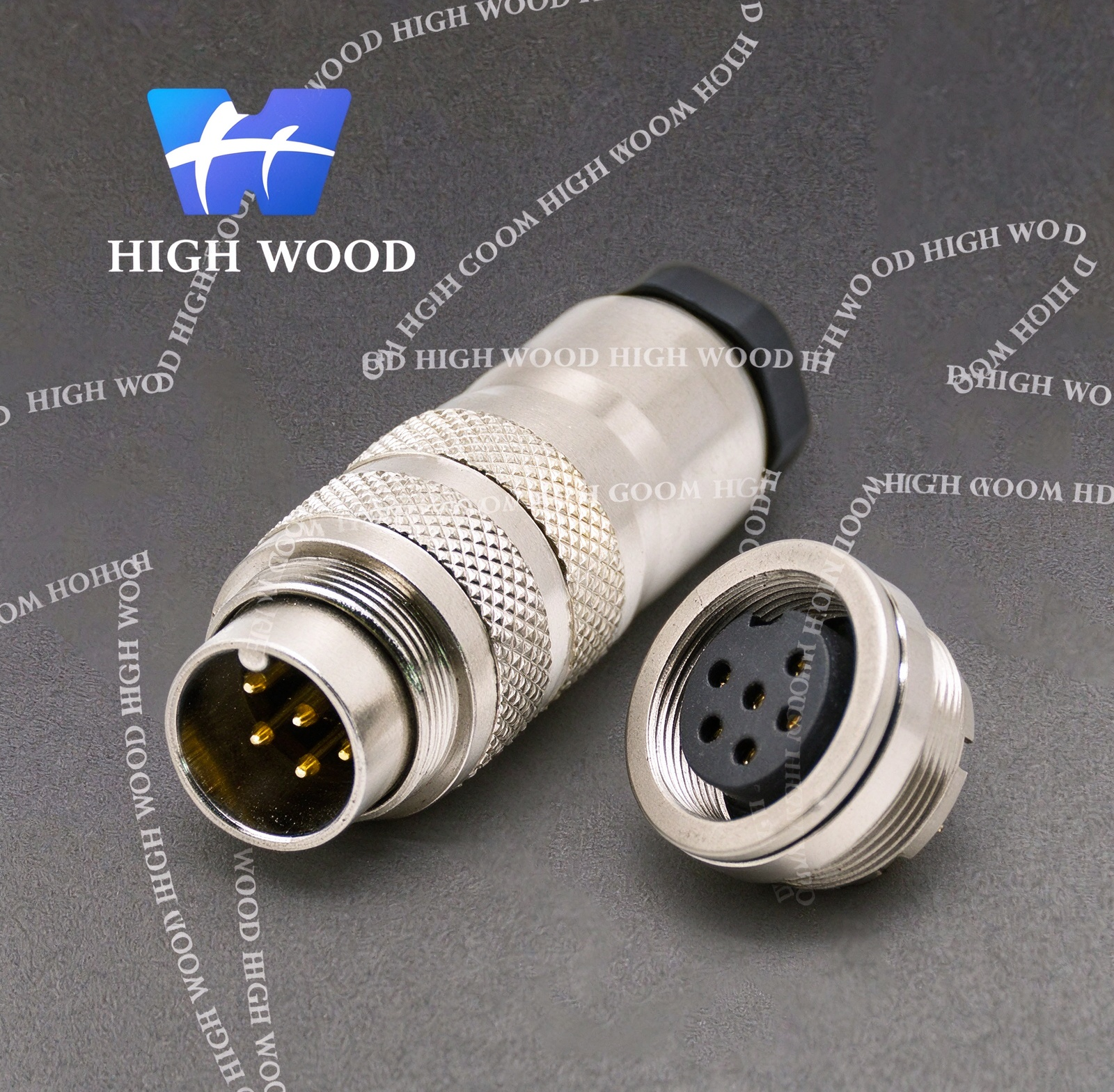

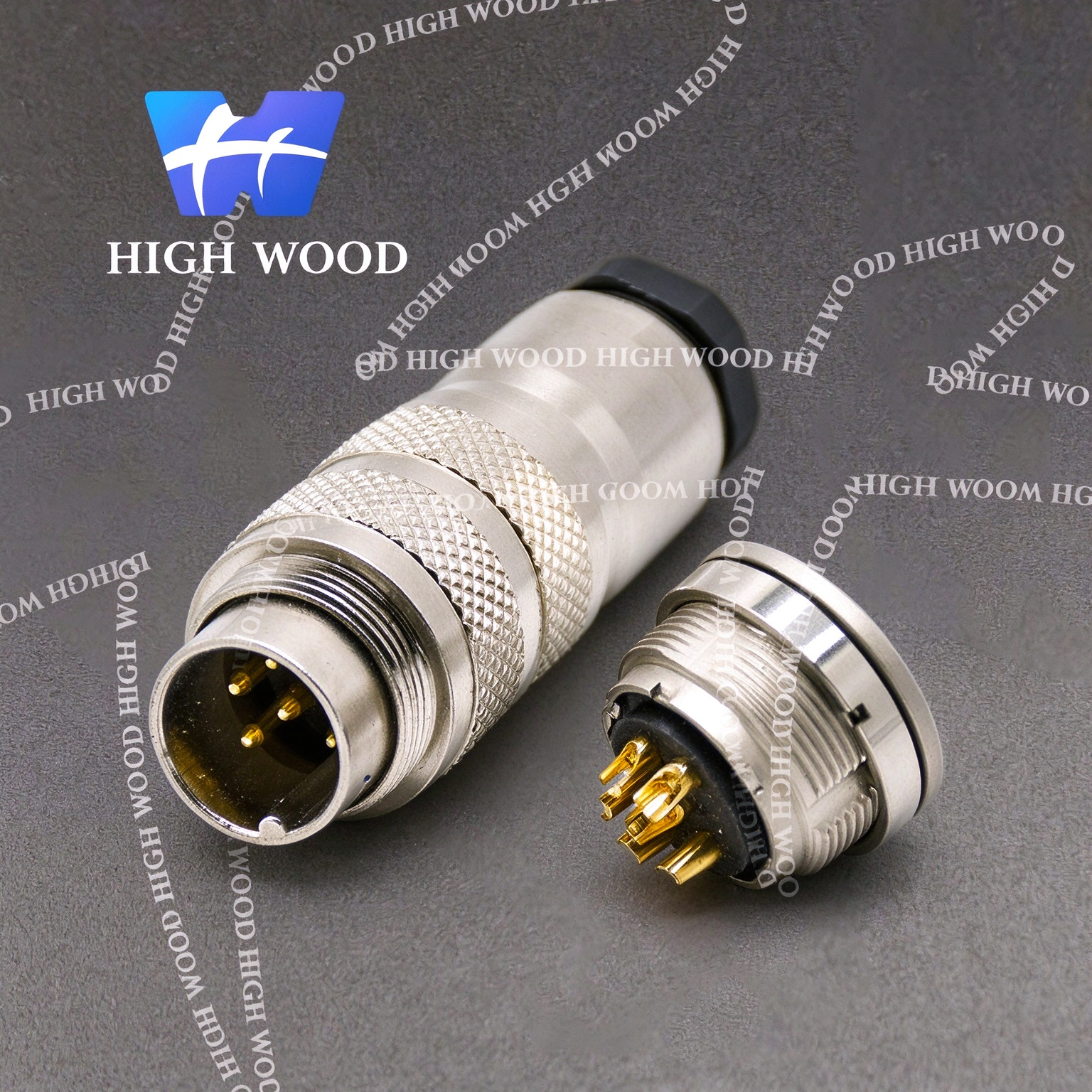

Product showing.



M16，6-Core Male & Female Set, Straight Solder Type, Self-Locking WaterproofM16，6-Core Male & Female Set, Straight Solder Type, Self-Locking WaterproofM16，6-Core Male & Female Set, Straight Solder Type, Self-Locking WaterproofM16，6-Core Male & Female Set, Straight Solder Type, Self-Locking Waterproof
