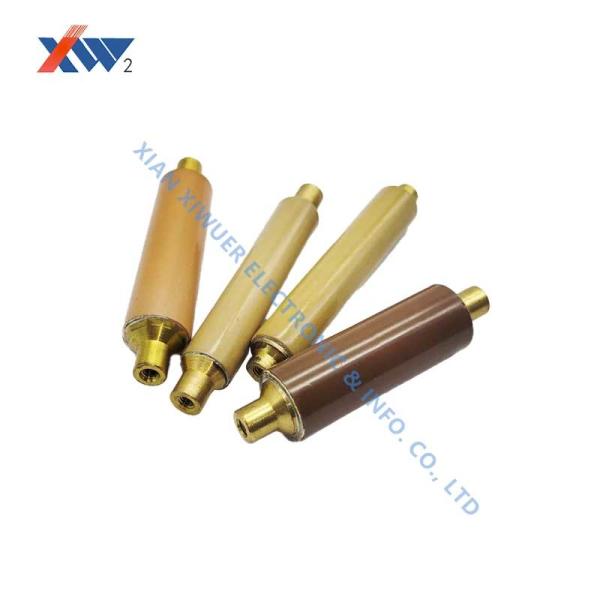

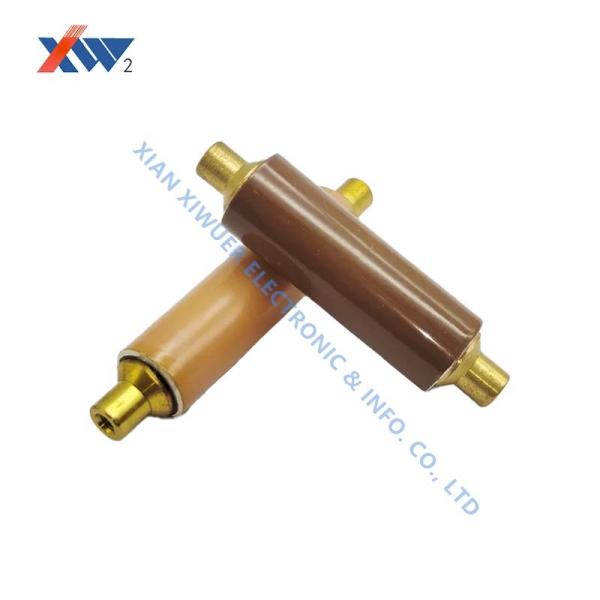

24kV 35pF High Voltage Ceramic Capacitor Core Rod
24kV 35pF High Voltage Ceramic Capacitor Core Rod
24kV 35pF High Voltage Ceramic Capacitor Core Rod
24kV 35pF High Voltage Ceramic Capacitor Core Rod
24kV 35pF High Voltage Ceramic Capacitor Core Rod
24kV 35pF High Voltage Ceramic Capacitor Core Rod
Specifications
Brand Name :
XIWUER
Model Number :
24kv 35pF
Certification :
ISO9001,ISO14001,ISO45001
Place of Origin :
XIAN, CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
8,000,000 a year
Delivery Time :
5-7 days
Packaging Details :
Carton
Rated Voltage :
24kVAC
Nominal Capacitance(pF) :
35
Nominal Capacitance RangeTest Frequency:1kHz+20%TestVoltage :
1V+0.2V:28~42
Withstand Voltage(In the insulating oil) :
70kVAC/5min
Partial Discharge :
26.4kVAC≤4pC
Lightning Impulse kV1.2/5μs :
125
Description

高压陶瓷电容器芯棒24kv 35pF



特性:
额定电压:24kVAC
标称电容(pF):35
标称电容范围测试频率:1kHz+20% 测试电压:1V+0.2V:28~42
耐压(在绝缘油中):70kVAC/5min
局部放电:26.4kVAC≤4pC
雷电冲击kV1.2/5μs:125

应用领域:
带电显示装置
用于10kV～40.5kV电力系统,实时指示高压导线,断路器(如SF6断路器,真空断路器),避雷器,互感器等设备的运行状态,确保操作人员的安全.

典型参数:电容范围为10pF–230pF(例如,24kV时为90pF),耐受电压为68kV(工频)和125kV(雷电冲击).


注意事项:

无特殊说明时,1.1倍额定电压下的局部放电(PD)不超过5pC.符合DL/T538-2006<高压存在性指示器>标准.
尺寸可根据客户要求定制.
特别注意:防止产品损坏,受潮和污染.
符合JBT10305-2001<3.6kV～40.5kV用户侧高压设备用有机材料支柱绝缘子技术条件>标准.
海拔100米以下或高海拔地区,请在订单备注中注明.
