24kV 50pF High Voltage Ceramic Capacitor Core Rod
24kV 50pF High Voltage Ceramic Capacitor Core Rod
24kV 50pF High Voltage Ceramic Capacitor Core Rod
24kV 50pF High Voltage Ceramic Capacitor Core Rod
24kV 50pF High Voltage Ceramic Capacitor Core Rod
24kV 50pF High Voltage Ceramic Capacitor Core Rod
Specifications
Brand Name :
XIWUER
Model Number :
24kv 50pF
Certification :
ISO9001,ISO14001,ISO45001
Place of Origin :
XIAN, CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
8,000,000 a year
Delivery Time :
5-7 days
Packaging Details :
Carton
Rated Voltage :
24kv 50pF
Nominal Capacitance(pF) :
50pF
Nominal Capacitance RangeTest Frequency:1kHz+20%TestVoltage :
1V+0.2V:45~50
Withstand Voltage(In the insulating oil) :
70kVAC/5min
Partial Discharge :
26.4kVAC≤10pC
Lightning Impulse kV1.2/5μs :
125
Description

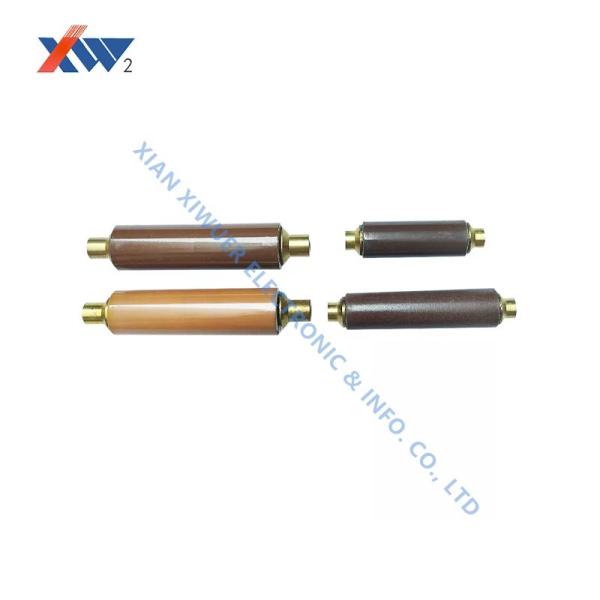

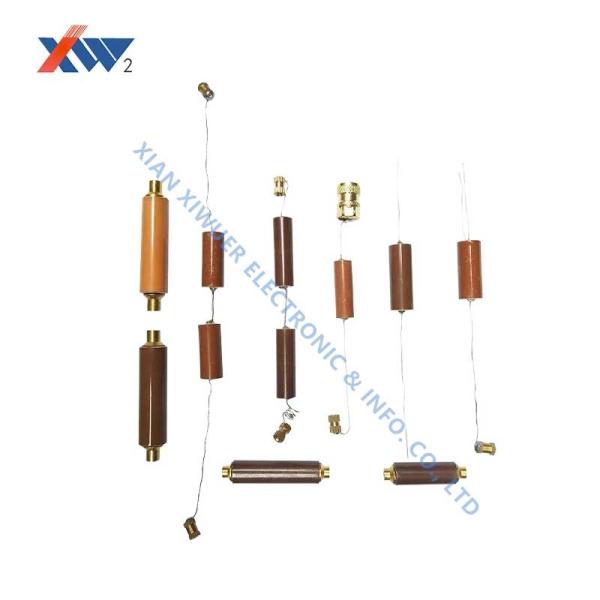

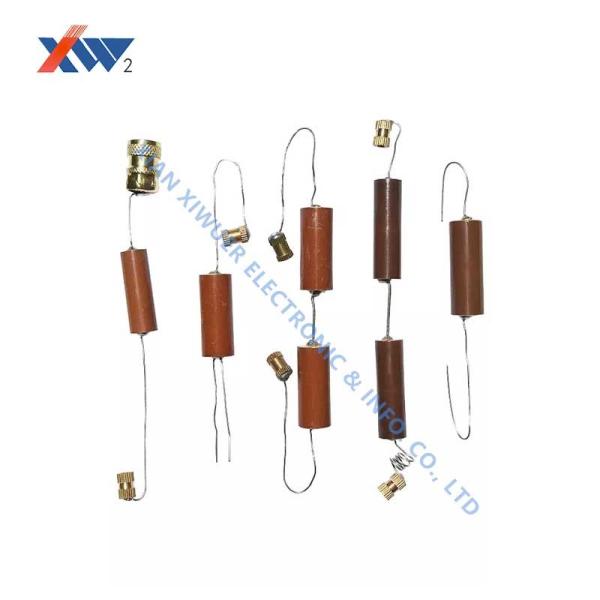

High voltage ceramic capacitor core rod 24kv 50pF



Feature:
Rated Voltage:24kVAC
Nominal Capacitance(pF):50
Nominal Capacitance RangeTest Frequency:1kHz+20%TestVoltage:1V+0.2V:45~50
Withstand Voltage(In the insulating oil):70kVAC/5min
Partial Discharge:26.4kVAC≤10pC
Lightning Impulse kV1.2/5μs:125

Application Areas:

Vacuum Interrupter (Circuit Breaker Core)
Metalized ceramic core rods (e.g., alumina-based) are used to manufacture the vacuum interrupter cavity, providing an airtight seal and electrical insulation, enabling high-voltage current interruption. Applications include mining circuit breakers and generator protection systems.

Live Display Device
Used in 10kV–40.5kV power systems, it provides real-time indication of the operating status of high-voltage conductors, circuit breakers (such as SF6 circuit breakers and vacuum circuit breakers), lightning arresters, or instrument transformers, ensuring operator safety.

Typical Parameters: Capacitance ranges from 10pF–230pF (e.g., 90pF at 24kV), with a withstand voltage of 68kV (power frequency) and 125kV (lightning impulse).


For Instructions:

PD not more than 5pC at 1.1 times rated voltage without special instructions. Comply with the standard DL /T538-2006(High Voltage Presence Indication Device).
The dimensions can be made according to customer requirements.
Special attention: Prevent the product from damage, moisture and contamination.
Comply with the standard JBT10305-2001(Technical conditions for post insulator of organic material in the 3.6kV40.5kV high voltage equipment at customers end).
For areas below 100 meters or in high altitude areas, please indicate it in the order notes.
