Outdoor Automatic Circuit Recloser with Embedded Pole and High Voltage Ceramic Capacitor for 11KV-38KV Featuring Vertically Integrated Manufacturing and Spring Mechanism
Outdoor Automatic Circuit Recloser with Embedded Pole and High Voltage Ceramic Capacitor for 11KV-38KV Featuring Vertically Integrated Manufacturing and Spring Mechanism
Outdoor Automatic Circuit Recloser with Embedded Pole and High Voltage Ceramic Capacitor for 11KV-38KV Featuring Vertically Integrated Manufacturing and Spring Mechanism
Outdoor Automatic Circuit Recloser with Embedded Pole and High Voltage Ceramic Capacitor for 11KV-38KV Featuring Vertically Integrated Manufacturing and Spring Mechanism
Specifications
Brand Name :
XIWUER
Model Number :
15.5KV-Embedded pole
Certification :
ISO
Place of Origin :
XIAN, CHINA
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
300,000 pcs a year
Delivery Time :
15~20 days
Packaging Details :
Custom wooden crates
Description
Outdoor Automatic Circuit Recloser: Embedded Pole
Leading Embedded Pole for Outdoor Automatic Circuit Recloser (ACR) 11KV-38KV with built-in advanced ceramic capacitors instead of film capacitors
Outdoor Automatic Circuit Recloser with Embedded Pole and High Voltage Ceramic Capacitor for 11KV-38KV Featuring Vertically Integrated Manufacturing and Spring Mechanism
Key Features and Benefits
Complete Production Chain for Cost Leadership
  • Vertically Integrated Manufacturing: We control the entire process from components to finished equipment to optimize costs
  • Proprietary Core Technologies: We possess closed bushing casting molds and independent casting capabilities
Industry-Leading Technological Innovations
  • One of the few manufacturers in China capable of mass-producing high-precision high-voltage ceramic capacitors
  • Capacitor Secondary Voltage Module and Adapter Block Technology
  • Complete Primary-Secondary Integration Technology System
  • New Voltage Transformer Design with Power Taps, completely eliminating electromagnetic resonance hazards of traditional voltage transformers
Exceptional Environmental Adaptability
  • Voltage Range from 11 kV to 40.5 kV, compatible with global 50/60 Hz standards
  • Special materials withstand extreme conditions (UV radiation, heavy rain, extreme temperatures)
  • Estimated service life of ≥20 years, confirmed by accelerated aging tests
Mechanical Innovation with Dual Solution
  • Spring mechanism (improved traditional design)
  • Independent three-phase permanent magnet mechanism (industry-leading technology)
Applications
Outdoor automatic circuit recloser
Technical Parameters
Material Properties

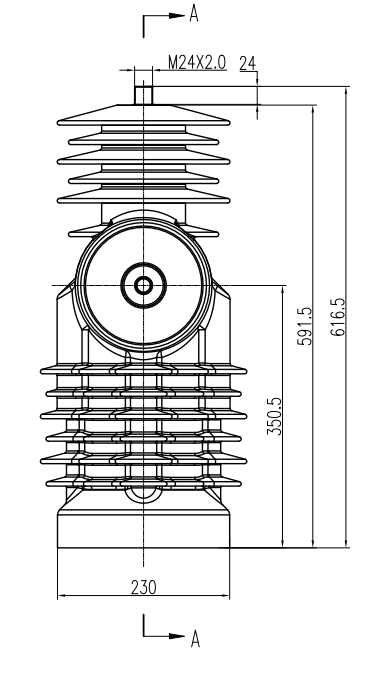

Material water absorption rate Tensile strength Bending strength Breakdown strength L (mm) W (mm) D (mm)
≤0.07% ≥55 MPa ≥100 MPa ≥15 kV/mm 395 230 616.5
Electrical Specifications
Rated voltage Rated frequency Partial discharge Color Power frequency withstand voltage Lightning impulse voltage
15.5kV 50/60Hz ≤5PC@1.2Ur RAL7035 Gray 65kV/1min 125/150kV
