High Voltage Capacitor Power Supply
High Voltage Capacitor Power Supply
Specifications
Brand Name :
XIWUER
Model Number :
LEDZW-12
Certification :
ISO
Place of Origin :
Xian-China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1,000,000 units a year
Delivery Time :
10-15 days
Packaging Details :
Carton
Description
High Voltage Capacitor Power Supply - LEDZW-12
Product Overview

The power supply is a power supply device that directly connects the high voltage end to the device and obtains electrical energy from the output end. It is mainly composed of a capacitor unit and an electromagnetic unit, wherein the electromagnetic unit includes an intermediate transformer and a harmonic elimination circuit.

Technical Specifications
Serial Number Categories Unit Index
1 Output Voltage V 220VAC±10%
2 Output Power W 10
3 Working Temperature ºC -40~+70
4 Capacitor Dimension mm Φ129*330
5 Main Size mm 186*135*75
6 Heat Dissipation Structure - Insulating Resin Potting
7 Package Structure - Plastic & Metal Shell
8 Waterproof Level - IP67

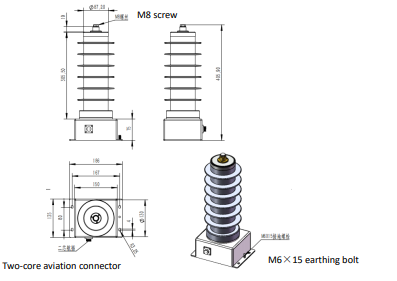

Diagram
High Voltage Capacitor Power Supply
Performance Indicators
  • Replaces traditional transformers, 27V AC/DC power output resists resonance, and voltage output is stable.
  • No partial discharge throughout the 0-14.4kV voltage boost and buck process.
  • Can withstand 75kV ±150 high-intensity lightning strikes.
  • Power range: 5-25W; AC/DC output voltage: 24V-40V AC/DC (optional design).
