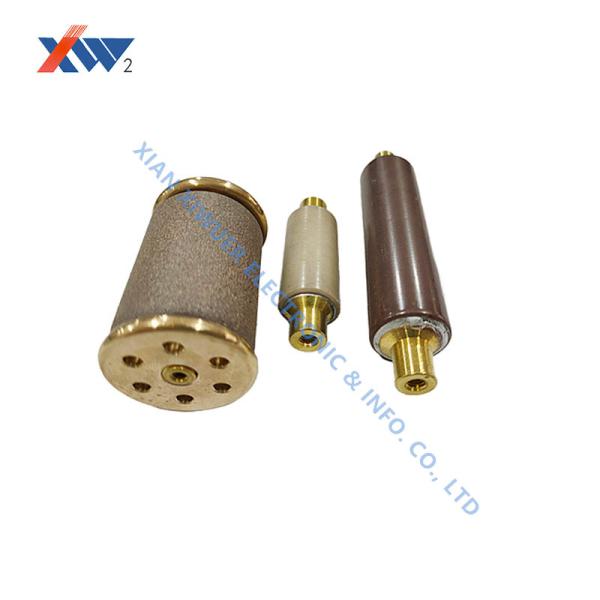

ODM 24KV 38PF Voltage Indicator High Voltage Ceramic Capacitor 3.6KV 40.5KV rod ceramic capacitor for lightning arrestor applications.

The Live-Line Indicator consists of a high voltage AC-rated capacitor connected in series with a neon indicator between phase and earth lines (Figure 1). An optional higher value, low voltage-rated capacitor may be added in parallel with the neon (Figure 2). This system serves dual purposes: indicating live connections to operators and enabling re-routing systems during inadvertent disconnections.

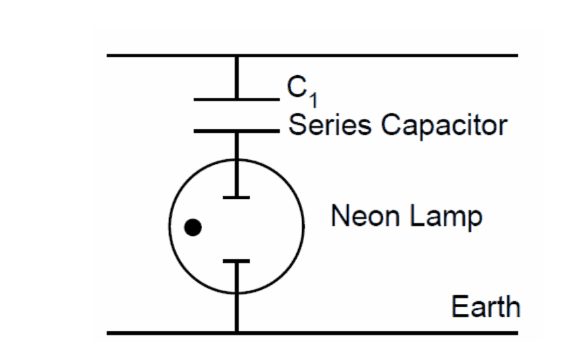

Figure 1: Basic Circuit Configuration

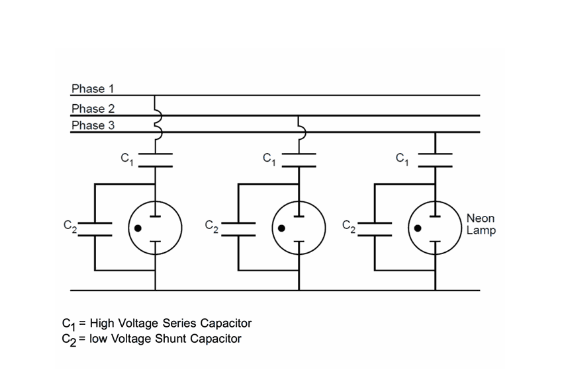

Figure 2: Enhanced Circuit with Parallel Capacitor

Designed for voltage presence indication and fault detection on power frequency high voltage distribution switchgear (6.6kV-36kV systems). The capacitor connects directly to the HV line, passing a small current that illuminates a front-panel neon lamp or feeds sensing circuits for supply failure monitoring. Typically contained within resin mouldings customized by switch manufacturers.

Xian Xiwuer Electronic & Info. Co., Ltd., located in Beiguan, Xi'an City, covers 4,000 square meters with 2,300 employees including 580 technical personnel (135 engineers, 21 senior engineers). With total assets of 315 million yuan and fixed assets of 137 million yuan, we are a large-scale enterprise specializing in electronic components production.

• Varistors & SPD
• High Voltage Ceramic Capacitors
• Capacitive Voltage Dividers
• Thermistors

Our main production lines and testing equipment are imported from Japan, the United States, Belgium, and Switzerland. Annual production capacity reaches 5 million pieces for leading products and 150 million pieces respectively, achieving approximately 10% and 30% market share in China. Our varistors and SPDs enjoy high international reputation, exporting to Japan, USA, Hong Kong, South Korea, Spain, and India.

We maintain leading product quality, technical capability, and model integrity. Our products hold CCEE, UL, VDE, and TUV certifications. Since establishing our ISO9000 quality system in 1992, we passed ISO9002 certification in 1994 and ISO9001 certification in 2000, becoming the first Northwest China company in our industry to achieve ISO9000 certification. We also maintain ISO18000 certification.

We deliver satisfied goods and services with competitive pricing and short delivery times, backed by excellent quality assurance, technical development capabilities, and rich manufacturing experience.
