ZXJYD-IIY insulating oil dielectric strength tester
ZXJYD-IIY insulating oil dielectric strength tester
ZXJYD-IIY insulating oil dielectric strength tester
ZXJYD-IIY insulating oil dielectric strength tester
ZXJYD-IIY insulating oil dielectric strength tester
ZXJYD-IIY insulating oil dielectric strength tester
Specifications
Brand Name :
GDZX
Model Number :
ZXJYD-IIY
Certification :
ISO9001
Place of Origin :
china
MOQ :
1
Price :
$1600.00- $3000.00 / Sets
Payment Terms :
MoneyGram,Western Union,T/T,L/C
Supply Ability :
1200/Sets per Year
Delivery Time :
8-15 work days
Packaging Details :
export standard wooden box
Booster Capacity :
1.5 kVA
Boost speed :
0.5kV/s-5.0kV/s (increment every 0.5) 10 levels are available
Output voltage :
0～100 kV (optional)
Voltage Accuracy :
(2% reading + 2 words)
Power distortion rate :
＜1%
Electrode gap :
Standard 2.5 mm
Number of tests :
6 times (1-9 times are optional)
Description

Introduction:

ZXJYD-IIY insulating oil dielectric strength tester is a high-accuracy, fully digital industrial instrument developed by all scientific research and technical personnel of our company, based on the relevant standards and regulations of insulating oil testing, and leverages its own advantages. After many on-site tests and long-term unremitting efforts, it has carefully developed and developed high-accuracy, fully digital industrial instruments. The instrument is easy to operate and has a beautiful and elegant shape. Since fully automatic digital microcomputer control is adopted, the measurement accuracy is high, the anti-interference ability is strong, and the safety and reliability are safe and reliable.

Features:

1. The instrument adopts a large-capacity microcontroller to work stably and reliably.

2. The instrument has temperature, humidity and clock display functions, and can customize infrared oil temperature measurement.

3. The instrument has a wide range of watchdog circuit to eliminate crashes;

4. A variety of standard choices, the instrument program is equipped with GB/T507-1986, GB/T507-2002, DL429.9, IEC156 and self-programming operations, which can adapt to a variety of choices from different users;

5. The instrument oil cup is made of special glass and polymer materials, finely processed to eliminate oil leakage and corrosion;

6. The instrument's unique high-voltage end sampling design allows the test value to enter the A/D converter directly, avoiding errors caused in the analog circuit, and making the measurement results more accurate;

7. The instrument has protection functions such as overcurrent, overvoltage, short circuit, etc., and has extremely strong anti-interference ability and good electromagnetic compatibility;

8. It can be switched at will in Chinese and English to meet any customer needs;

9. The instrument itself has data analysis function to assist staff in determining the quality of the oil; 10. USB or RS232 data transmission (optional);

Product parameters:

Booster Capacity

1.5 kVA
Boost speed 0.5kV/s-5.0kV/s (increment every 0.5) 10 levels are available
Output voltage 0～100 kV (optional)
Voltage Accuracy (2% reading + 2 words)
Power distortion rate

＜1%
Electrode gap Standard 2.5 mm
Number of tests 6 times (1-9 times are optional)
Rest time 900S (0-9000 S optional)
Interval still time 300S (0-900S optional)
Stirring time 15S (0-250S optional)
External dimensions 420mm in length; 360mm in width; 360mm in height
Instrument weight

36kg
Ambient temperature

0～40℃
Relative humidity

≤85%
Working power supply

AC 220V(1 ± 10%)
Power supply frequency

50 Hz (1 ± 10%)
Power consumption

＜200 W

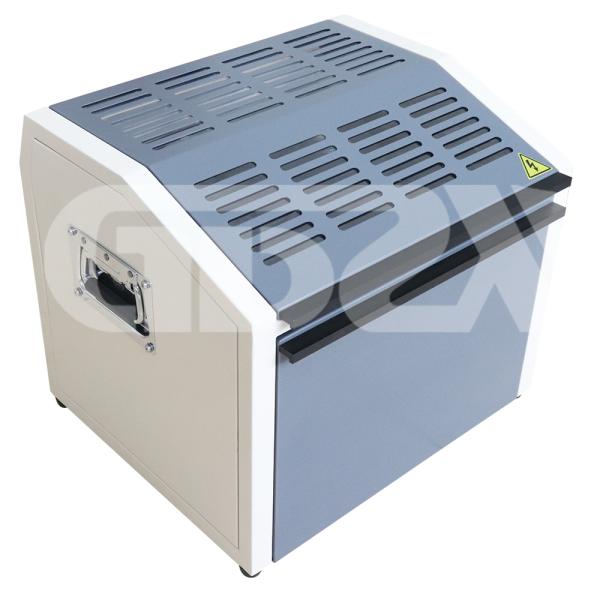

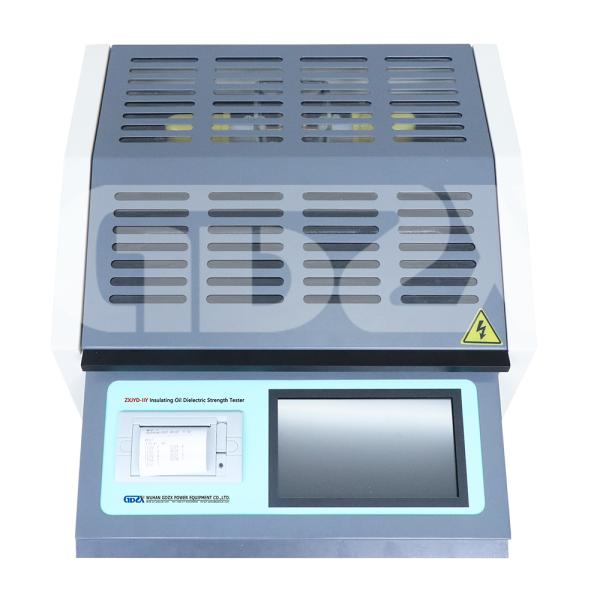

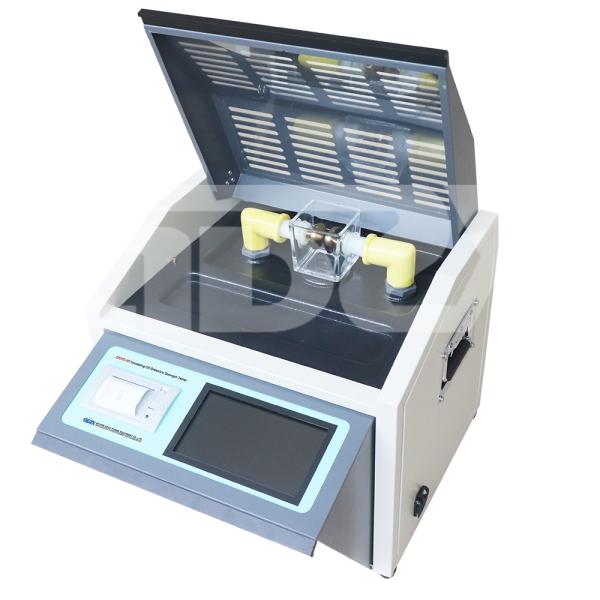

Product Pictures:

Packaging & Shipping


Packaging & Shipping

(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.

Company Information

Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment. Integrating design , production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.


Our Services

Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.




FAQ

1.Q: Are you trading company or manufacturer?
A: We are manufacturer.

We have R&D department, OEM& ODM services available.


2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.


3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.


4.Q: What is your term of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 40% T/T in advance, balance before shipment.


5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T, PayPal, Western Union, Money Gram, Cash etc.


6.Q: Will you provide OEM service?
A: OEM & ODM services available


7.Q: How long is the product warranty?
A: 1 year.
