ZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester
ZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester
ZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester
ZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester
ZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester
ZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester
ZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester
ZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester
Specifications
Brand Name :
GDZX
Model Number :
ZX-BZK
Certification :
ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
US $3785.00-$6596.00/SET
Payment Terms :
L/C,T/T,Western Union,MoneyGram,D/A,D/P,WeChat,Paypal
Supply Ability :
1200sets/year
Delivery Time :
7-20 work days
Packaging Details :
Packing wooden case or carton
Product name :
Transformer Short-circuit Impedance Tester
Measurement accuracy :
Voltage, current 0.2%
Power :
COSφ>0.1 0.5%; COSφ≤0.1 1.0%
Power supply :
AC220V±10%,50Hz±1Hz
Impedance :
COSφ>0.1 0.5%; COSφ≤0.1 1.0%
Voltage measurement range :
AC 3V-300V
Internal power supply output range :
voltage 0-250V, current 0-10A
Current measuring range :
AC 0.2A-20A
Working temperature :
-10℃-50℃
Humidity :
0-80%
Dimension :
360*220*150mm
Weight :
about 5kg
Description

110kV 0.2 Class Three Phase Transformer Short-circuit Impedance Tester


Product introduction

Low-voltage short-circuit impedance test is to the most direct way to check the deformation of the winding after transformer suffered from short-circuit current or mechanical collision during transportation and installation, the test is important to help determine whether the transformer can be put into operation, and whether disintegration is necessary for inspection. ZX-BZK transformer short-circuit impedance tester comes with adjustable power output, particularly suitable for 110kV and above main transformer on site measurement.

ZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester

Features


1. With switching power supply, just one time wiring connection can finish measurement for all the windings, no matter it is single phase transformer or three phase transformer

2. Single phase measurement mode. To three phase transformers, each phase short circuit impedance, reactance, inductance can be obtained automatically after three times boosting.

3. Adopts phase locking technology, synchronize sampling AC signal which ensures accuracy

4. current, voltage and power, frequency can be measured at the same time

5. Support external connection with CT/PT to extend measuring range

6. With memory to store data, with printer

7. LCD display with operation menu, data can be read clearly even under direct sunlight
ZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester


Technical Indicators


1.Measurement accuracy Voltage, current 0.2%
2.Power

COSφ>0.1 0.5%; COSφ≤0.1 1.0%

3.Impedance


 COSφ>0.1 0.5%; COSφ≤0.1 1.0%

4.Voltage measurement range


 AC 3V-300V

5.Internal power supply output range


 voltage 0-250V, current 0-10A

6.Current measuring range


 AC 0.2A-20A

7.Working temperature


 -10℃-50℃

8.Humidity


 0-80%

9.Power supply


 AC220V±10%,50Hz±1Hz

10.Dimension


 360*220*150mm

11.Weight


 about 5kg

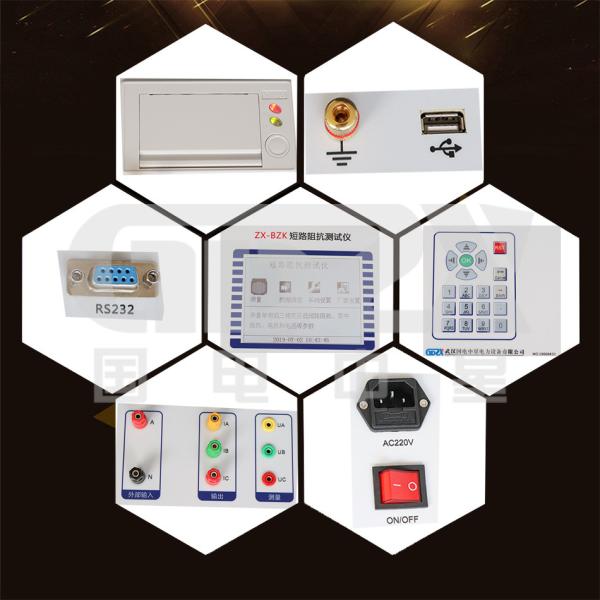

Product pictures

ZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance TesterZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance TesterZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance TesterZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance TesterZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester


Test cases


ZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance TesterZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance TesterZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester







Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.ZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester


Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.ZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester

PACKING AND SHIPPING
(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.ZX-BZK 110kV 0.2 Class Three Phase Transformer Short Circuit Impedance Tester
