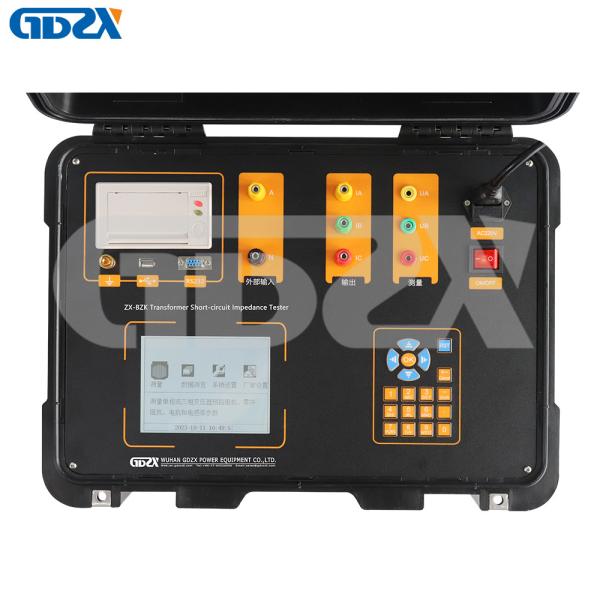

ZX-BZK LV Short Circuit Impedance And Winding Distortion Tester For Transformer
ZX-BZK LV Short Circuit Impedance And Winding Distortion Tester For Transformer
ZX-BZK LV Short Circuit Impedance And Winding Distortion Tester For Transformer
ZX-BZK LV Short Circuit Impedance And Winding Distortion Tester For Transformer
ZX-BZK LV Short Circuit Impedance And Winding Distortion Tester For Transformer
ZX-BZK LV Short Circuit Impedance And Winding Distortion Tester For Transformer
ZX-BZK LV Short Circuit Impedance And Winding Distortion Tester For Transformer
ZX-BZK LV Short Circuit Impedance And Winding Distortion Tester For Transformer
Specifications
Brand Name :
GDZX
Model Number :
ZX-BZK
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
2,300USD/PCS
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
1000PCS/MONTH
Delivery Time :
5--8 working days
Packaging Details :
carton
Power supply :
220v/50hz
Display :
LCD
Voltage measurement range :
AC 3V~300V
utline dimension :
360mm*220mm*150mm
Warranty :
1 year
Keyword :
Low voltage short circuit impedance test
Current measurement range :
AC 0.2A~20A
Weight :
5KG
Description

Transformer Low Price Transformer LV Short-Circuit Impedance Measurement and Winding Distortion Tester China Manufacture

Transformer short-circuit impedance tester


Low voltage short circuit impedance test is the identification of operation in the transformer under the impact of short-circuit current, which is the most direct method to check the winding deformation of the transformer affected by mechanical impact in the transportation and installation; it for the judgment of transformer can put into operation has important significance, is one of the examination to determine whether the transformer requirements disintegration
ZX-BZK Transformer short-circuit impedance tester has the internal adjustable power output and do not need the outside pressure regulator, only need to provide 220V power supply can be tested, especially suitable for the field of 110kV level and above the main transformer for low voltage short circuit impedance measurement.




Product Features
Transformer short-circuit impedance tester


1. The tester with adjustable power output, both single-phase and three-phase transformer, can be used to complete all windings of the measurement only need connect the wire once time, testing and wiring simply; inside of the instrument uses a phase-locked loop technology, synchronous sampling AC signal, measurement data is accurate.
2. Test and algorithm is to meet the<< DL/T1093-2008 power transformer winding deformation detection and judgment >>, and automatically calculate the short-circuit impedance, reactance and inductance value of each phase.
3. Test data can be imported into the computer to facilitate further analysis or storage; support external power supply, expand the test power.
4. Through the anti large screen liquid crystal, in the sun can be clearly displayed; all Chinese menu and operation tips, simple and intuitive operation.

Product Parameters

Transformer short-circuit impedance tester


Measurement accuracy: Voltage, Current :0.2class Power:Cos>0.1:0.5 class; Cos≤0.1:1.0class
Impedance:Cos>0.1:0.5 class; Cos≤0.1:1.0class
Voltage measurement range AC 3V~300V
Internal power output range Voltage:0~250V; Current:0~10A
Current measurement range AC 0.2A~20A
Working temperature -10℃~50℃
Working humidity 0~80%
Working power supply AC 220V±10%;50Hz±1Hz
Outline dimension 360mm×220mm×150mm
Weight 5Kg


ZX-BZK LV Short Circuit Impedance And Winding Distortion Tester For TransformerZX-BZK LV Short Circuit Impedance And Winding Distortion Tester For TransformerZX-BZK LV Short Circuit Impedance And Winding Distortion Tester For TransformerZX-BZK LV Short Circuit Impedance And Winding Distortion Tester For Transformer

Packaging & Shipping


Packaging & Shipping

(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.

Company Information

Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment. Integrating design , production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.


Our Services

Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.




FAQ

1.Q: Are you trading company or manufacturer?
A: We are manufacturer.

We have R&D department, OEM& ODM services available.


2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.


3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.


4.Q: What is your term of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 40% T/T in advance, balance before shipment.


5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T, PayPal, Western Union, Money Gram, Cash etc.


6.Q: Will you provide OEM service?
A: OEM & ODM services available


7.Q: How long is the product warranty?
A: 1 year.
