Specifications
Brand Name :
GDZX
Model Number :
ZX-BCS
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD$2,800.00 - $3,500.00 / Sets
Payment Terms :
L/C,T/T,Western Union,MoneyGram,
Supply Ability :
1000sets/year
Delivery Time :
8-15 Work days
Packaging Details :
Packed in wooden case or carton
testing range :
0.8~10000
Test speed :
Finish 3 phase test within 1 Minute
Service temperature :
-5℃ ─ 40℃
Relative humidity :
＜85%
Volume :
410mm×320mm×180mm
name :
transformer turns ratio test
Brand :
GDZX
Weight :
3kg (host)
Description

ZX-BCS Three phase Power Transformer Turns Ratio Meter

Product introduction:

Transformer Ratio Tester is specially designed for three-phase transformer in power system ,especially for transformer of type Z winding and other transformers whose zero-load current is relatively high. The Three phase TTR tester has wide testing range, fast testing speed, favorable repeatability, flexible data processing, convenient connection, complete protection, easy learning and convenient operation.

Testing Z connection Scott/inverse Scott connection Transformer.


Selling Point :

  1. Single phase input, three phase testing source output, Distortion < 0.1%
  2. Measure phase angle between HV & LV side, turns ratio & angle of “Non integral point” transformer
  3. Single-phase and three-phase winding automatic test.
  4. 3 phase turns ratio, phase angle, error, tapping position and value can be measured at one time
  5. Auto identify connecting group number
  6. Testing results displayed in the form of digit and hexagon vector diagram
  7. No external short-circuit needed for measuring Y/ ,/Y transformer
  8. Auto shift connection methods
  9. Testing transformer without nameplate
  10. Ratio and Ratio error in the position of each tapping switch can be gauged quickly, rating input
  11. Two functions of turns ratio measurement and actual operating voltage ratio measurement
  12. 7 inch LCD to display testing data and vector diagram
  13. Small size and light weight, yellow carrying case
  14. Built-in high capacity chargeable lithium battery.



Product Parameters:


1. TTR measurement range: 0.8~10000.


2. High measurement speed: three-phase test can be completed within 40 seconds.


3. Measurement accuracy:

Voltage measurement accuracy on HV side: 0.05%

Voltage measurement accuracy on LV side: 0.1%

Phase angle measurement accuracy: 0.1°

TTR measurement accuracy: 0.1%(0.8-3000)0.2%(3000-10000)


4. Volume: 320mm*240mm*130mm.


5. Weight: 3Kg. (Host)



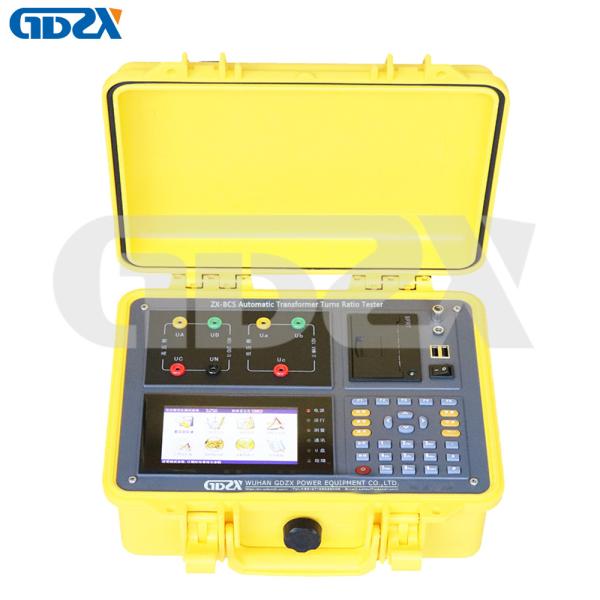

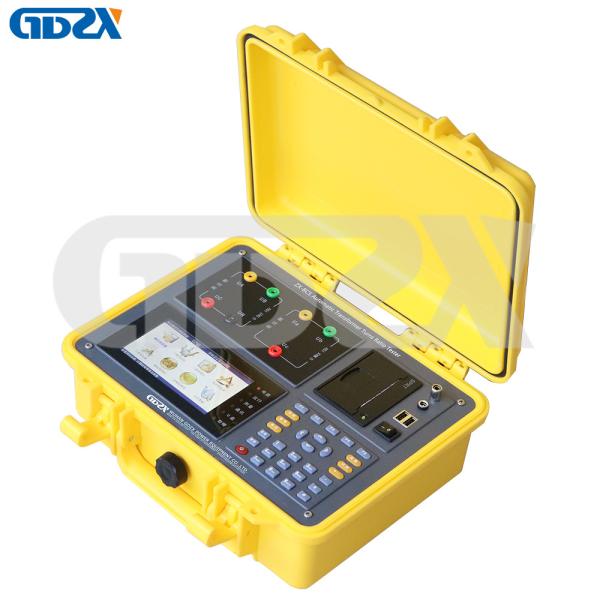

PHOTO SHOW:

ZX-BCS Multifunctional Electric Transformer Turns Ratio Tester TTR 0.9~10000 Three Phase

ZX-BCS Multifunctional Electric Transformer Turns Ratio Tester TTR 0.9~10000 Three Phase




Related product : ZXR- DC Resistence tester


ZX-BCS Multifunctional Electric Transformer Turns Ratio Tester TTR 0.9~10000 Three Phase



Our Sevice :



Professional Consulting Services

Detailed Information About Products

Reasonable Price

Welcome Customer Visit





Signing Contracts And Technical Agreements

Ensure Execution Of Contract And Agreement

Active Communication

Complete After-Sales Service


Professional After-Sale Service Team

1 Year Free Warranty, Life-Long Maintenance

Help Troubleshooting Within 24 Hours

Professional R & D Team
