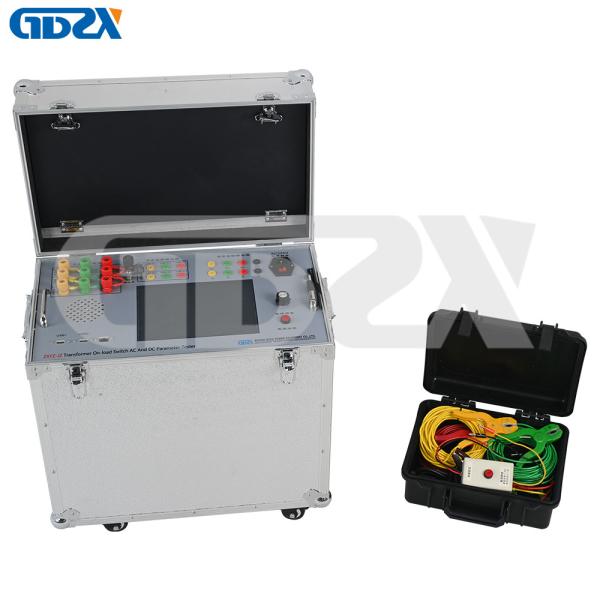

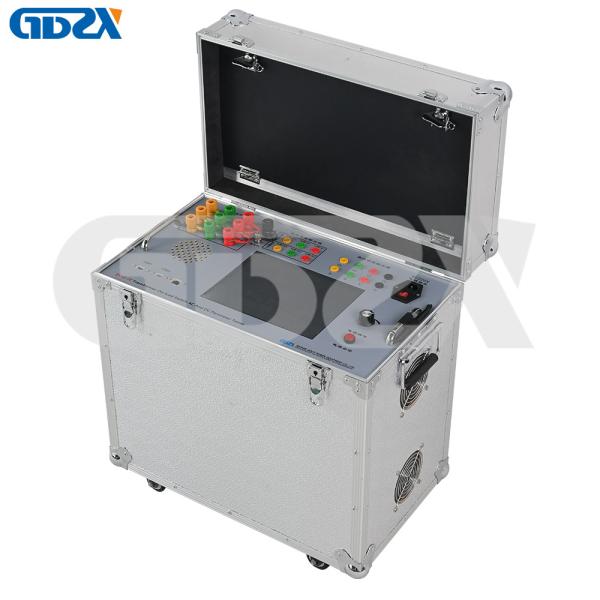

ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment
ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment
ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment
ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment
ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment
ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment
ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment
ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment
ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment
ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment
ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment
ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment
Specifications
Brand Name :
GDZX
Model Number :
ZXYZ-JZ
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Packaging Details :
carton
Voltage range :
0V～500V
Current range :
0mA～100mA、0A～10A
Single phase voltage :
voltage: 220（1±10%）V
Frequency :
50Hz±1Hz
Waveform :
sine wave, distortion≤2%
Description

Transformer On Load Tap Changer Test Equipment AC DC Parameter Tester

Features

1. AC/DC method to test the true transition waveform ( No Filtering processing), suitable for on site test of parameters like transition waveform, transition time, transient resistance and three-phase synchronization.

2. It is easy to judge the on load tap changer when use AC test method. If the total transition waveform is continuous then the working condition is good

3. Can test 10kV~500kV voltage no matter what kind of winding wiring ways.

4. Built in power supply or external connecting power supply. Built in type can output three phase power with simple wire connection, external power supply can make high voltage test, zero sequence test

5. High speed sampling: over 200k/s/channel ( usually DC method speed is 10k/s). Large storage capacity, cache depth up to 8M byte FIFO.

6. With embedded computer and testing software, 10.4” color LCD, touch screen, printer, supporting U disk and USB keyboard and mouse

7. Meet the request of intelligent power grid operation and management system. The on-site operator can connect the sampler with tablet PC and transmit data via internet

8. Can transmit and export the data to office PC for further analysis or editing off line

9. Can work as a digital universal meter

10. Integrated structure, portable, simple wire connection

Technical Indicators

1. Working condition:

1) environment temperature: -10℃～40℃

2) environment humidity: ≤80%

3) altitude: ≤2000m

2. Power supply

1) Single phase voltage: 220(1±10%)V

2) Frequency: 50Hz±1Hz

3) Waveform: sine wave, distortion≤2%

3. Internal output testing power:

1) AC output frequency: 50Hz±0.2Hz(adjustable)

2) AC output voltage range: Three phase four line 0～500V( voltage adjustable)

3) AC output capacity: rating 1000VA

4) AC power source waveform distortion factor:≤3%

5) AC current voltage phase angle: 120°angle difference≯120°±1°

6) DC output current range 0.5A,1A for option

4 Accuracy

1) Synchronous sampling channels: 6

2) Sampling data accuracy: 16 digits

3) Sampling speed: 200 k/s/channel

4) Sampling panel caching depth: 8 M byte FIFO

5) Voltage range: 0V～500V

6) Current range: 0mA～100mA,0A～10A

7) Voltage current accuracy: 0.2

8) Resistance range: 0.5A: 0-20Ω, 1A: 0-10Ω(can be customized)

9) DC resistance accuracy: ±(5%+0.1Ω)

5 Insulation

1) Insulation resistance: power supply input terminal to case ＞20MΩ

2) It can withstand 1500V AC voltage (RMS)
6 Weight: 30kg (exclude accessories), dimension: 530*320*600(mm)


ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment

ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment

ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment

ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment

ZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing EquipmentZXYZ-JZ On Load Tap Changer AC DC Parameter Transformer Testing Equipment


Packaging & Shipping


Packaging & Shipping

(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.

Company Information

Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment. Integrating design , production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.


Our Services

Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.




FAQ

1.Q: Are you trading company or manufacturer?
A: We are manufacturer.

We have R&D department, OEM& ODM services available.


2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.


3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.


4.Q: What is your term of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 40% T/T in advance, balance before shipment.


5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T, PayPal, Western Union, Money Gram, Cash etc.


6.Q: Will you provide OEM service?
A: OEM & ODM services available


7.Q: How long is the product warranty?
A: 1 year.
