HT12G Mini Excavator
HT12G Mini Excavator
HT12G Mini Excavator
HT12G Mini Excavator
HT12G Mini Excavator
HT12G Mini Excavator
HT12G Mini Excavator
HT12G Mini Excavator
Specifications
Brand Name :
Hightop
Model Number :
HT12G
Certification :
CE，EPA，ISO，TUV
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability :
100 set per month
Delivery Time :
5-14 work days
Packaging Details :
Wooden case
Model :
HT12G
Engine :
Z482 Kubota Z482
Transportation length :
2380mm
Total width :
930mm
Upper width :
940mm
Description

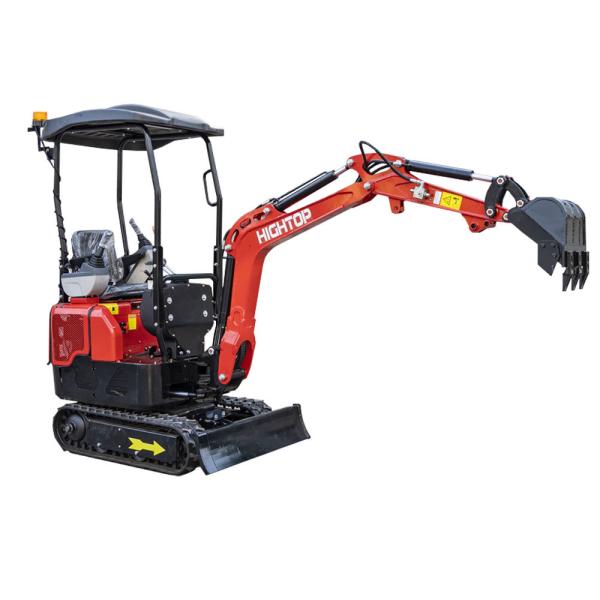

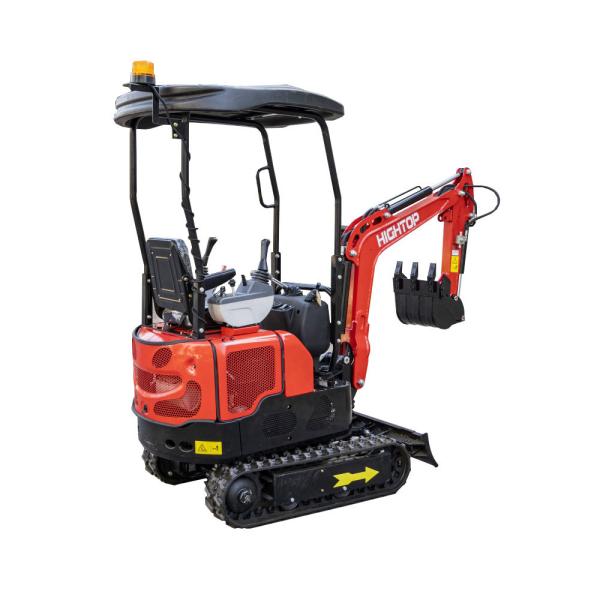

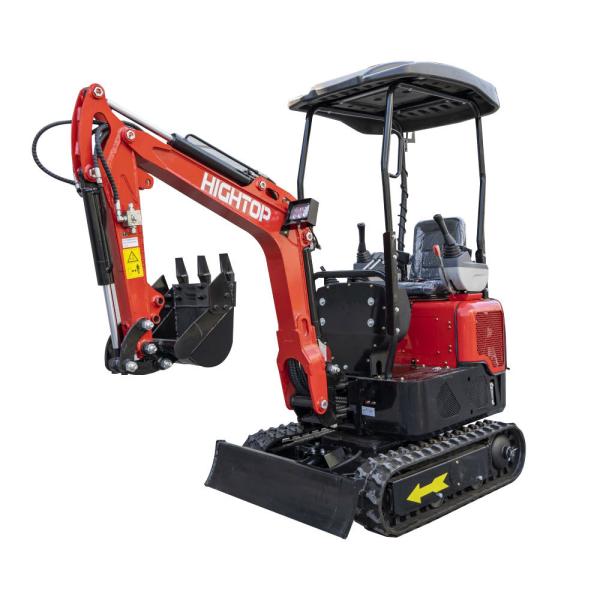

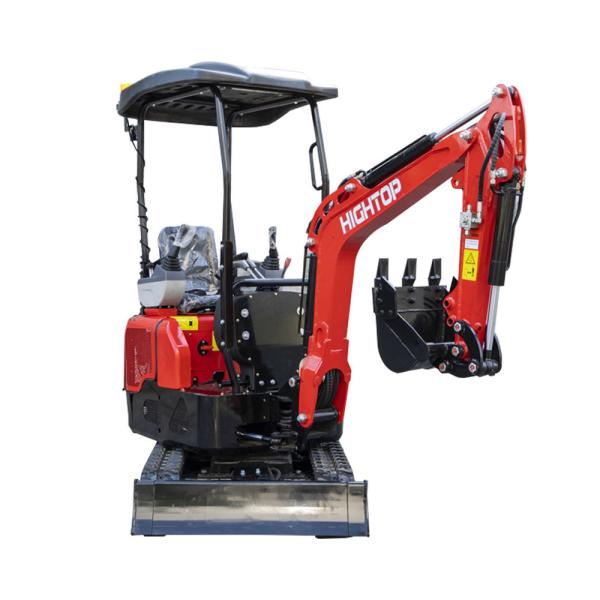

HT12G Mini Excavator Instruction

1.Kubota Z482 engine

Equipped with Kubota Z482 engine, it providespowerful power output and can operate stablyunder various working conditions.

2.Full hydraulic control, pilot control

o)

Adopting advanced pilot control system, the operation is moreaccurate,the response is faster,and the work efficiency isimproved.

3.Chassis width

The total width is only 930 millimeters, making iteasy to adapt to narrow space operations. The tailturning radius is 820 millimeters, providing highmaneuverability.

4.Structural parts

The whole vehicle is shot blasted, pickled, phosphated, andsprayed, which increases the adhesion of the paint moleculesand is more durable,non-bleaching and smoother. Othermanufacturers do not have these procedures,only simplypolish and spray paint, which is easy to get rusty.y paint, whichis easy to get rusty.

HT12G Mini Excavator Parameter

Model:HT12G Maximum excavation height:2455mm
Engine:Z482 Kubota Z482 Maximum Dumping Height:1620mm
Transportation length:2380mm Maximum Digging Depth :1850mm
Total width:930mm Maximum excavation distance:2920mm
Upper width:940mm minimum radius:1510mm
Total height (cab roof) 2270mm Maximum height at minimum turning radius:1930mm
Standard track shoe width:180mm Work quality:900kg
Track gauge:750mm Bucket capacity:0.02m³
The height of the bulldozer blade above the ground:110mm Form of working device:Backhoe
Bulldozer shovel pushes excavation depth:195mm Gradeability:30 degrees
Tail turning radius:820mm
Track grounding length:890mm
Track length:1235mm

HT12G Mini Excavator Details

HT12G Mini ExcavatorHT12G Mini ExcavatorHT12G Mini ExcavatorHT12G Mini ExcavatorHT12G Mini ExcavatorHT12G Mini ExcavatorHT12G Mini ExcavatorHT12G Mini Excavator
