Farmland Garden Mini Digger 1.5 Ton Mini Excavator Low Consumption
Farmland Garden Mini Digger 1.5 Ton Mini Excavator Low Consumption
Farmland Garden Mini Digger 1.5 Ton Mini Excavator Low Consumption
Farmland Garden Mini Digger 1.5 Ton Mini Excavator Low Consumption
Specifications
Brand Name :
Hightop
Model Number :
-2
Certification :
CE，EPA，ISO，TUV
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability :
100 set per month
Delivery Time :
5-14 work days
Packaging Details :
Wooden case
Product Name :
Hightop Mini Excavator
Engine Brand :
Kubota D722
Operating Weight :
1500kg
Power /Rotation speed :
10.2kw(15HP)2500rpm
Overall dimension( LxWxH) :
2450mm*940mm*2150mm
Description

Full hydraulic Pilot hightop Mini Excavator 1.5ton compact digger

-2 Hightop mini excavator Description:

Euro 5, EPA, CE,ISO certificate

Optional:hydraulic pilot joystick,boom swing,extendable

Comfortable seat, work more comfortably at work, and increase work efficiency

Operating joystick Easy to use, easy to use

LED headlights have high brightness and long range can be used at night

Long life

Strong Power

360°Rotate

Simple operation

Low Consumption

Excellent quality

-2 Hightop mini excavator Features:

1. Hydraulic pilots

2. Famous brand engine.Low fuel consumption and guaranteed quality.

3. Optional

4. Extendable track .990-1170mm

5. Rubber track.Gear transmission,strong grip,Optional telescopic crawler.

6. All with oil drain.All with oil drain pipe for travel motor and swing motor.

Hightop mini excavator Technical parameters:

Model:-2
Emission Standard Tier 5/ Stage V
Engine Kubota
Model D722
Power /Rotation speed 10.2kw(15HP)2500rpm
Number of cylinder 3
Maximum Travel speed 4km/h
PERFORMANCE PARAMETER
Standard Bucket capacity 0.025m³
Swing speed 9 rpm
Max. Grade ability 35°
Maximum Bucket digging force 18KN
Maximum Arm digging force 11KN
Hydraulic system pressure 18.2Mpa
Machine weight 1350kg
MACHINE SIZE
Overall dimension (L*W*H) 2450mm*940mm*2150mm
Chassis width 1000mm
Axle base(Track length on ground) 1300mm
Track width 200mm
Min.Ground clearance 380mm
MAIN DEMENSIONS
Maximum Digging height 2640mm
Maximum Dumping height 2100mm
Maximum Digging depth 1800mm
Maximum Vertical digging depth 2230mm
Maximum Digging radius 2350mm
Minimum swing radius 1190mm

Applications:

-2 hightop mini excavator designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.

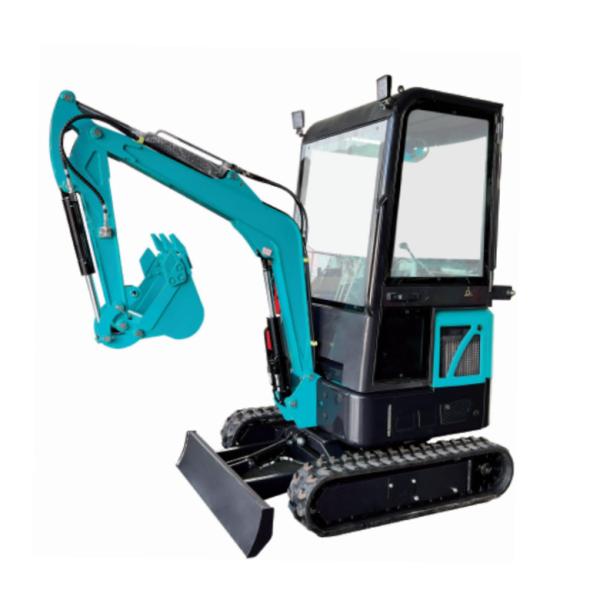

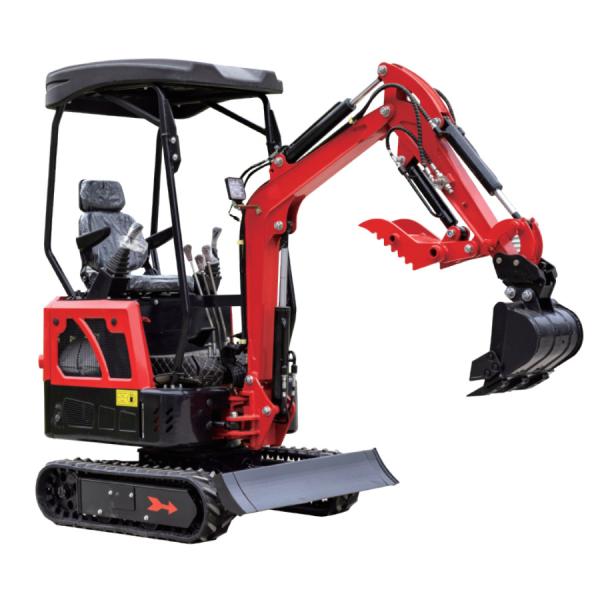

-2 Hightop mini excavator Show Details:

Farmland Garden Mini Digger 1.5 Ton Mini Excavator Low Consumption

Farmland Garden Mini Digger 1.5 Ton Mini Excavator Low Consumption
