HT12G Mini Excavator with Kubota Z482 Engine Full Hydraulic Control
HT12G Mini Excavator with Kubota Z482 Engine Full Hydraulic Control
HT12G Mini Excavator with Kubota Z482 Engine Full Hydraulic Control
HT12G Mini Excavator with Kubota Z482 Engine Full Hydraulic Control
HT12G Mini Excavator with Kubota Z482 Engine Full Hydraulic Control
HT12G Mini Excavator with Kubota Z482 Engine Full Hydraulic Control
HT12G Mini Excavator with Kubota Z482 Engine Full Hydraulic Control
HT12G Mini Excavator with Kubota Z482 Engine Full Hydraulic Control
HT12G Mini Excavator with Kubota Z482 Engine Full Hydraulic Control
HT12G Mini Excavator with Kubota Z482 Engine Full Hydraulic Control
Specifications
Brand Name :
Hightop
Model Number :
HT12G
Certification :
CE，EPA，ISO，TUV
Place of Origin :
China
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100 set per month
Delivery Time :
5-14 work days
Packaging Details :
Wooden case
MOQ :
1 set
Product name :
HT12G Mini Excavator
Model :
HT12G
Engine :
Z482 Kubota Z482
Transportation Length :
2380mm
Total Width :
930mm
Upper Width :
940mm
Height of Bulldozer Blade Above Ground :
110mm
Bulldozer Shovel Pushes Excavation Depth :
195mm
Work Quality :
900kg
Description

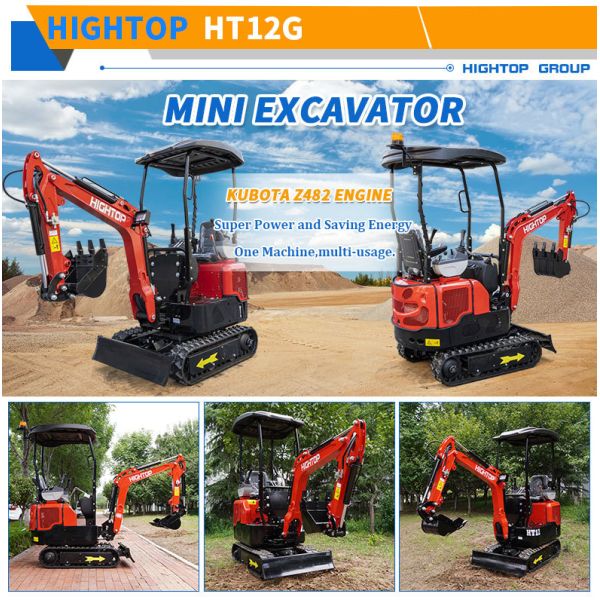

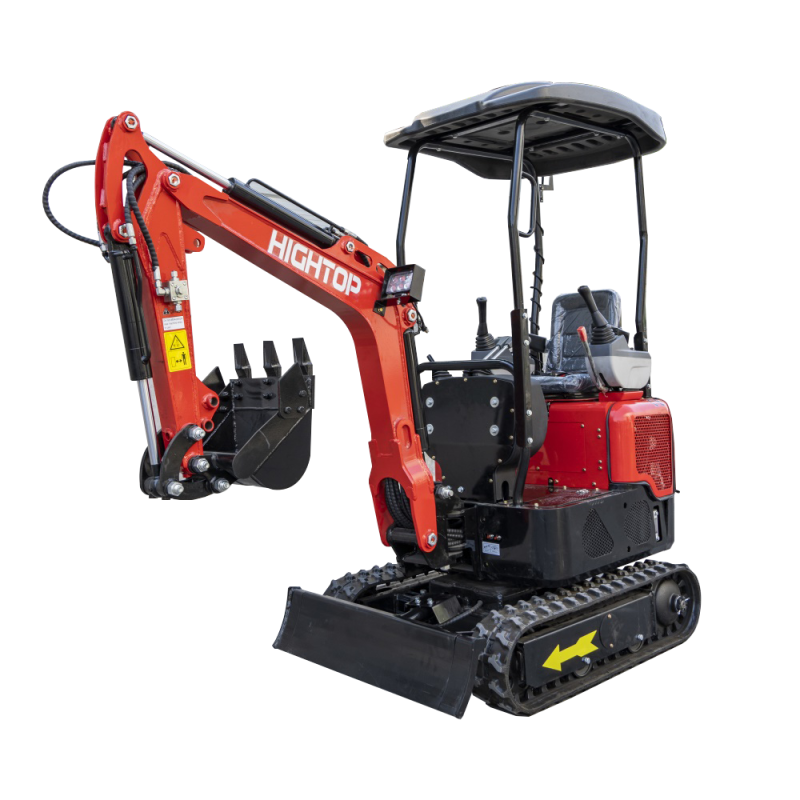

HT12G Mini Excavator
Key Features
  • Kubota Z482 Engine: Equipped with Kubota Z482 engine, providing powerful power output and stable operation under various working conditions.
  • Full Hydraulic Control, Pilot Control: Advanced pilot control system ensures more accurate operation, faster response, and improved work efficiency.
  • Compact Chassis Design: Total width of only 930 millimeters for easy adaptation to narrow space operations. Tail turning radius of 820 millimeters provides high maneuverability.
  • Durable Structural Components: Complete vehicle undergoes shot blasting, pickling, phosphating, and spraying processes that increase paint molecule adhesion for enhanced durability, non-bleaching properties, and smoother finish.
Technical Specifications
Specification Value Specification Value
Model HT12G Maximum Excavation Height 2455mm
Engine Z482 Kubota Z482 Maximum Dumping Height 1620mm
Transportation Length 2380mm Maximum Digging Depth 1850mm
Total Width 930mm Maximum Excavation Distance 2920mm
Upper Width 940mm Minimum Radius 1510mm
Total Height (Cab Roof) 2270mm Maximum Height at Minimum Turning Radius 1930mm
Standard Track Shoe Width 180mm Work Quality 900kg
Track Gauge 750mm Bucket Capacity 0.02m³
Height of Bulldozer Blade Above Ground 110mm Form of Working Device Backhoe
Bulldozer Shovel Pushes Excavation Depth 195mm Gradeability 30 degrees
Tail Turning Radius 820mm

Track Grounding Length 890mm

Track Length 1235mm
