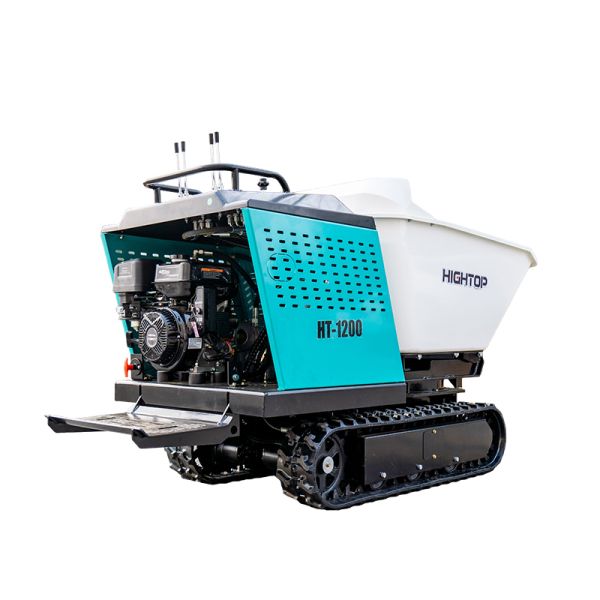

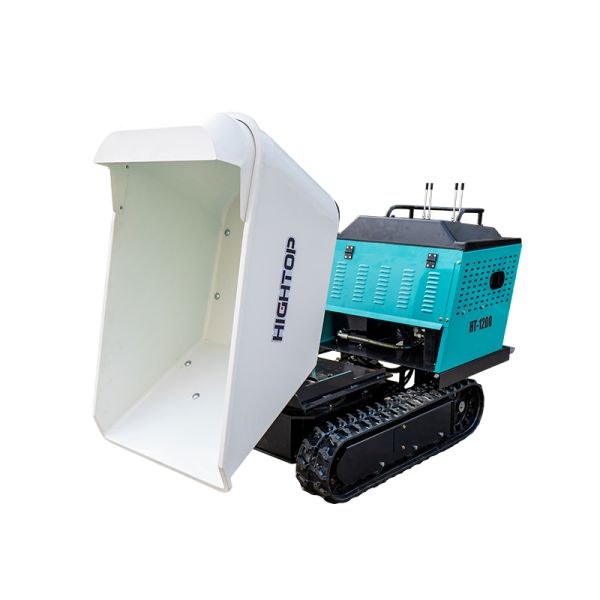

HT1200 Mini Crawler Dumper with 13.5HP Engine
HT1200 Mini Crawler Dumper with 13.5HP Engine
HT1200 Mini Crawler Dumper with 13.5HP Engine
HT1200 Mini Crawler Dumper with 13.5HP Engine
HT1200 Mini Crawler Dumper with 13.5HP Engine
HT1200 Mini Crawler Dumper with 13.5HP Engine
HT1200 Mini Crawler Dumper with 13.5HP Engine
HT1200 Mini Crawler Dumper with 13.5HP Engine
HT1200 Mini Crawler Dumper with 13.5HP Engine
HT1200 Mini Crawler Dumper with 13.5HP Engine
Specifications
Brand Name :
Hightop
Model Number :
HT1200
Certification :
CE，EPA，ISO，TUV
Place of Origin :
China
Payment Terms :
L/C,D/P,D/A,T/T,Western Union
Supply Ability :
100 set per month
Machine Model :
HT-1200
Power Model :
Ducar
Power Type :
Single Cylinder, EPA, 4-Stroke, Air-Cooled
Total Displacement (ML) :
420CC
Rated Power (KW/RPM) :
13.5HP/3600RPM
Description
HT1200 Crawler Rotation Dump Truck
The HT1200 Crawler Rotation Dump Truck is engineered for heavy-duty material handling applications, combining powerful performance with exceptional maneuverability across challenging terrains.
Key Features

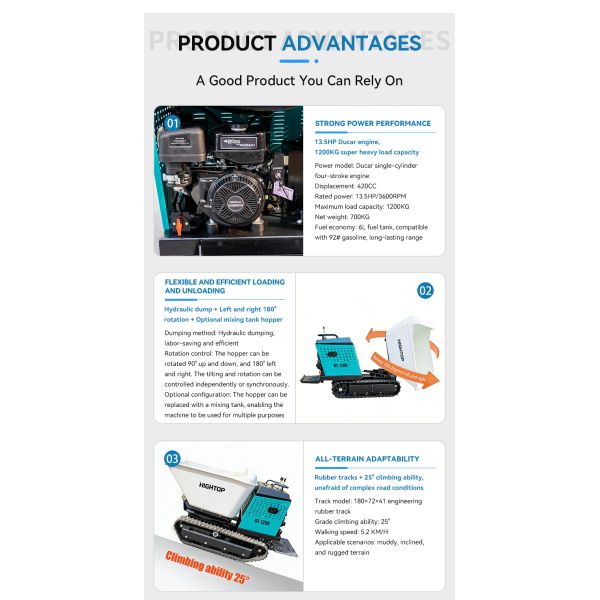

  • Powerful 13.5HP Engine: 420CC Da Jiang engine delivers robust performance for handling 1200KG maximum loads

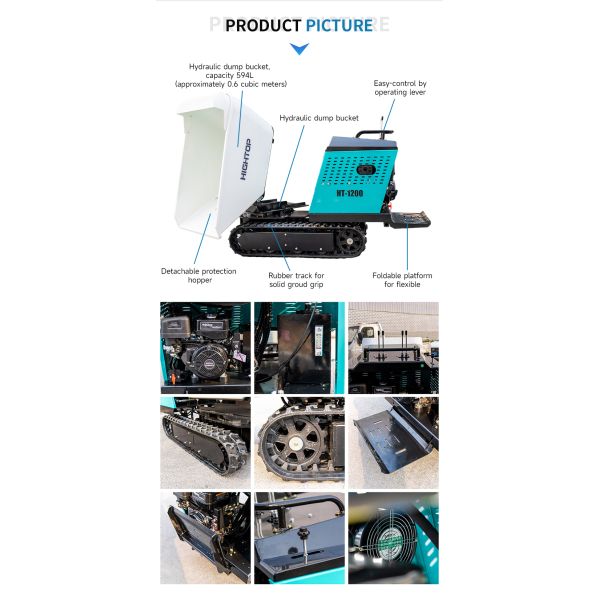

  • Hydraulic Dump with 180° Rotation: Multi-angle dumping capability with independent or synchronous tilt and rotation control
  • All-Terrain Rubber Track Chassis: Superior traction and 25° climbing capacity for muddy and rugged terrain
  • Intuitive Centralized Control: User-friendly control panel with clearly labeled buttons for precise operation
  • Reinforced Durability: Low-maintenance design with easy-access wear parts for long-term reliability

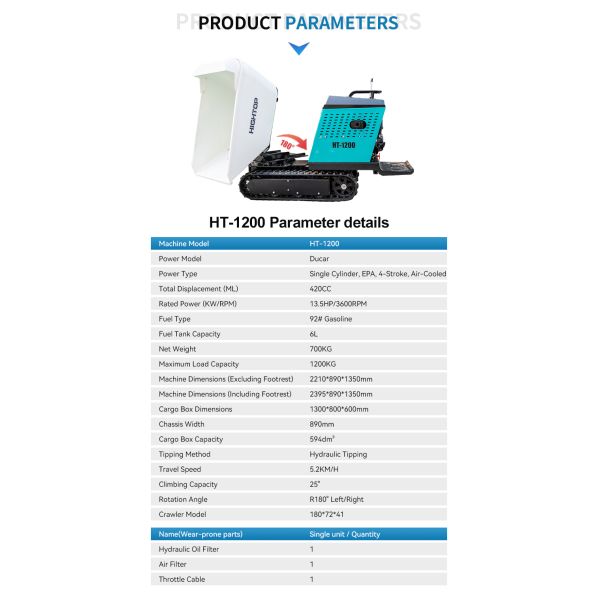

Technical Specifications
Specification Details
Machine Model HT-1200
Power Model Ducar
Power Type Single Cylinder, EPA, 4-Stroke, Air-Cooled
Total Displacement 420CC
Rated Power 13.5HP/3600RPM
Fuel Type 92# Gasoline
Fuel Tank Capacity 6L
Net Weight 700KG
Maximum Load Capacity 1200KG
Machine Dimensions (Excluding Footrest) 2210*890*1350mm
Machine Dimensions (Including Footrest) 2395*890*1350mm
Cargo Box Dimensions 1300*800*600mm
Chassis Width 890mm
Cargo Box Capacity 594dm³
Tipping Method Hydraulic Tipping
Travel Speed 5.2KM/H
Climbing Capacity 25°
Rotation Angle R180° Left/Right
Crawler Model 180*72*41
Wear-Prone Parts
Component Quantity
Hydraulic Oil Filter / Air Filter 1
Throttle Cable 1
Product Images
HT1200 Mini Crawler Dumper with 13.5HP Engine HT1200 Mini Crawler Dumper with 13.5HP Engine HT1200 Mini Crawler Dumper with 13.5HP Engine HT1200 Mini Crawler Dumper with 13.5HP Engine HT1200 Mini Crawler Dumper with 13.5HP Engine HT1200 Mini Crawler Dumper with 13.5HP Engine HT1200 Mini Crawler Dumper with 13.5HP Engine HT1200 Mini Crawler Dumper with 13.5HP Engine HT1200 Mini Crawler Dumper with 13.5HP Engine
