Specifications
Brand Name :
Hightop
Model Number :
HT60Pro
Certification :
CE，EPA，ISO，TUV
Place of Origin :
China
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100 set per month
Delivery Time :
5-8 work days
MOQ :
1 sets
Packaging Details :
Wooden box packaging
Product Name :
HT60Pro Excavator
Model number :
HT60Pro
Total length :
6010mm
Total width :
2000mm
Overall height :
2650mm
Turntable width :
1880mm
Track length :
2535mm
Operating Weight (Kg) :
6000
Bucket Capacity (m³) :
0.24
Description

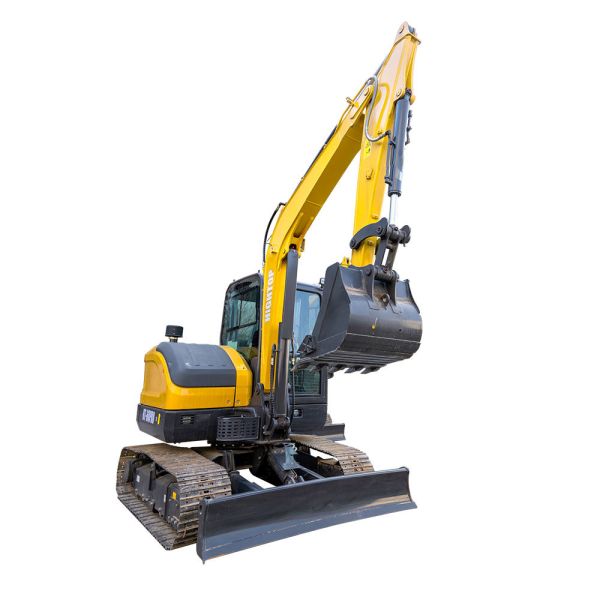

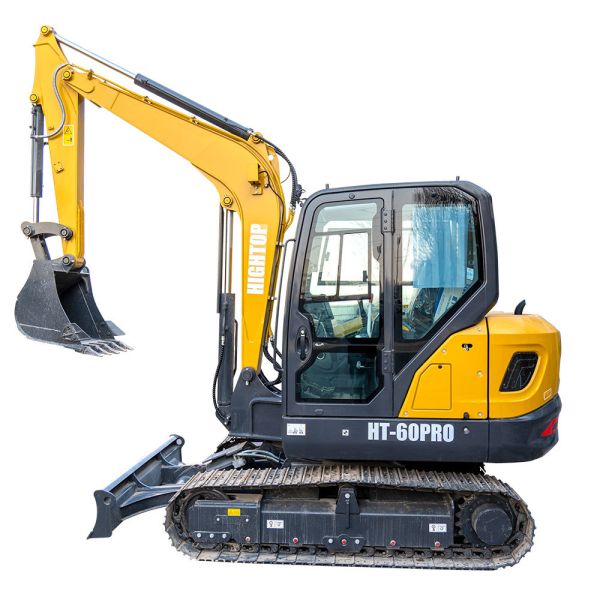

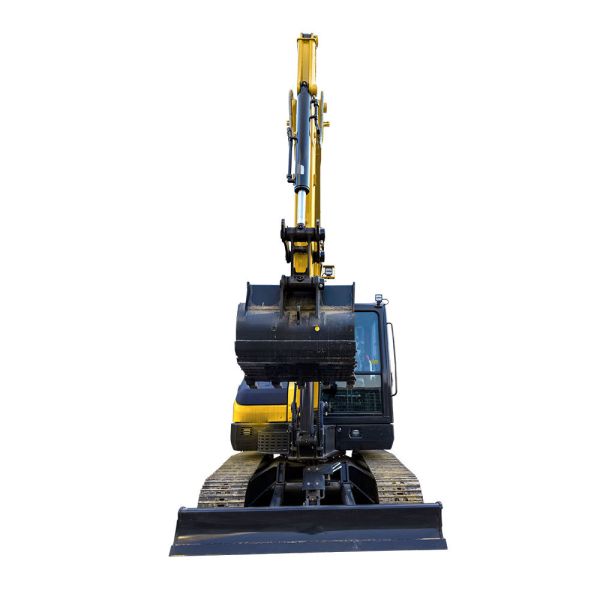

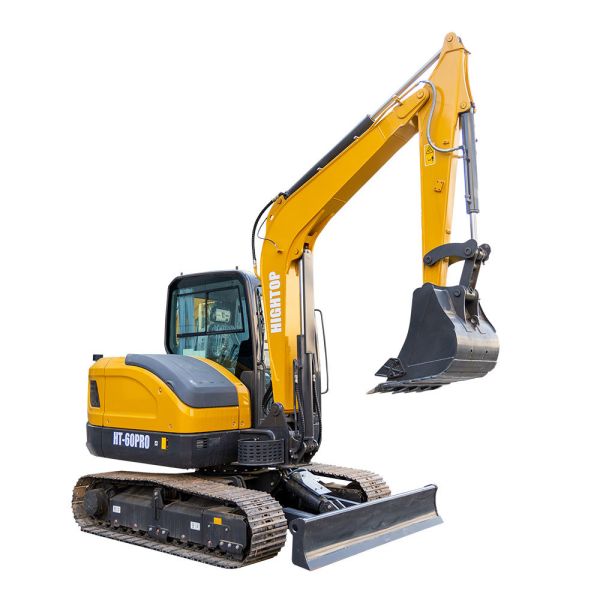

HT60Pro Hydraulic Excavator
Product Overview

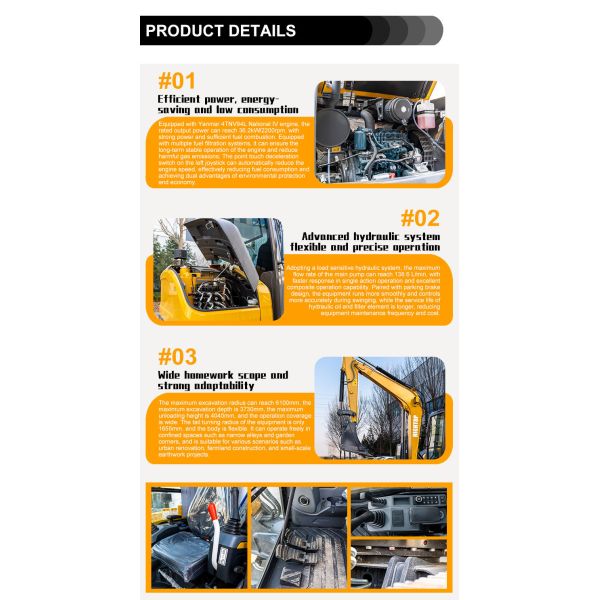

The HT60Pro Hydraulic Excavator combines powerful performance with advanced engineering for superior efficiency and reliability in demanding work environments.

  • Efficient Power & Energy Saving: Equipped with Yanmar 4TNV94L National IV engine delivering 36.2kW/2200rpm rated power. Features multiple fuel filtration systems for stable operation and reduced emissions. Automatic engine speed reduction technology minimizes fuel consumption.
  • Advanced Hydraulic System: Load-sensitive hydraulic system with 138.6 L/min maximum flow rate. Provides fast response in single-action operations and excellent composite operation capability. Parking brake design ensures smooth operation and precise control.

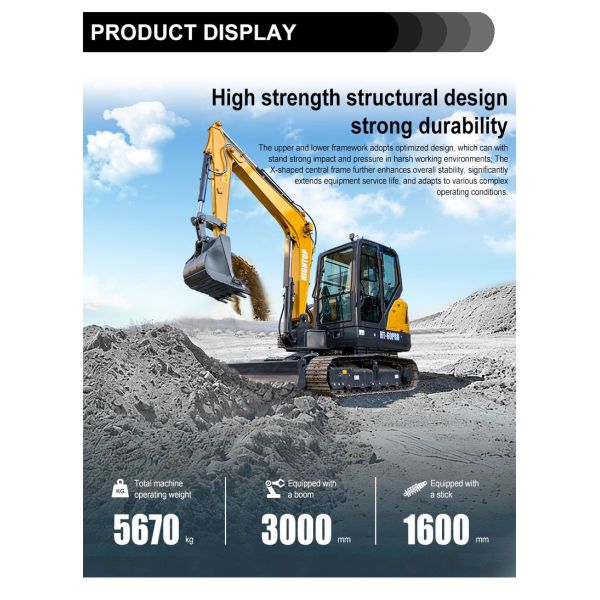

  • High-Strength Structural Design: Total operating weight of 5670kg with 3000mm boom and 1600mm arm. Optimized upper and lower framework withstands strong impact and pressure. X-shaped central frame enhances overall stability.
  • Wide Operation Range: Maximum excavation radius of 6100mm, maximum excavation depth of 3730mm, and maximum unloading height of 4040mm. Compact tail turning radius of 1655mm for operation in confined spaces.

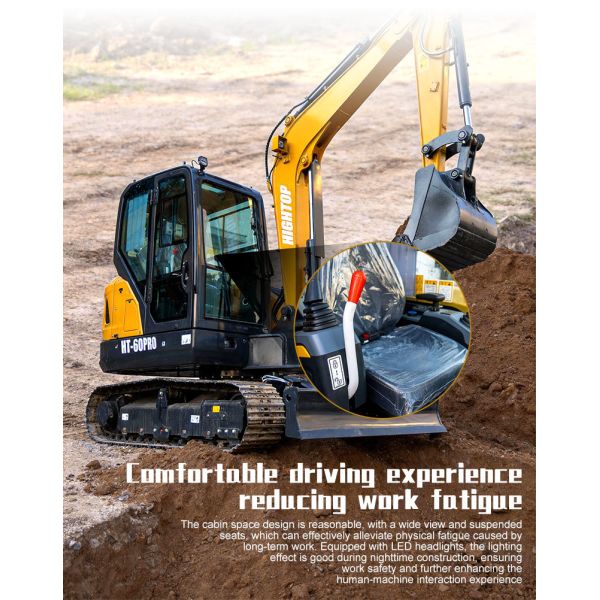

  • Comfortable Operation: Well-designed cabin with wide visibility and suspended seats. LED headlights provide excellent nighttime illumination for enhanced safety.

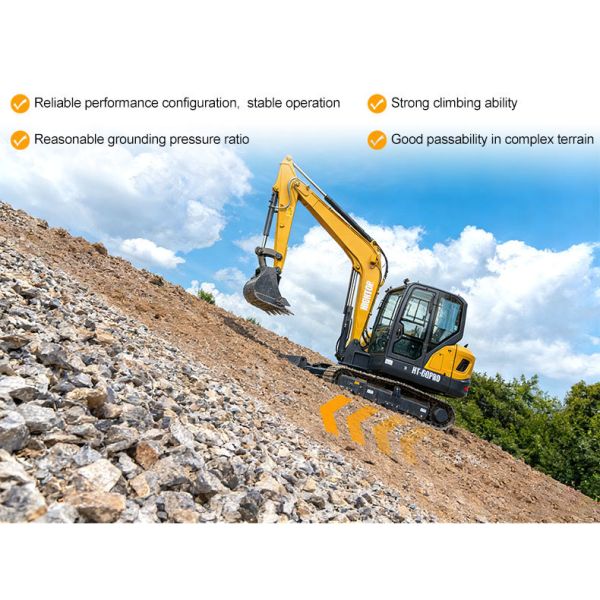

  • Reliable Performance: Rotation speed of 9.5r/min, walking speed of 2.3-3.8km/h, and strong climbing ability. VHD sleeves in key areas extend lubrication cycles and ensure long-term stability.

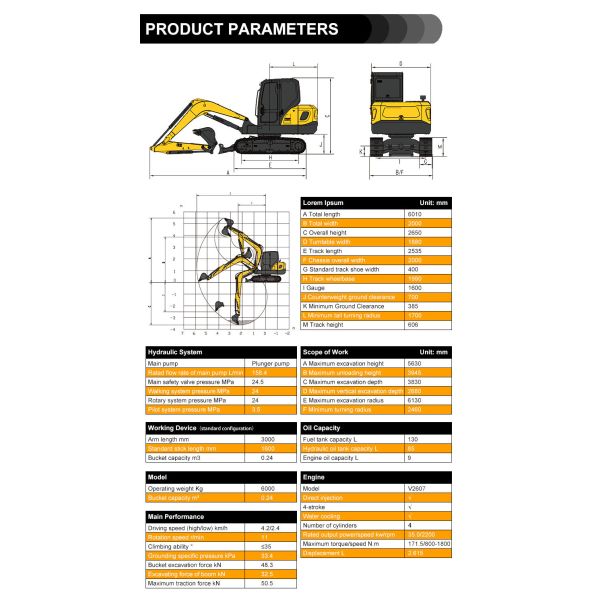

Technical Specifications
Dimensions (Unit: mm)
Total Length 6010
Total Width 2000
Overall Height 2650
Turntable Width 1880
Track Length 2535
Chassis Overall Width 2000
Standard Track Shoe Width 400
Track Wheelbase 1990
Gauge 1600
Counterweight Ground Clearance 700
Minimum Ground Clearance 385
Minimum Tail Turning Radius 1700
Track Height 606
Hydraulic System
Main Pump Plunger Pump
Rated Flow Rate of Main Pump (L/min) 158.4
Main Safety Valve Pressure (MPa) 24.5
Walking System Pressure (MPa) 24
Rotary System Pressure (MPa) 24
Pilot System Pressure (MPa) 3.5
Scope of Work (Unit: mm)
Maximum Excavation Height 5630
Maximum Unloading Height 3945
Maximum Excavation Depth 3830
Maximum Vertical Excavation Depth 2680
Maximum Excavation Radius 6130
Minimum Turning Radius 2460
Working Device (Standard Configuration)
Arm Length (mm) 3000
Standard Stick Length (mm) 1600
Bucket Capacity (m³) 0.24
Oil Capacity
Fuel Tank Capacity (L) 130
Hydraulic Oil Tank Capacity (L) 85
Engine Oil Capacity (L) 9
General Specifications
Model HT60Pro
Operating Weight (Kg) 6000
Bucket Capacity (m³) 0.24
Engine Specifications
Model V2607
Direct Injection √
4-Stroke √
Water Cooling √
Number of Cylinders 4
Rated Output Power/Speed (kW/rpm) 35.0/2200
Maximum Torque/Speed (N.m) 171.5/800-1800
Displacement (L) 2.615
Main Performance
Driving Speed (High/Low) (km/h) 4.2/2.4
Rotation Speed (r/min) 11
Climbing Ability (°) ≤35
Grounding Specific Pressure (kPa) 33.4
Bucket Excavation Force (kN) 48.3
Excavating Force of Boom (kN) 32.5
Maximum Traction Force (kN) 50.5

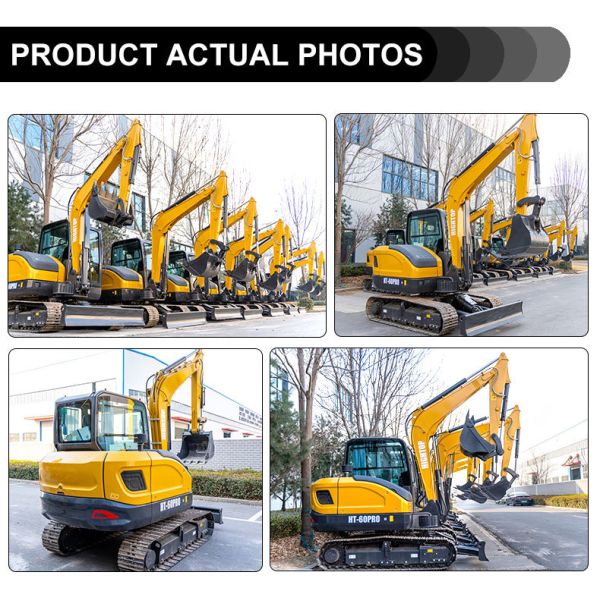

Product Images
