Specifications
Brand Name :
Hightop
Model Number :
HT-08
Certification :
CE，EPA，ISO，TUV
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100 set per month
Delivery Time :
5-14 work days
Packaging Details :
Wooden case
Rated power :
12 HP
Bucket Capacity :
0.025 m3
Weight :
650kg
Max. digging force :
7.5KN
Gradeability :
30°
Description

Detail description

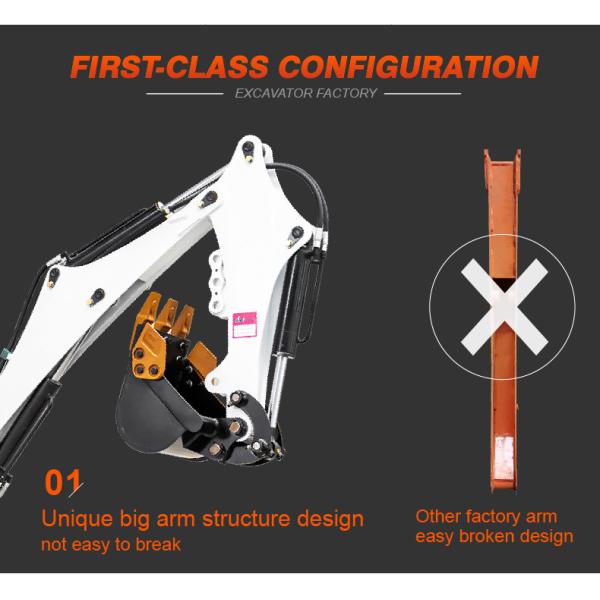

1.Hightop excavator unique big arm structure design, not easy to break.

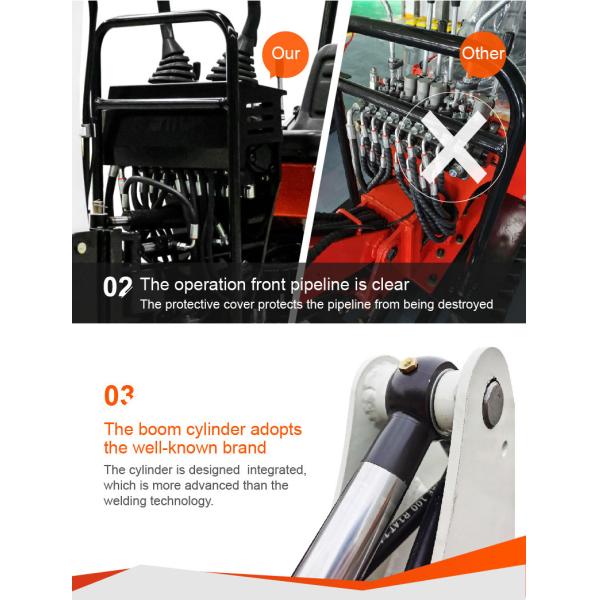

2.The machine operation front pipeline is clear, and there is a protective cover to protect the pipeline to avoid the pipeline exposed.
3. The excavator arm cylinder adopts famous brand, cylinder diameter integrated processing, more advanced than welding technology.

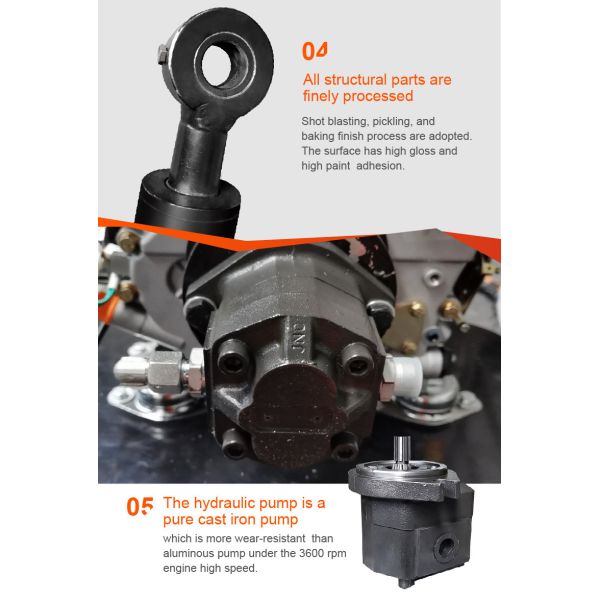

4.The structural parts of the excavator itself are finely processed, after shot blasting, pickling, baking paint and other processes, the surface gloss is high, and the adhesion of the paint is high.
5 .0.8 ton mini excavator hydraulic pump is pure cast iron pump, at 3600 rpm engine speed, more wear-resistant and durable than aluminum pump.
6.Hydraulic pipes are made of high quality imported pipe brands
7.0.8T excavator choose rubber tracks, which can effectively disperse the weight of the machine, thus reducing the pressure on the ground. For example, in scenarios such as urban road construction, landscaping or indoor work, the rubber tracks will not scratch or crush the ground as easily as steel tracks. The advantage of rubber tracks is especially obvious in golf course lawn maintenance, restoration of ancient buildings and other work environments that require high requirements for ground flatness and integrity.
8. The appearance of the machine is beautifully designed, and the color can be customized in yellow, red, blue, black, and so on.

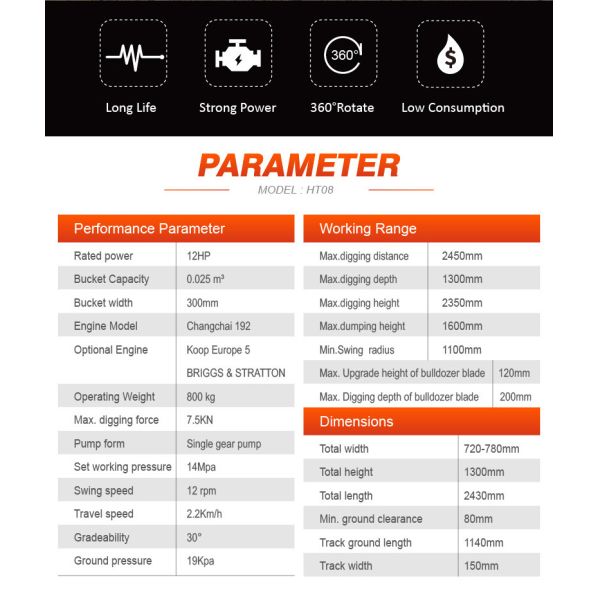

Parameter

Performance Parameter


Rated power

12HP

Bucket Capacity

0.025 m3

Engine Model

changchai 192

Weight

650 kg

Max. digging force

7.5KN

Pump form

Single gear pump

Set working pressure

14Mpa

Swing speed

12 rpm

Travel speed

2.2Km/h

Gradeability

30°

Ground pressure

19Kpa

Working Range


Max. dgging distance

2450mm

Max.digging depth

1200mm

Max.diging height

2350mm

Max.dumping height

1600mm

Min.Swing radius

1100mm

Max. Upgrade height of blldozer blade

120mm

Max. Digging depth of blldozer blade

200mm

Dimensions


Total width

720-780mm

Total height

1300mm

Total length

2430mm

Min. ground clearance

80mm

Track ground length

1140mm

Track width

150mm
