HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces
HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces
HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces
HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces
HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces
HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces
HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces
HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces
HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces
HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces
HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces
HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces
Specifications
Certification :
CE，EPA，ISO，TUV
Max pin height :
1865 mm
Model Number :
HT320T
Max working height :
2120mm
MOQ :
1 set
Delivery Time :
5-14 work days
Max Dumping distance :
505mm
Payment Terms :
L/C,D/P,D/A,T/T
Total height :
1350 mm
Price :
Negotiation
Max Dumping Angle :
35°
Supply Ability :
100 set per month
Ground clearance :
121 mm
Place of Origin :
China
Max Dumping height :
1405 mm
Brand Name :
Hightop
Model :
HT320T
Packaging Details :
Wooden case
Description
HT320T Skid-Steer Loader for Sale

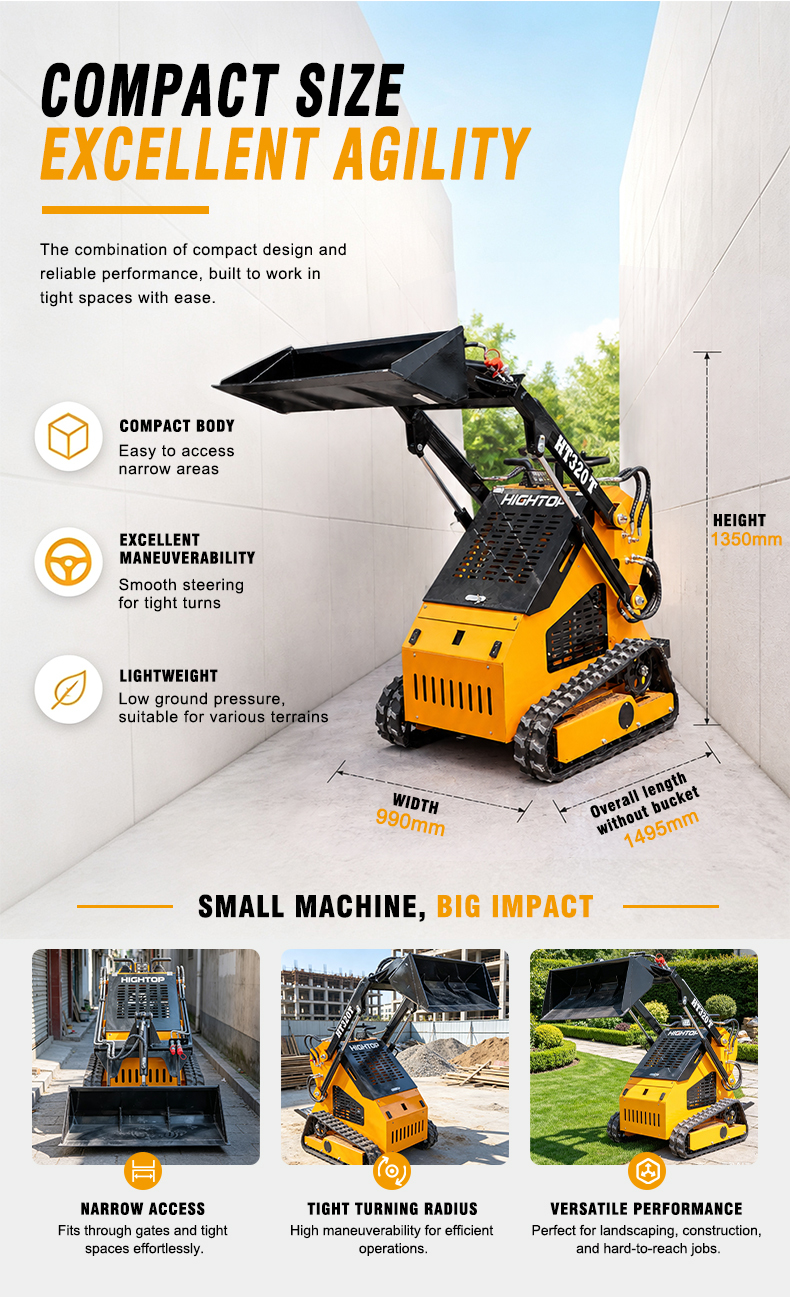

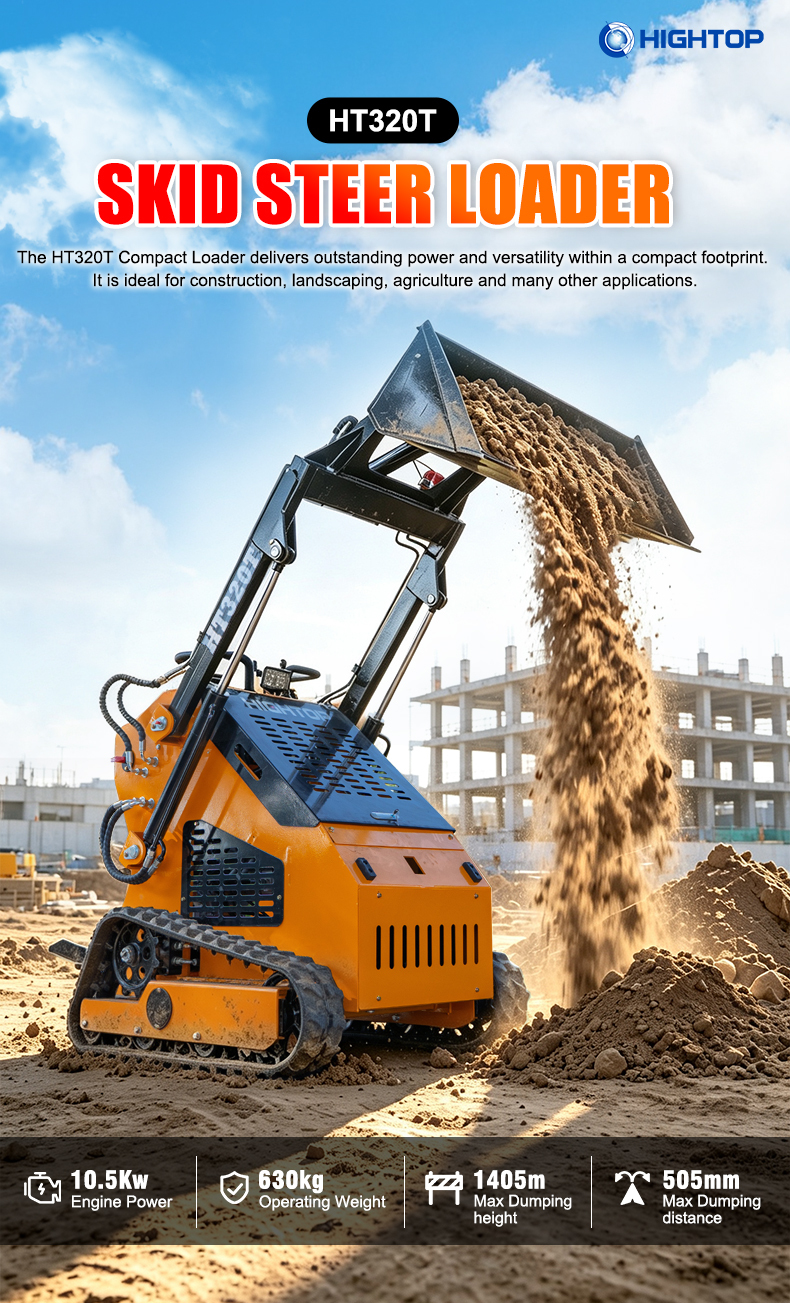

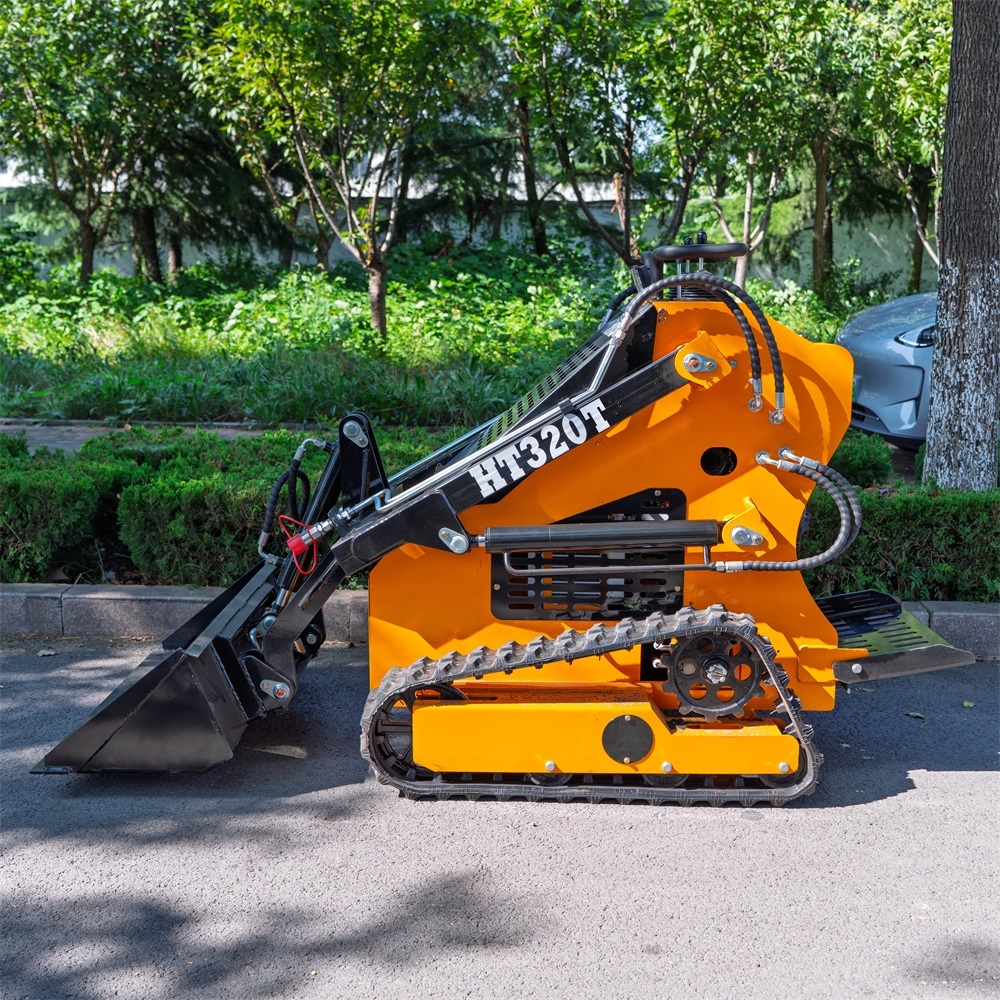

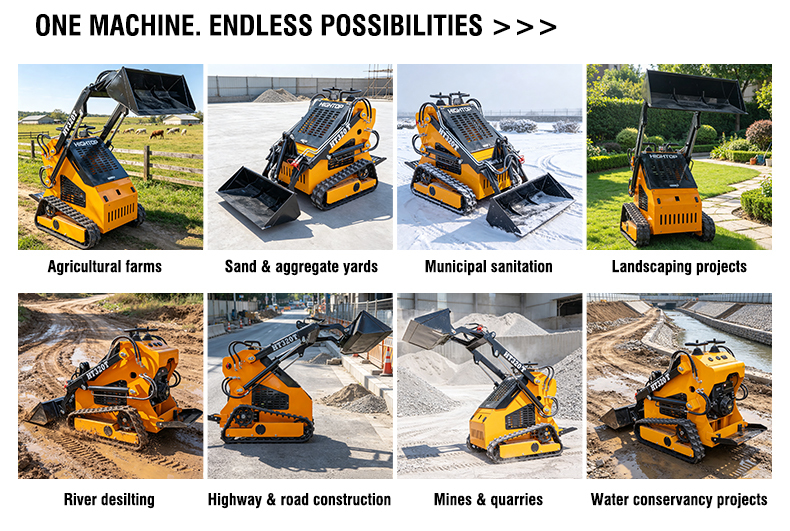

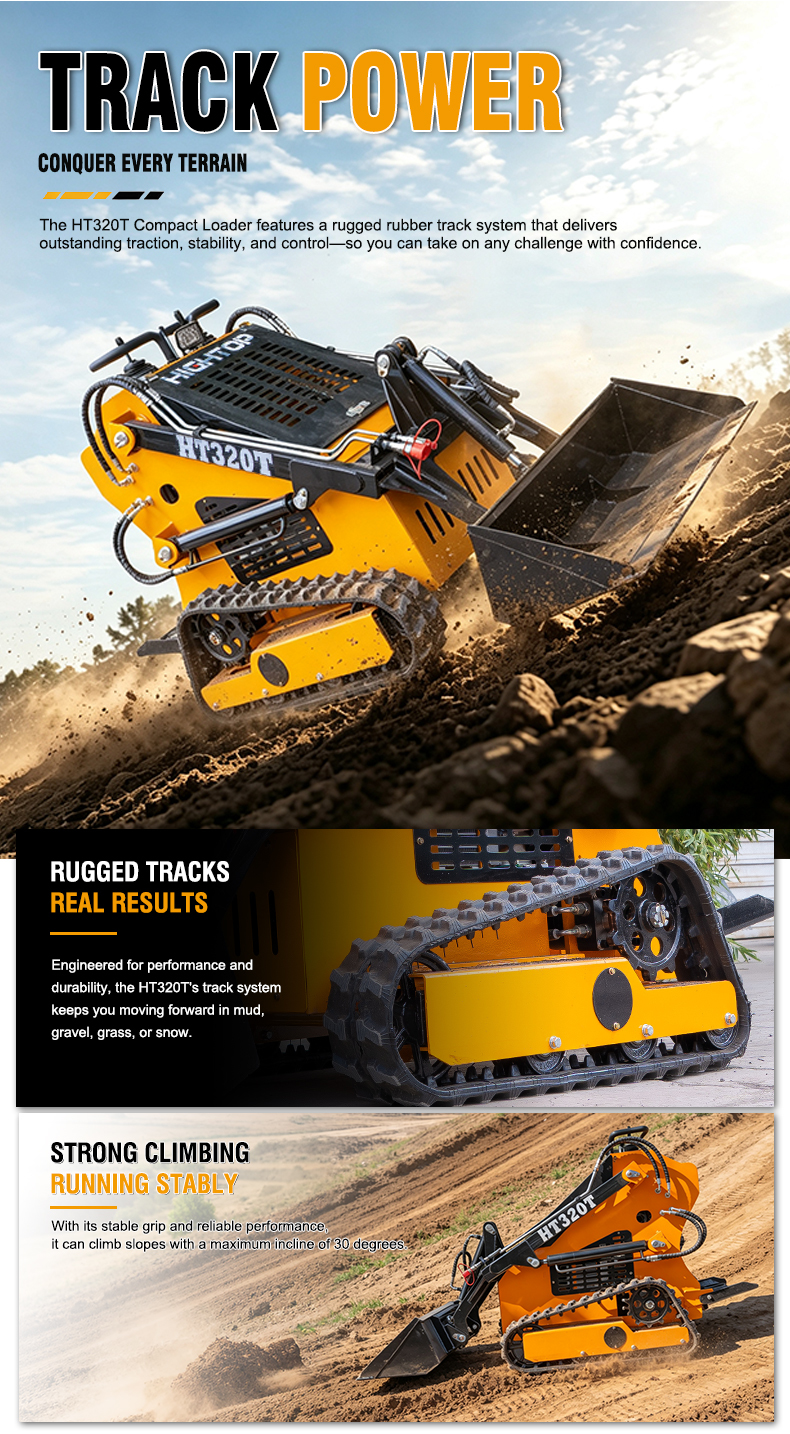

The HT320T is a compact tracked skid-steer loader featuring zero-turn steering and a small, compact body, making it ideal for working in tight spaces. It is suitable for a wide range of applications, including landscaping, yard renovations, greenhouse work, indoor cleanup, material handling in confined construction areas, and debris removal and sweeping. It supports quick-change attachments, making it a versatile machine for multiple tasks.

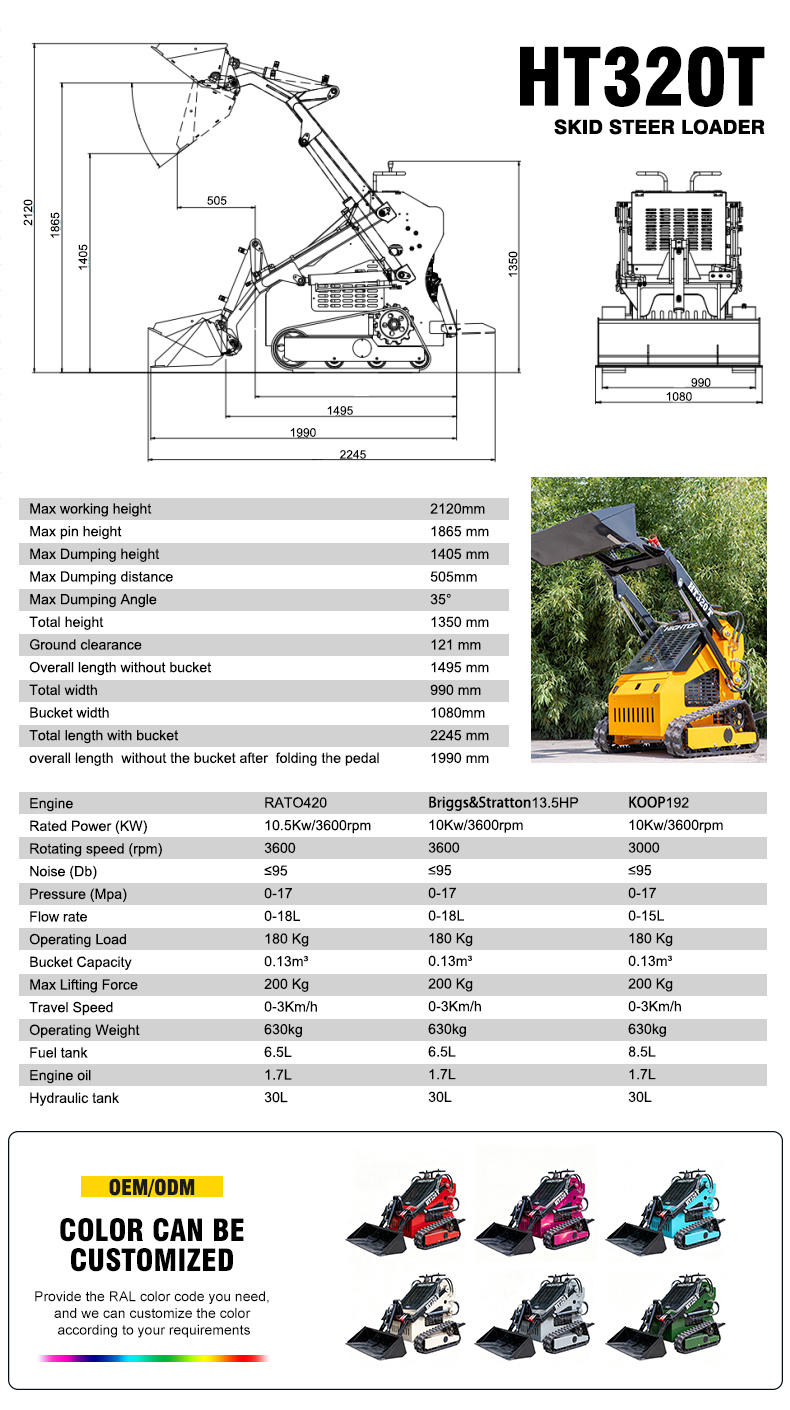

Key Specifications
Specification Value
Max working height 2120mm
Max pin height 1865 mm
Max Dumping height 1405 mm
Max Dumping distance 505mm
Max Dumping Angle 35°
Total height 1350 mm
Ground clearance 121 mm
Overall length without bucket 1495 mm
Total width 990 mm
Bucket width 1080mm
Total length with bucket 2245 mm
Overall length without bucket after folding the pedal 1990 mm

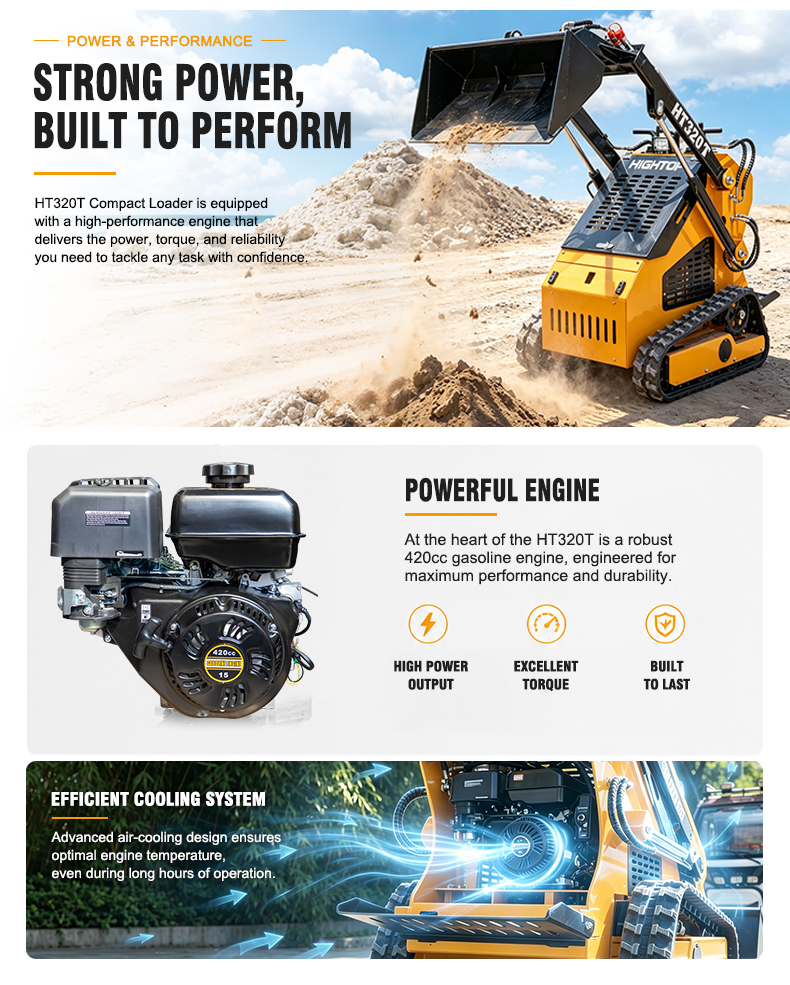

Engine Options & Performance
Parameter Runtong R420 Briggs & Stratton 13.5HP KOOP 192 (Separate Fuel Tank)
Rated Power (KW) 10.5Kw/3600rpm 10Kw/3600rpm 10Kw/3600rpm
Rotating speed (rpm) 3600 3600 3000
Noise (Db) ≤95 ≤95 ≤95
Pressure (Mpa) 0-17 0-17 0-17
Flow rate 0-18L 0-18L 0-18L
Operating Load 180 Kg (Including equipment weight) 180 Kg (Including equipment weight) 180 Kg (Including equipment weight)
Bucket Capacity 0.13m³ 0.13m³ 0.13m³
Max Lifting Force 200 Kg 200 Kg 200 Kg
Travel Speed 0-3Km/h 0-3Km/h 0-3Km/h
Operating Weight 630kg 630kg 630kg
Fluid Capacities
Fluid Type Runtong R420 Briggs & Stratton 13.5HP KOOP 192 (Separate Fuel Tank)
Fuel tank 6.5L 6.5L 8.5L
Engine oil 1.7L 1.7L 1.7L
Hydraulic tank 30L 30L 30L

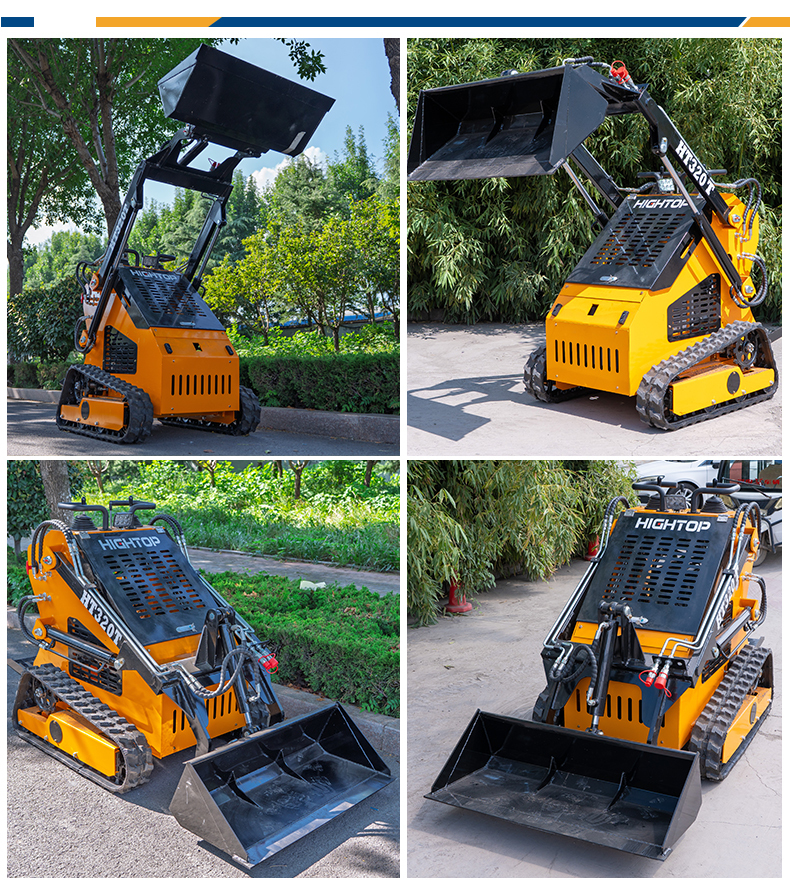

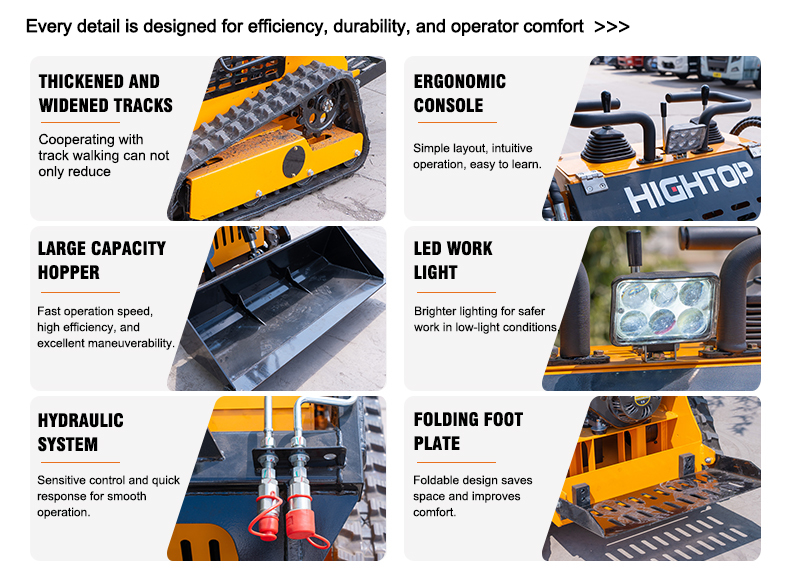

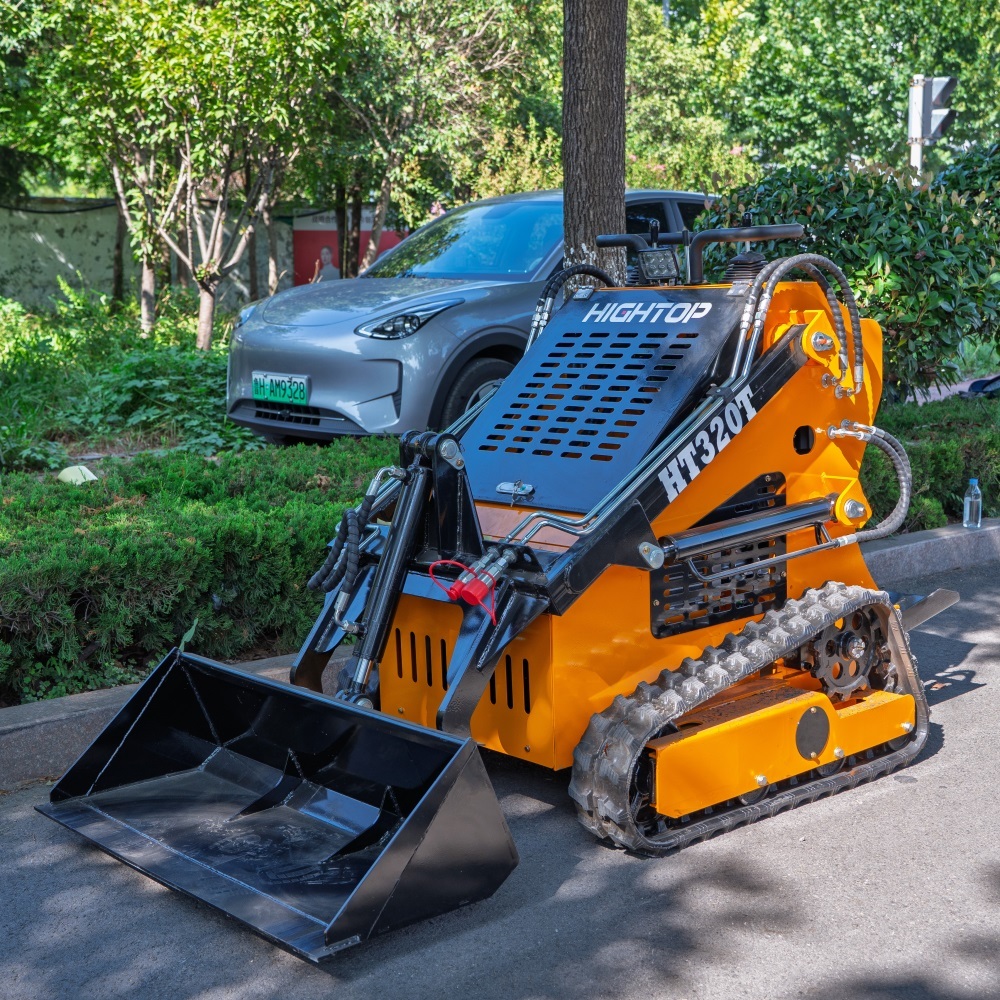

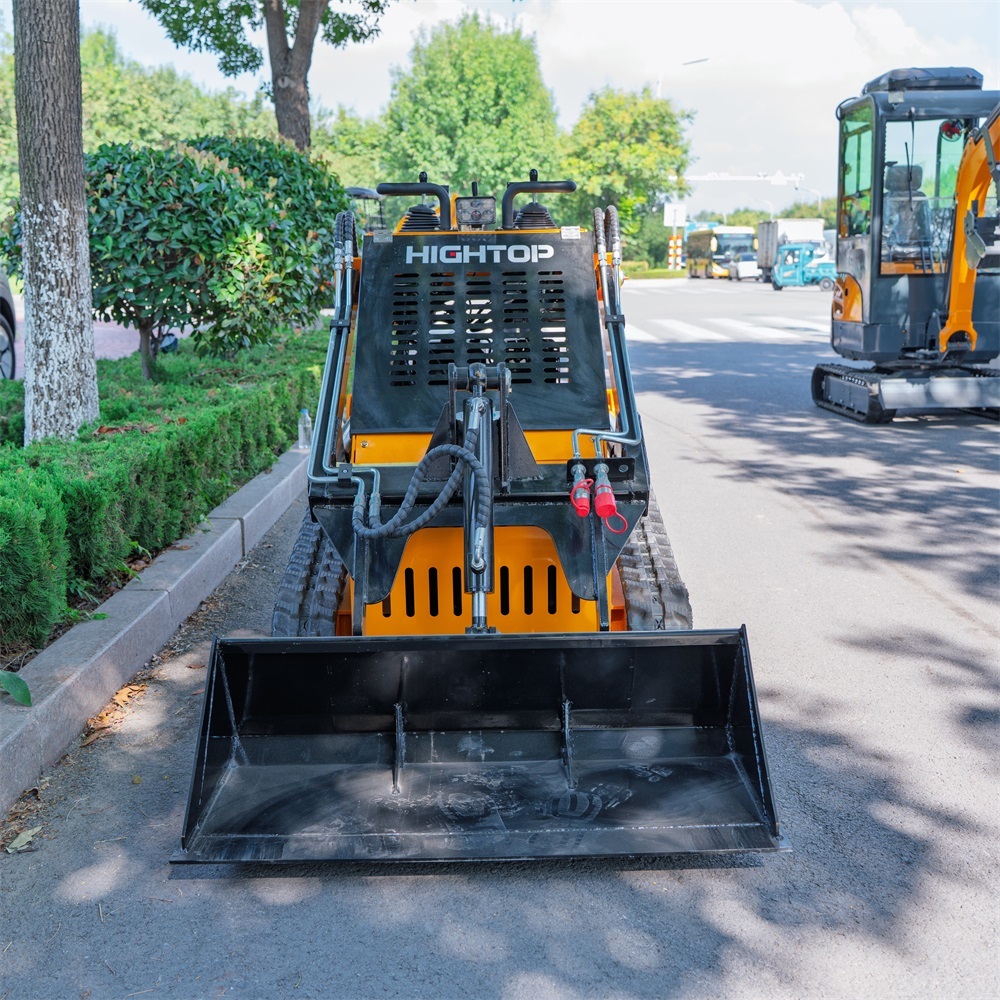

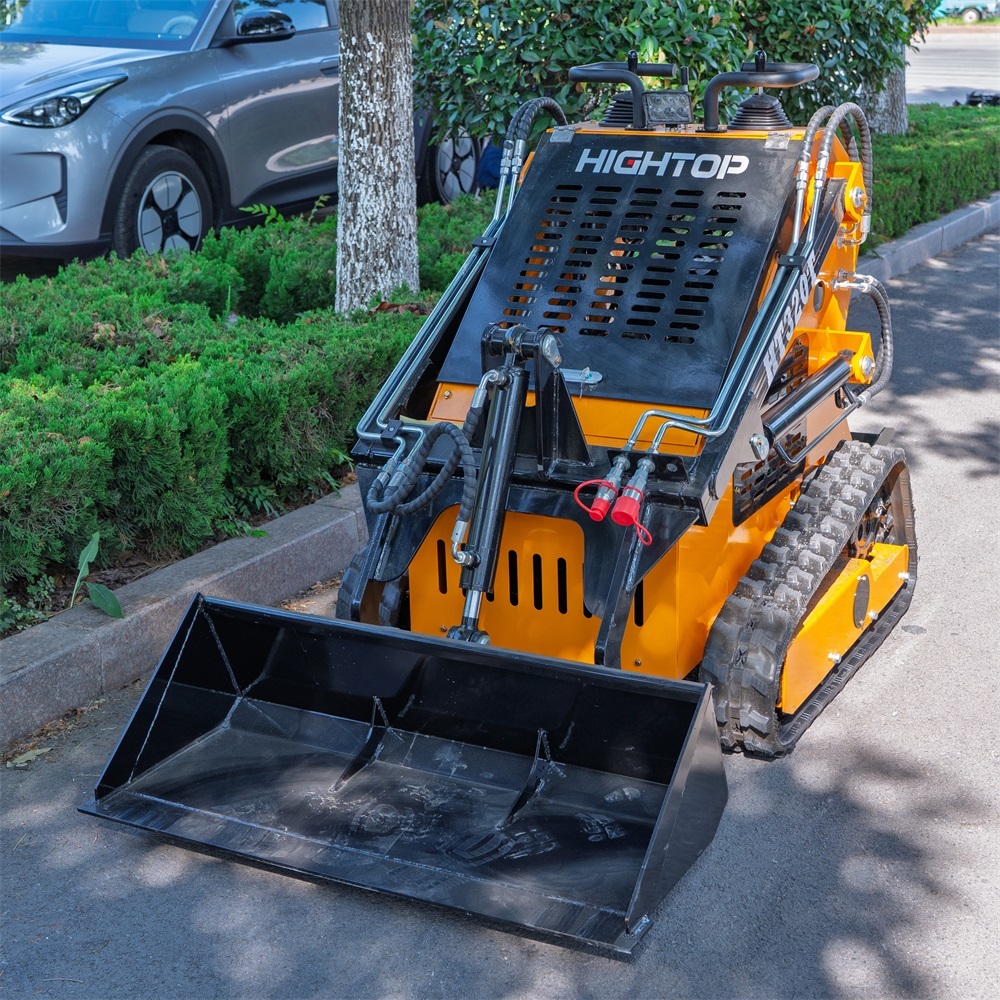

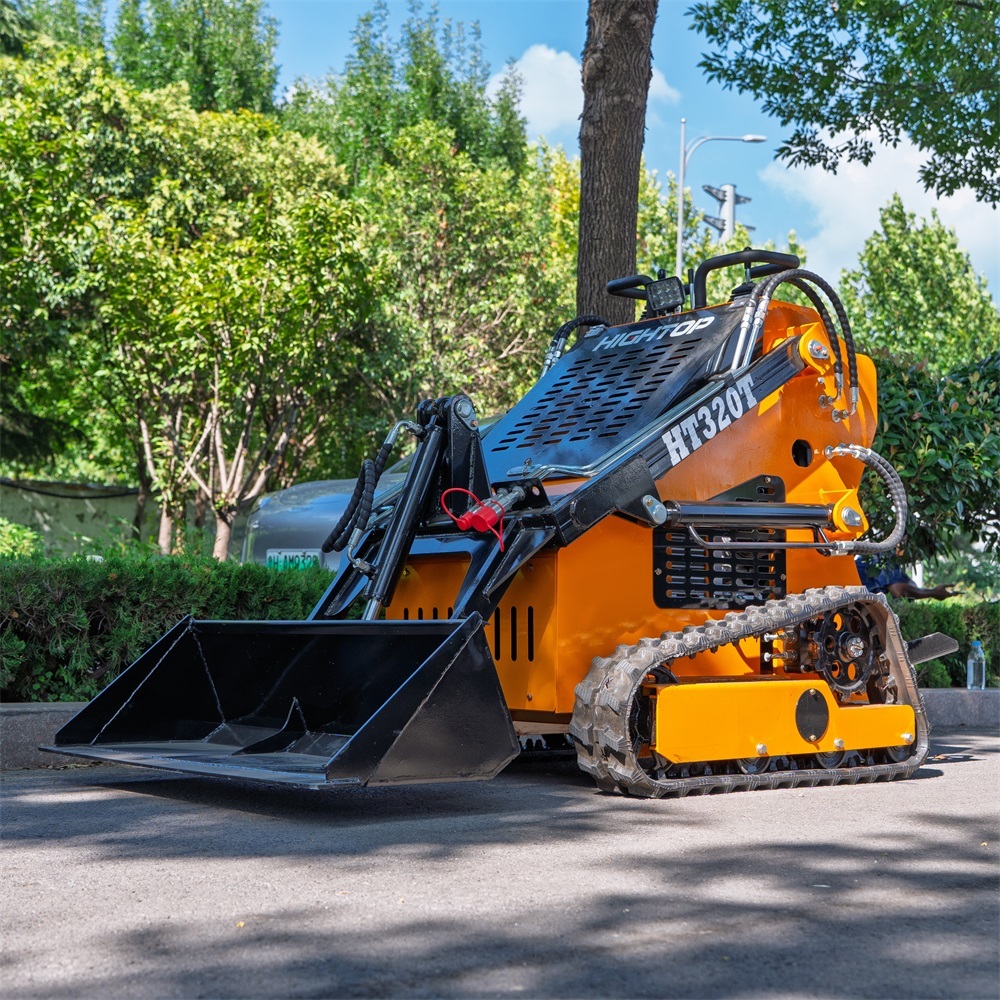

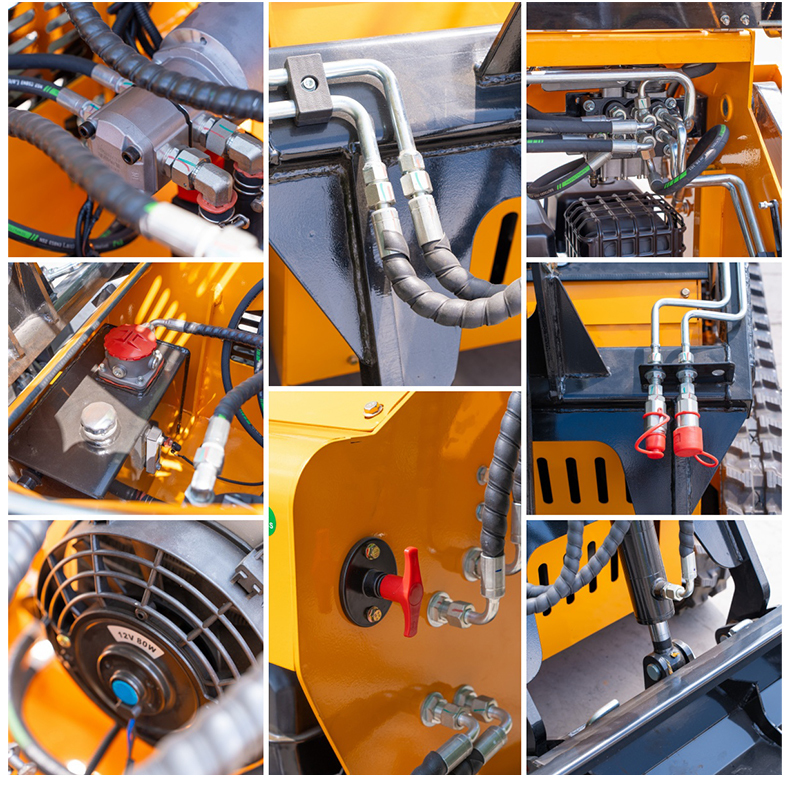

Product Gallery
HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces HT320T Compact Track Skid-Steer Loader with Zero-Turn Steering for Tight Spaces
