HT10L Wheeled Mini Excavator with 10KW Rated Power
HT10L Wheeled Mini Excavator with 10KW Rated Power
HT10L Wheeled Mini Excavator with 10KW Rated Power
HT10L Wheeled Mini Excavator with 10KW Rated Power
HT10L Wheeled Mini Excavator with 10KW Rated Power
HT10L Wheeled Mini Excavator with 10KW Rated Power
HT10L Wheeled Mini Excavator with 10KW Rated Power
HT10L Wheeled Mini Excavator with 10KW Rated Power
HT10L Wheeled Mini Excavator with 10KW Rated Power
HT10L Wheeled Mini Excavator with 10KW Rated Power
HT10L Wheeled Mini Excavator with 10KW Rated Power
HT10L Wheeled Mini Excavator with 10KW Rated Power
Specifications
Certification :
CE，EPA，ISO，TUV
Total width B :
1030mm
Model Number :
HT10L
Total length / Transport length A :
2450mm
MOQ :
1 set
Delivery Time :
5-14 work days
Total height (roof of the shed / roof of the cab) C :
2260
Payment Terms :
L/C,D/A,D/P,T/T
Price :
Negotiation
Standard tire width F :
215mm
Supply Ability :
100 set per month
Place of Origin :
China
Upper part width D :
750mm
Brand Name :
Hightop
Model :
HT10L
Packaging Details :
Wooden case
Description

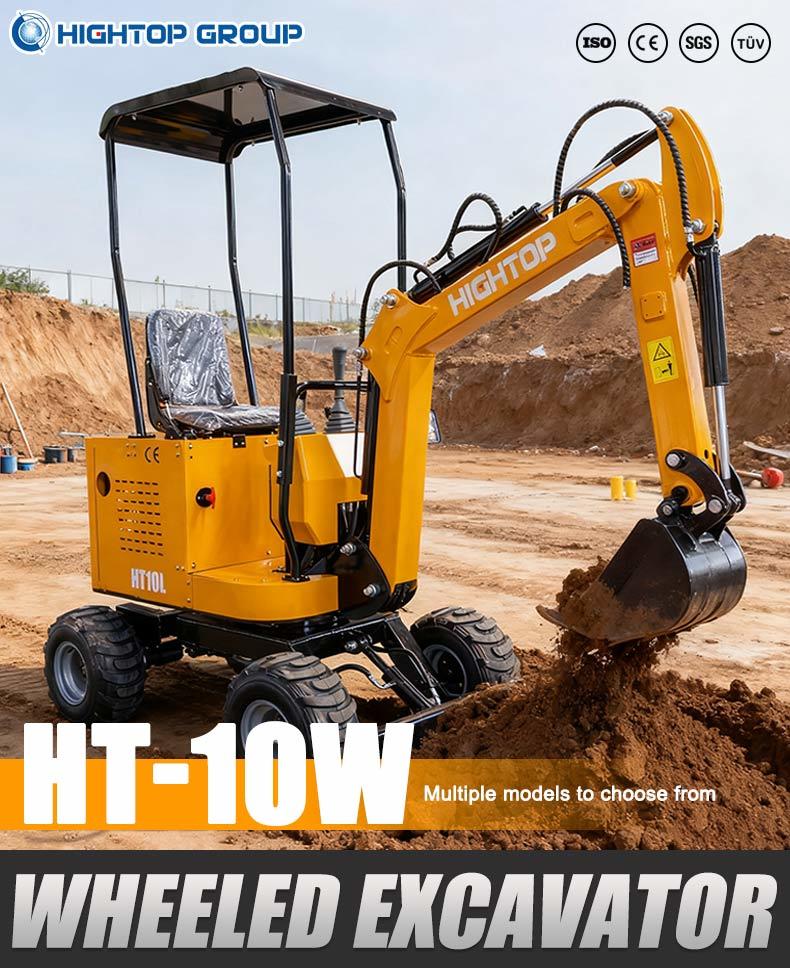

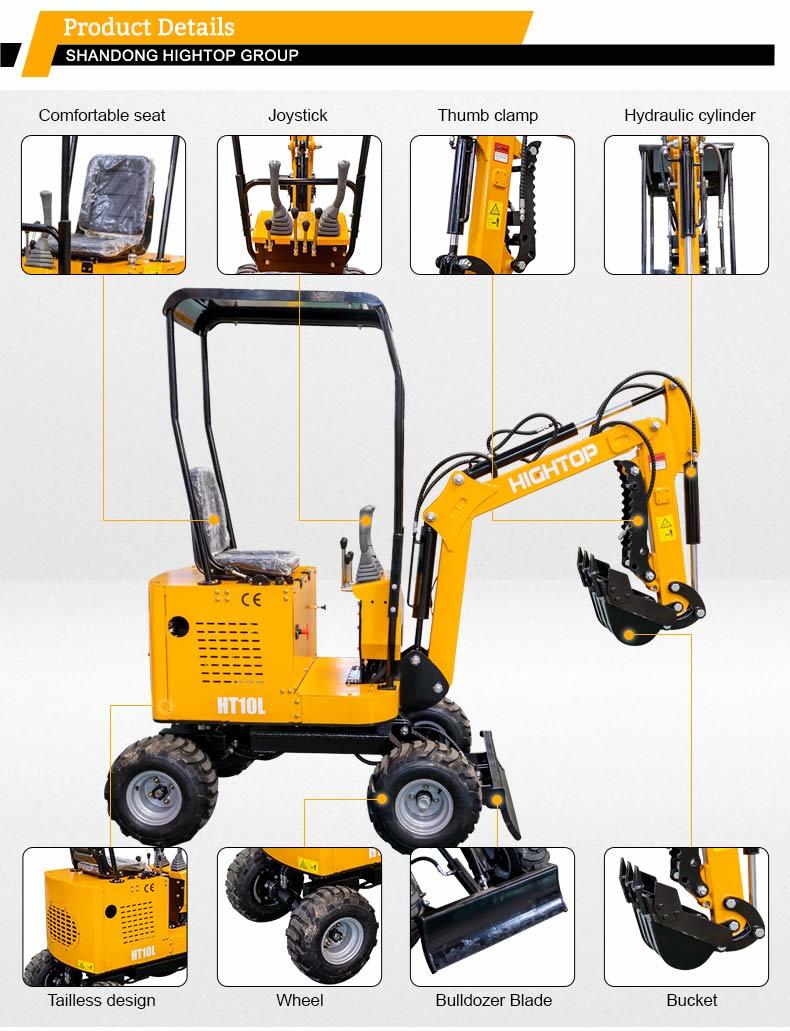

HT10L Wheeled Mini Excavator

The HT10L wheeled excavator is a compact earthmoving machine designed for mobility and efficiency. Utilizing tires for transportation, it features hydraulic excavation and travel systems, making it ideal for small-scale construction projects including municipal maintenance and road construction.

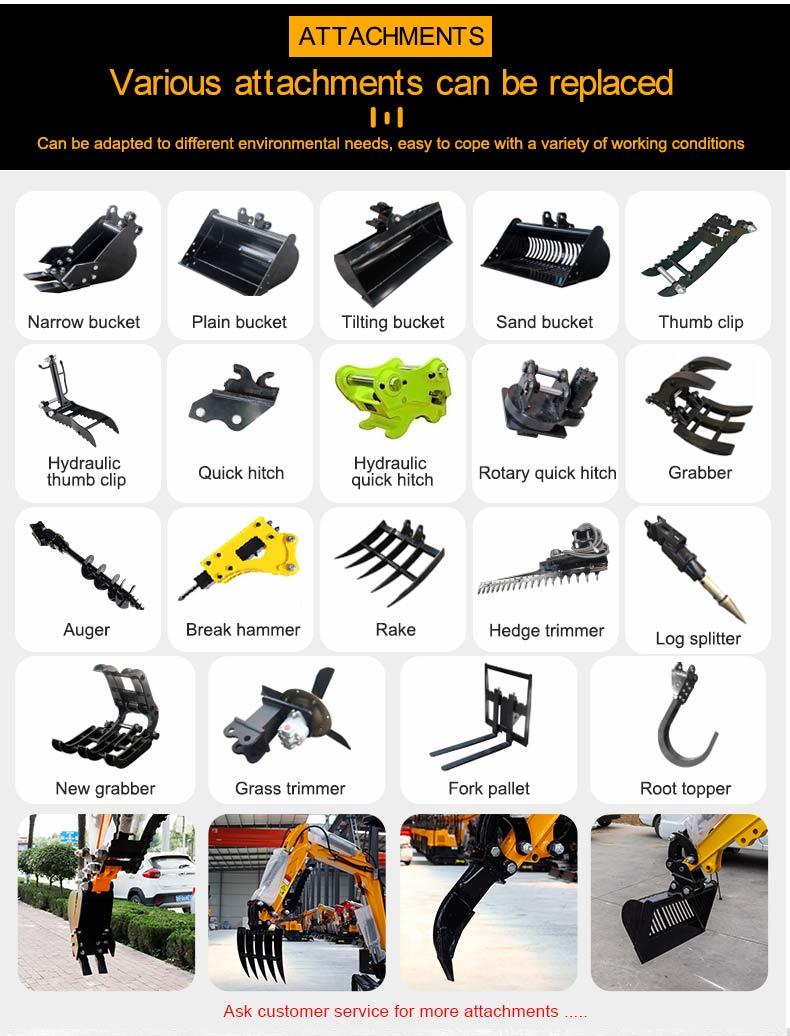

Key advantages include rapid self-propelled travel between job sites and quick attachment changes. The hydraulic system employs a main pump to drive a multi-way valve that controls the actuators, while the travel system uses a direct-drive hydraulic motor for reliable performance.

This model features rear-wheel steering and rear-wheel drive configuration. With high ground clearance, it easily navigates uneven terrain while minimizing the risk of bottoming out. The front-mounted dozer blade provides essential ground support during dozing and excavation operations, significantly enhancing overall machine stability during digging tasks.

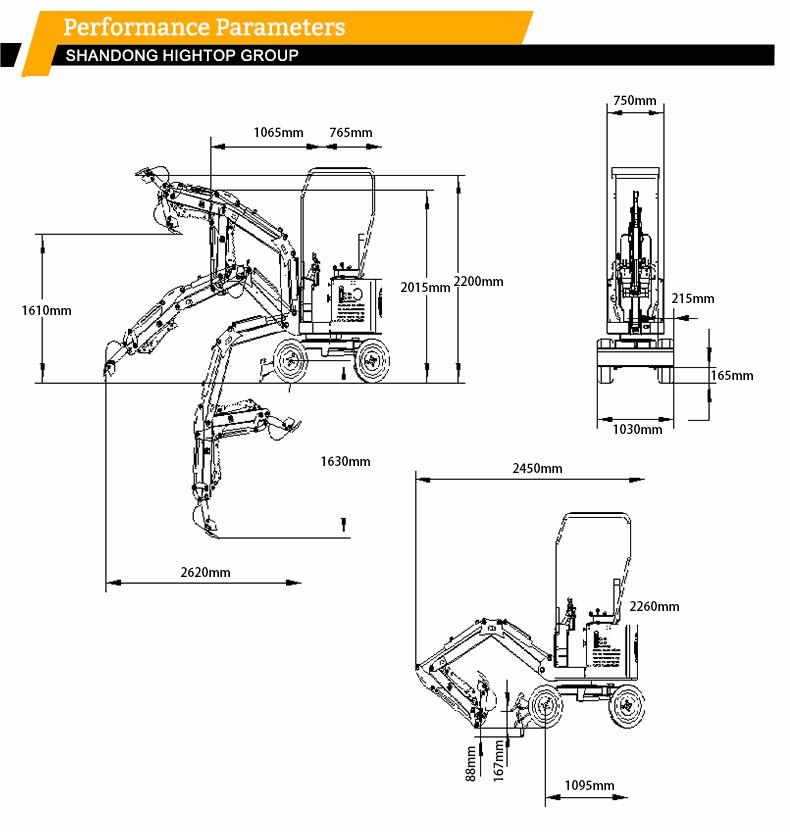

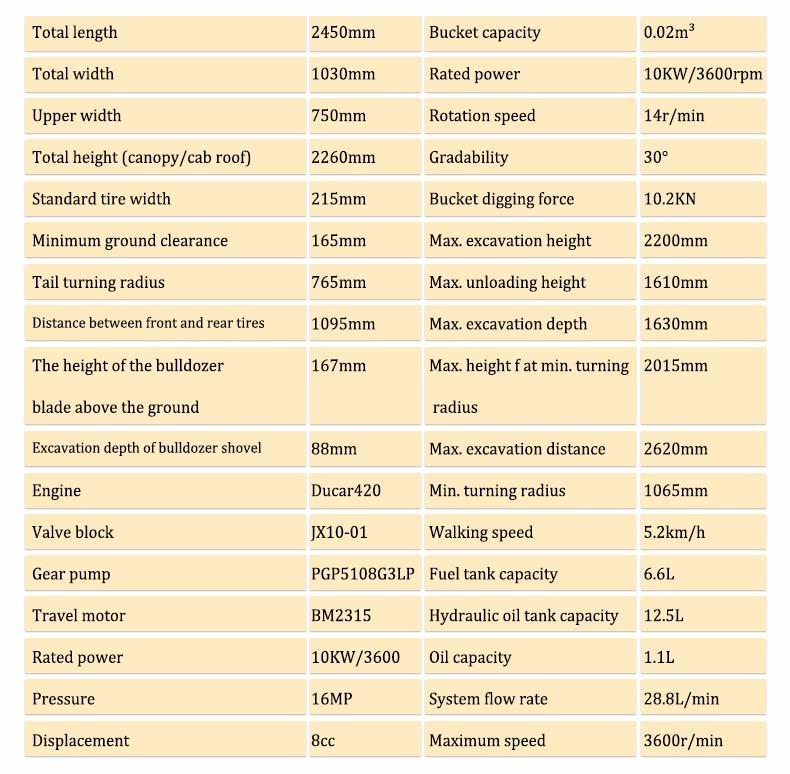

Overall Dimensions
Specification Measurement
Total length / Transport length A 2450mm
Total width B 1030mm
Upper part width D 750mm
Total height (roof of the shed / roof of the cab) C 2260mm
Standard tire width F 215mm
Minimum ground clearance H 165mm
Tail turning radius I 765mm
Distance between front and rear tires J 1095mm
Height of the bulldozer off the ground R 167mm
Bulldozer Blade Digging Depth T 88mm
Performance Specifications
Specification Value
Bucket capacity 0.02m³

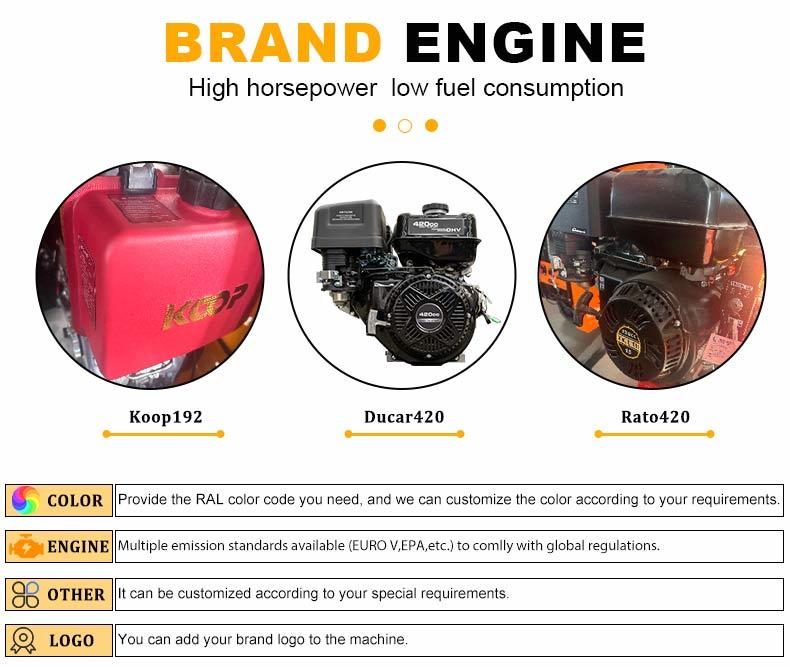

Rated Power 10KW/3600rpm
Rotational Speed 14r/min
Hill-climbing ability 30°
Bucket Digging Force 10.2KN
Working Range
Specification Measurement
Maximum digging height a 2200mm
Maximum unloading height b 1610mm
Maximum digging depth c 1630mm
Maximum digging distance d 2620mm
Minimum turning radius e 1065mm
Maximum Height at Minimum Turning Radius f 2015mm

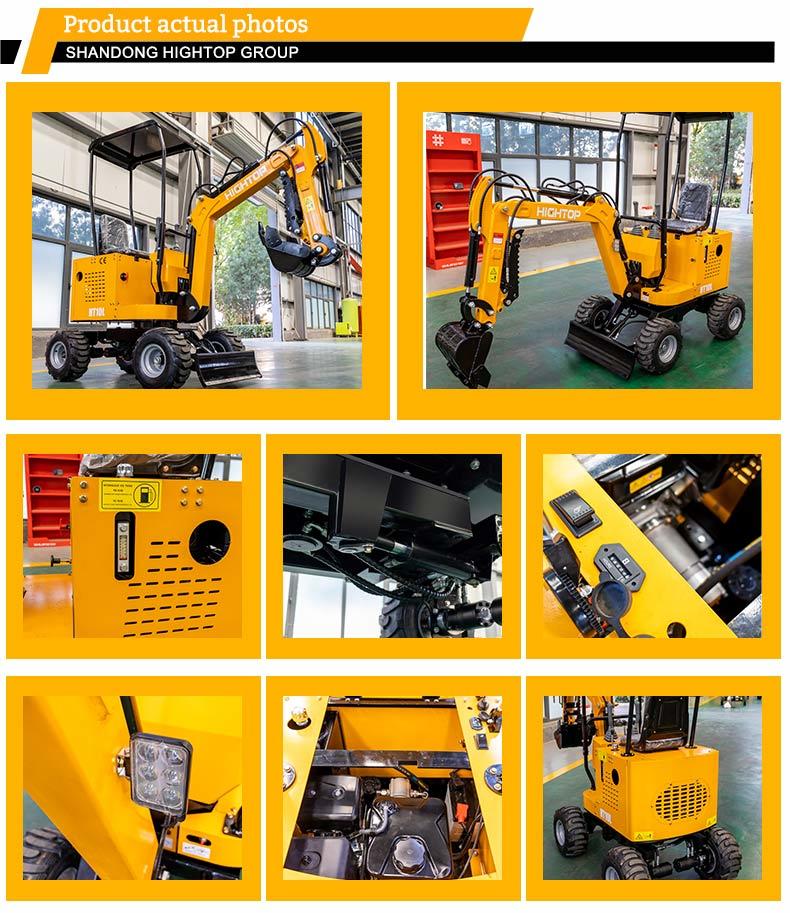

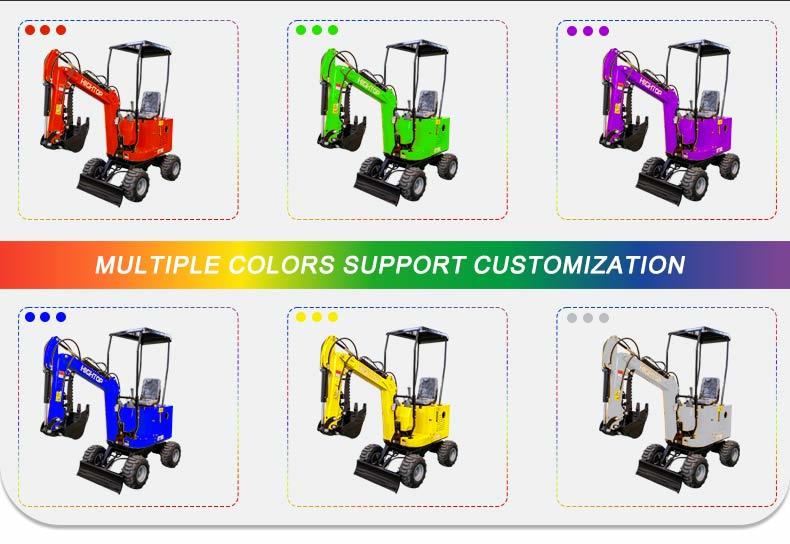

Product Images
