HTS25 Skid Steer Loader with 18.5 Kw Rated Power Zero Turning Radius
HTS25 Skid Steer Loader with 18.5 Kw Rated Power Zero Turning Radius
HTS25 Skid Steer Loader with 18.5 Kw Rated Power Zero Turning Radius
HTS25 Skid Steer Loader with 18.5 Kw Rated Power Zero Turning Radius
HTS25 Skid Steer Loader with 18.5 Kw Rated Power Zero Turning Radius
HTS25 Skid Steer Loader with 18.5 Kw Rated Power Zero Turning Radius
HTS25 Skid Steer Loader with 18.5 Kw Rated Power Zero Turning Radius
HTS25 Skid Steer Loader with 18.5 Kw Rated Power Zero Turning Radius
HTS25 Skid Steer Loader with 18.5 Kw Rated Power Zero Turning Radius
HTS25 Skid Steer Loader with 18.5 Kw Rated Power Zero Turning Radius
HTS25 Skid Steer Loader with 18.5 Kw Rated Power Zero Turning Radius
HTS25 Skid Steer Loader with 18.5 Kw Rated Power Zero Turning Radius
HTS25 Skid Steer Loader with 18.5 Kw Rated Power Zero Turning Radius
HTS25 Skid Steer Loader with 18.5 Kw Rated Power Zero Turning Radius
Specifications
Model Number :
HTS25
Engine Brand :
Laidong385
MOQ :
1 set
Delivery Time :
5-14 work days
Fuel tank Capacity (L) :
23
Payment Terms :
L/C,D/A,D/P,T/T
Brand Name :
Hightop
Model :
HTS25
Packaging Details :
Wooden case
Price :
Negotiation
Rated flux (L/min) :
36
Supply Ability :
100 set per month
Certification :
CE，EPA，ISO，TUV
Rated Power (Kw) :
18.5
Place of Origin :
China
Fueltank Capacity (L) :
23
Description

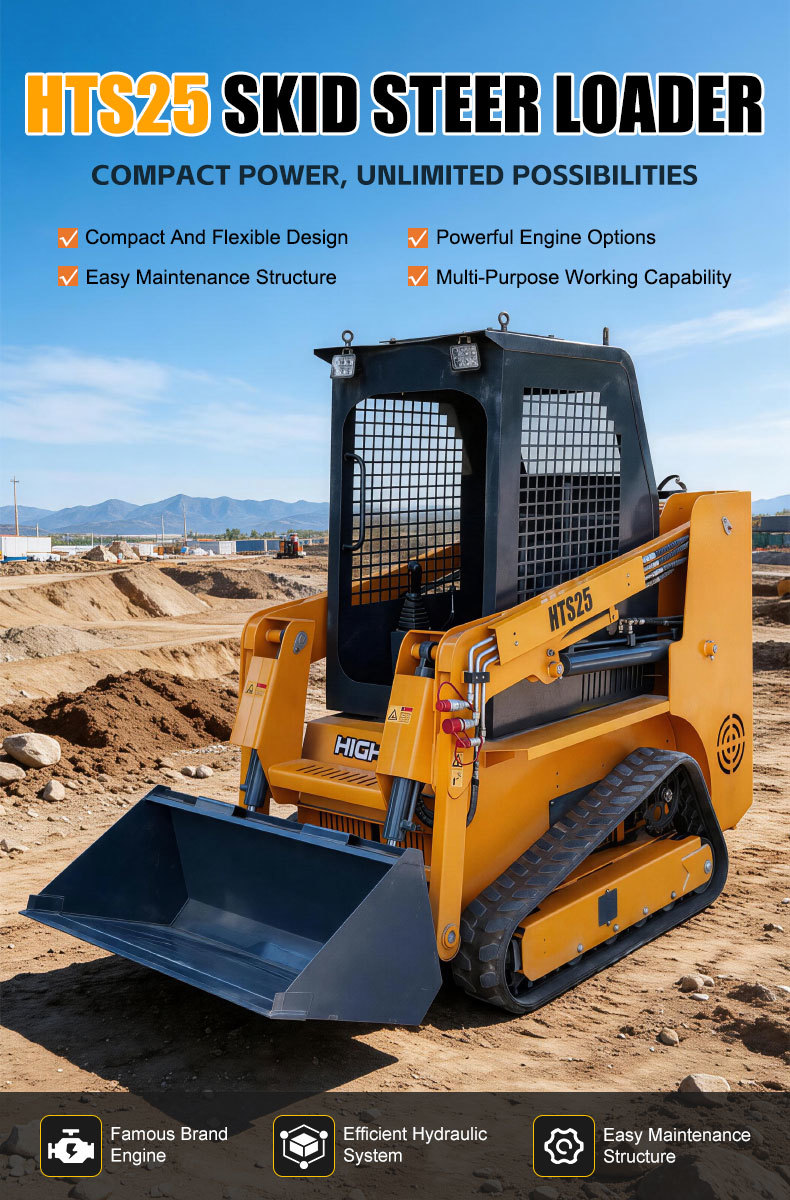

HTS25 Skid Steer Loader
The HTS25 is a compact sliding loader from Shandong Hightop, available in both crawler and wheeled configurations. This micro compact model utilizes differential sliding steering of the two side walking mechanisms, featuring a narrow body with an almost zero turning radius, making it ideal for operations in confined spaces.

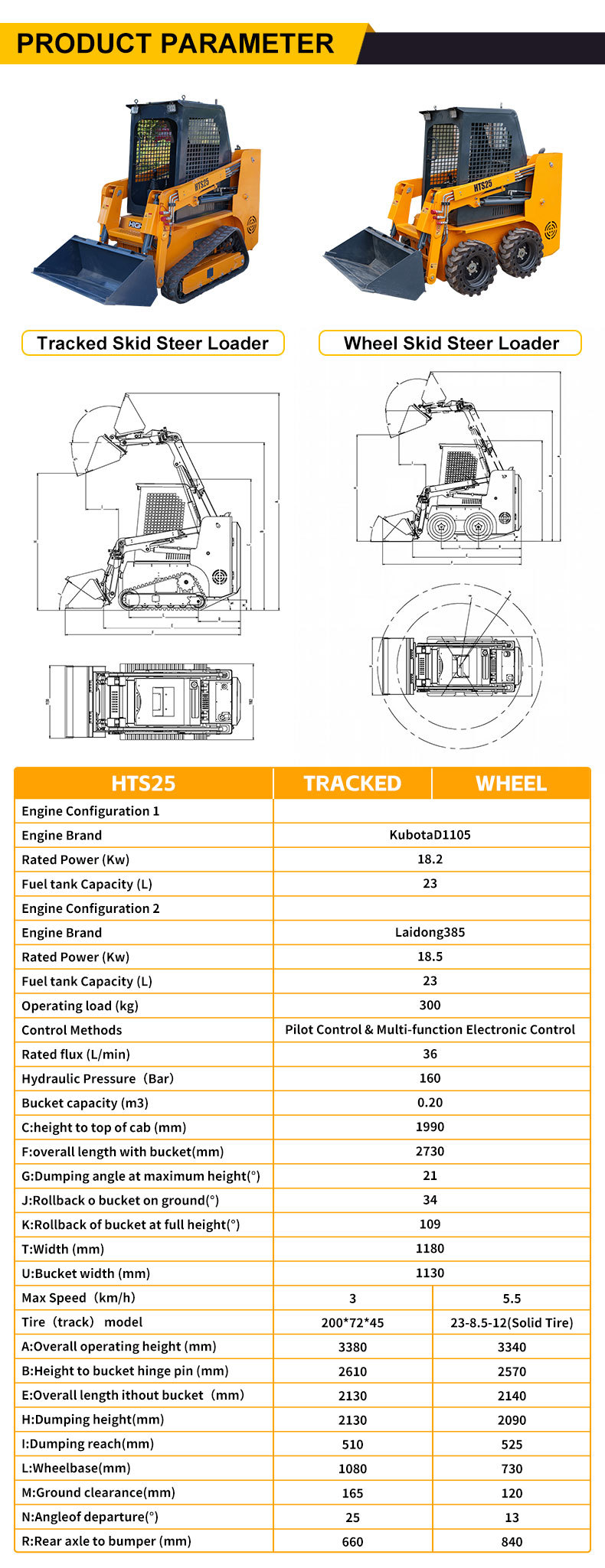

Technical Specifications
Specification Tracked Model Wheeled Model
Engine Configuration 1
Engine Brand Kubota D1105 Kubota D1105
Rated Power (Kw) 18.2 18.2
Fuel Tank Capacity (L) 23 23
Engine Configuration 2
Engine Brand Laidong 385 Laidong 385
Rated Power (Kw) 18.5 18.5
Fuel Tank Capacity (L) 23 23
Operating Load (kg) 300 300
Control Methods Pilot Control & Multi-function Electronic Control
Rated Flux (L/min) 36
Hydraulic Pressure (Bar) 160
Bucket Capacity (m³) 0.20
C: Height to Top of Cab (mm) 1990
F: Overall Length with Bucket (mm) 2730
G: Dumping Angle at Maximum Height (°) 21
J: Rollback of Bucket on Ground (°) 34
K: Rollback of Bucket at Full Height (°) 109
T: Width (mm) 1180
U: Bucket Width (mm) 1130
Max Speed (km/h) 3 5.5
Tire/Track Model 200*72*45 23-8.5-12 (Solid Tire)
A: Overall Operating Height (mm) 3380 3340
B: Height to Bucket Hinge Pin (mm) 2610 2570
E: Overall Length without Bucket (mm) 2130 2140
H: Dumping Height (mm) 2130 2090
I: Dumping Reach (mm) 510 525
L: Wheelbase (mm) 1080 730
M: Ground Clearance (mm) 165 120
N: Angle of Departure (°) 25 13
R: Rear Axle to Bumper (mm) 660 840
