Specifications
Max working height :
2120mm
Model Number :
HT380T
Max Dumping distance :
575mm
MOQ :
1 set
Delivery Time :
5-14 work days
Total height :
1350mm
Payment Terms :
L/C,D/A,D/P,T/T
Model :
HT380T
Brand Name :
Hightop
Packaging Details :
Wooden case
Max Dumping height :
1405mm
Place of Origin :
China
Max Dumping Angle :
35°
Price :
Negotiation
Ground clearance :
121mm
Supply Ability :
100 set per month
Max pin height :
1865 mm
Certification :
CE，EPA，ISO，TUV
Description

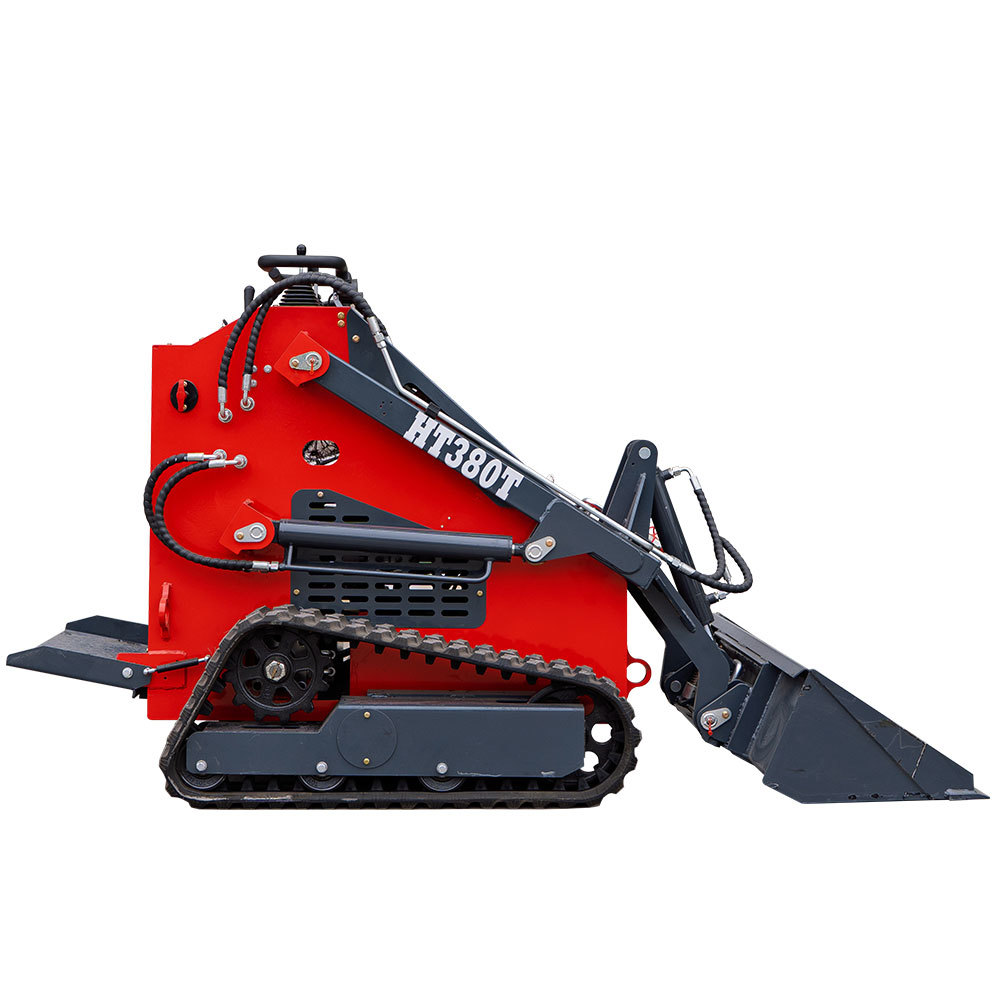

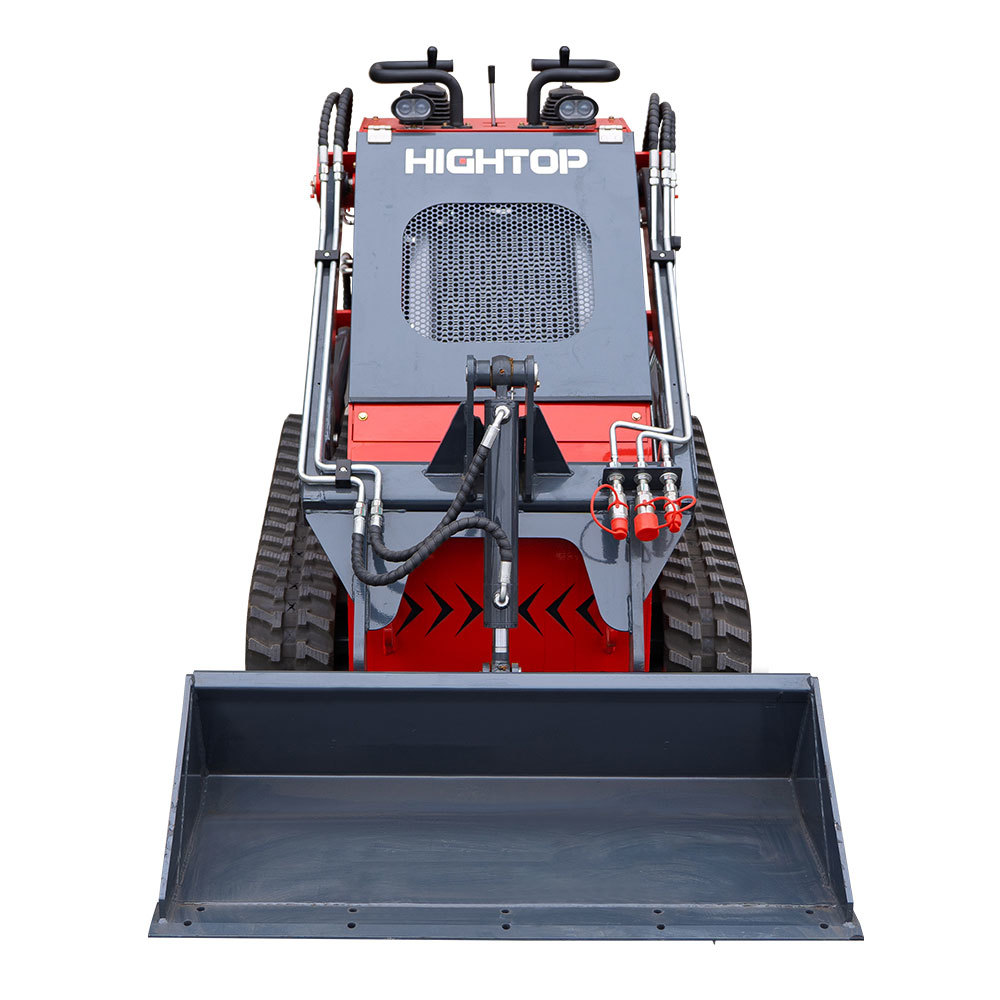

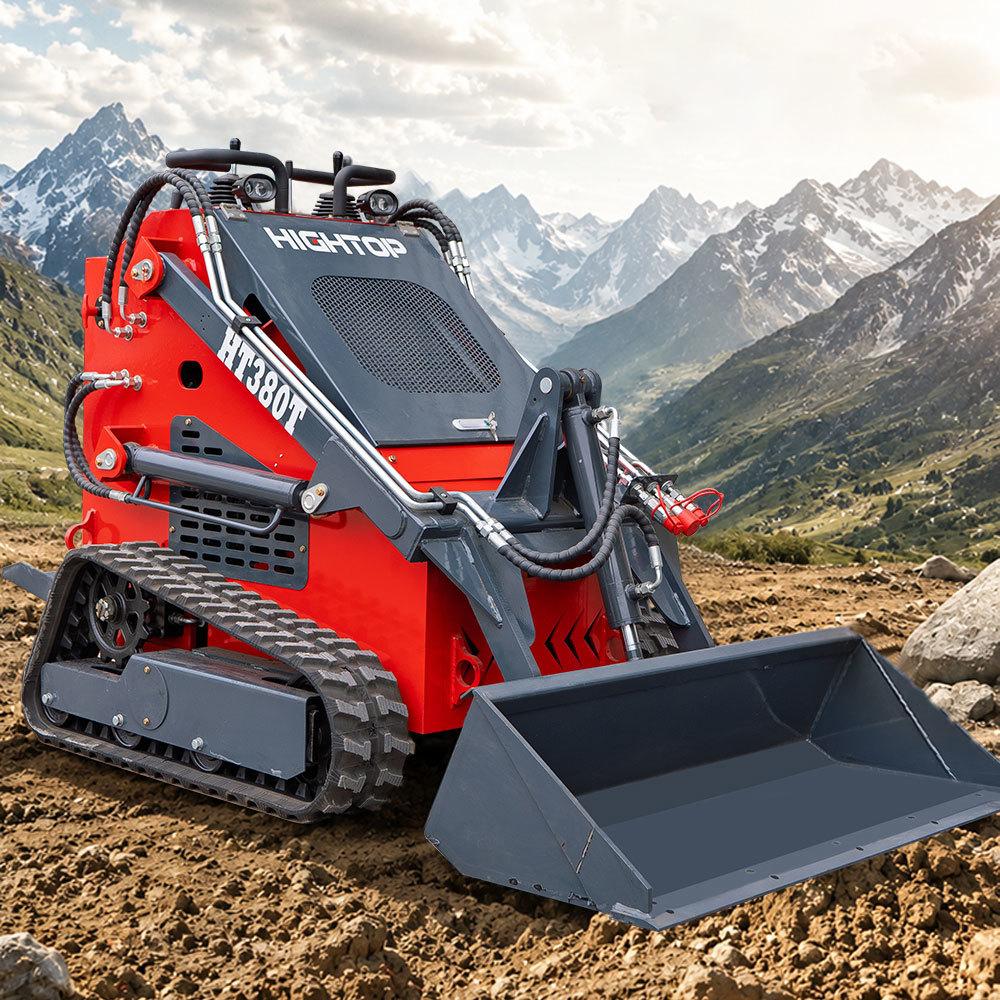

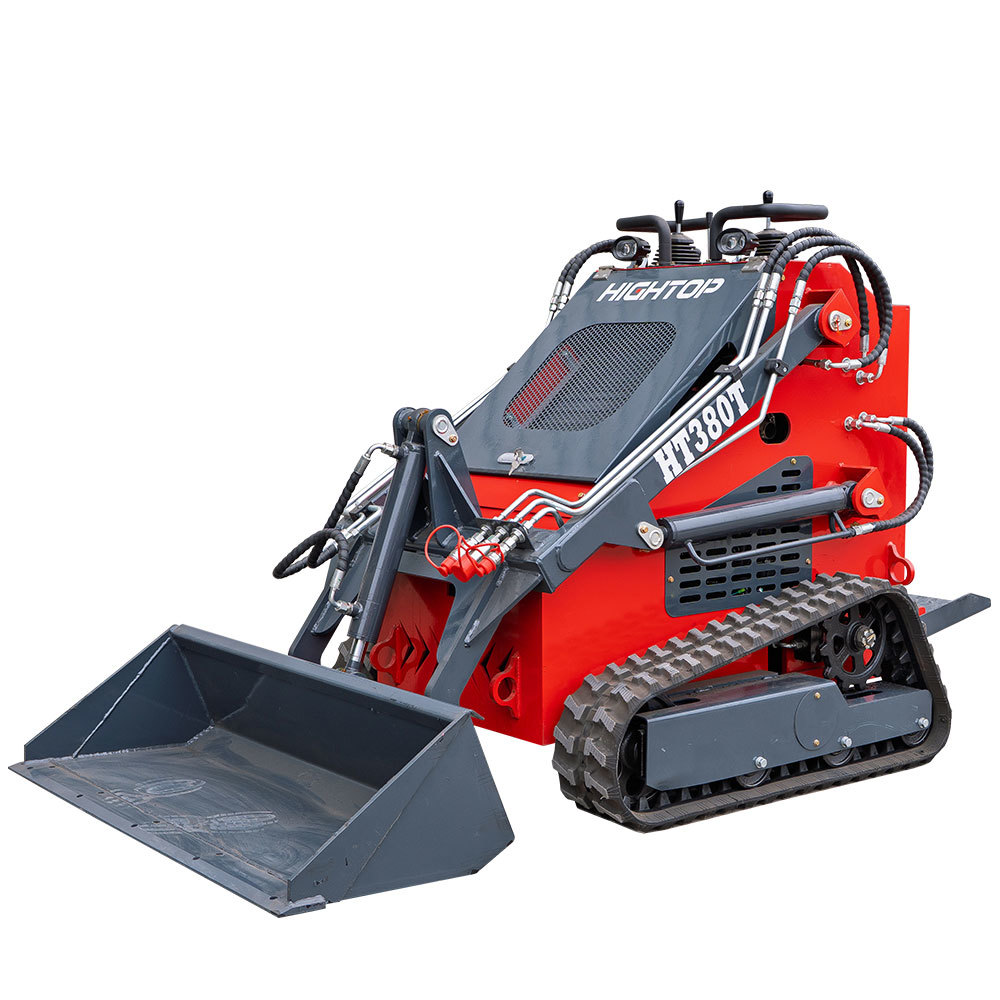

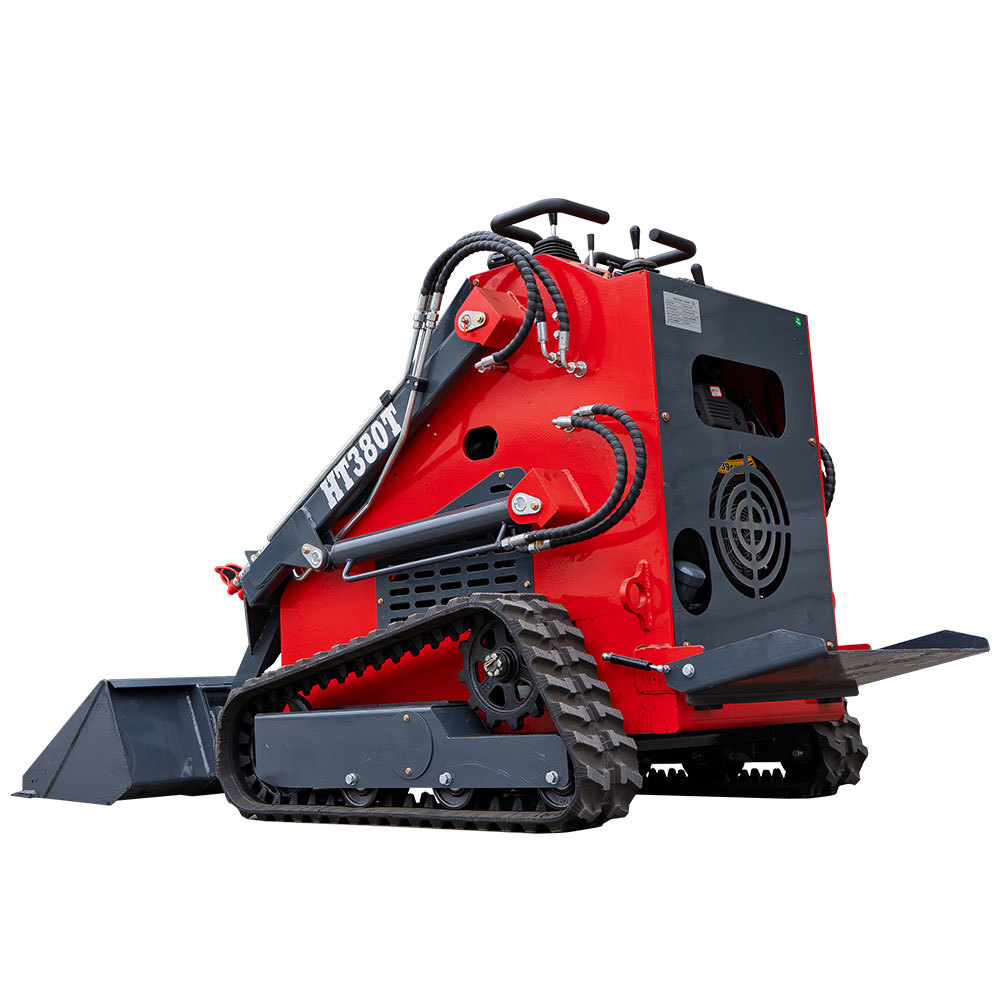

HT380T Skid Steer Loader

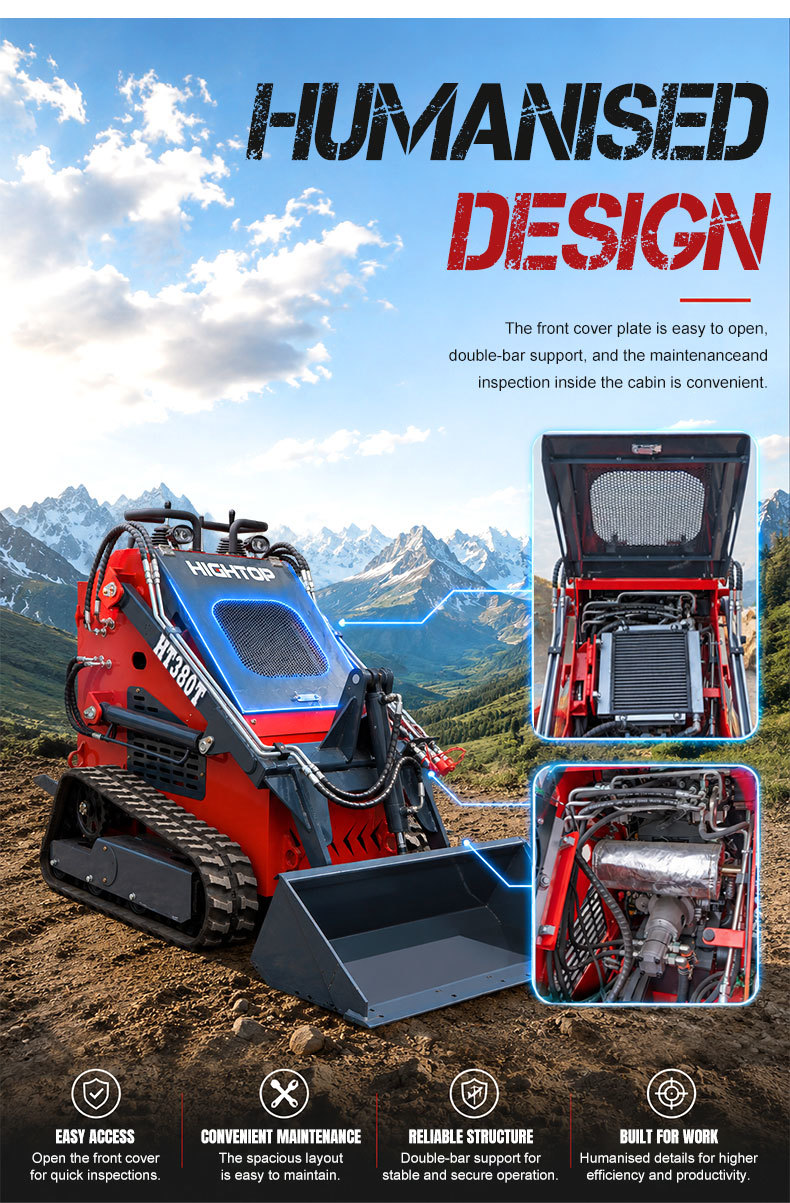

The HT380T is a compact rubber crawler skid steer loader manufactured by Shandong Hightop. This micro station-driven model features a narrow body and compact design, making it ideal for multi-purpose operations in confined spaces. Applications include garden and courtyard renovations, indoor demolition, small infrastructure construction, and farm cleaning operations.

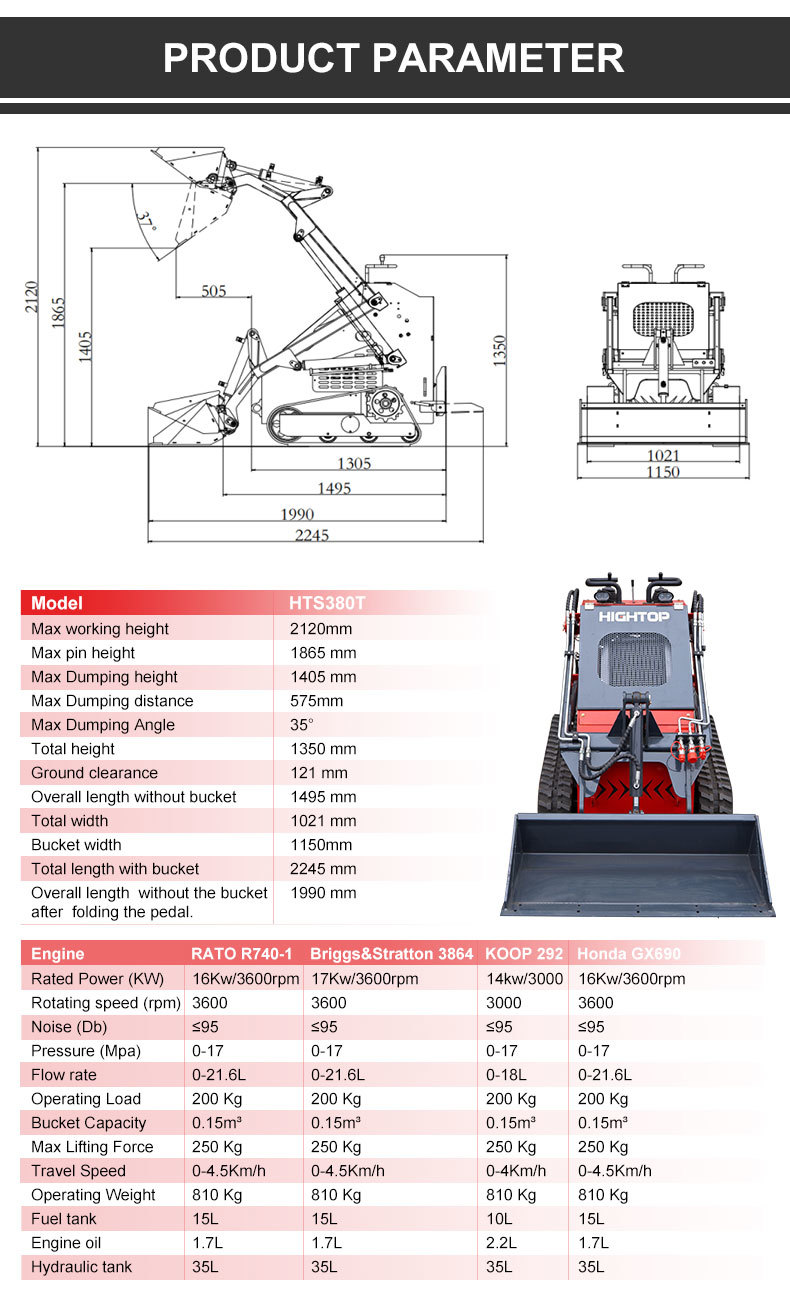

Technical Specifications
Specification Value
Model HTS380T
Max Working Height 2120mm
Max Pin Height 1865mm
Max Dumping Height 1405mm
Max Dumping Distance 575mm
Max Dumping Angle 35°
Total Height 1350mm
Ground Clearance 121mm
Overall Length Without Bucket 1495mm
Total Width 1021mm
Bucket Width 1150mm
Total Length With Bucket 2245mm
Overall Length Without Bucket After Folding Pedal 1990mm
Engine Options & Performance
Parameter RATO R740-1 Briggs & Stratton 3864 KOOP292 Honda GX690
Rated Power 16Kw/3600rpm 17Kw/3600rpm 14kw/3000rpm 16Kw/3600rpm
Rotating Speed 3600 rpm 3600 rpm 3000 rpm 3000 rpm
Noise ≤95 dB ≤95 dB ≤95 dB ≤95 dB
Pressure 0-17 Mpa 0-17 Mpa 0-17 Mpa 0-17 Mpa
Flow Rate 0-21.6L 0-21.6L 0-18L 0-21.6L
Operating Load 200 Kg 200 Kg 200 Kg 200 Kg
Bucket Capacity 0.15m³ 0.15m³ 0.15m³ 0.15m³
Max Lifting Force 250 Kg 250 Kg 250 Kg 250 Kg
Travel Speed 0-4.5 Km/h 0-4.5 Km/h 0-4.5 Km/h 0-4.5 Km/h
Operating Weight 810 Kg 810 Kg 810 Kg 810 Kg
Fuel Tank 15L 15L 10L 15L
Engine Oil 1.7L 1.7L 2.2L 1.7L
Hydraulic Tank 35L 35L 35L 35L

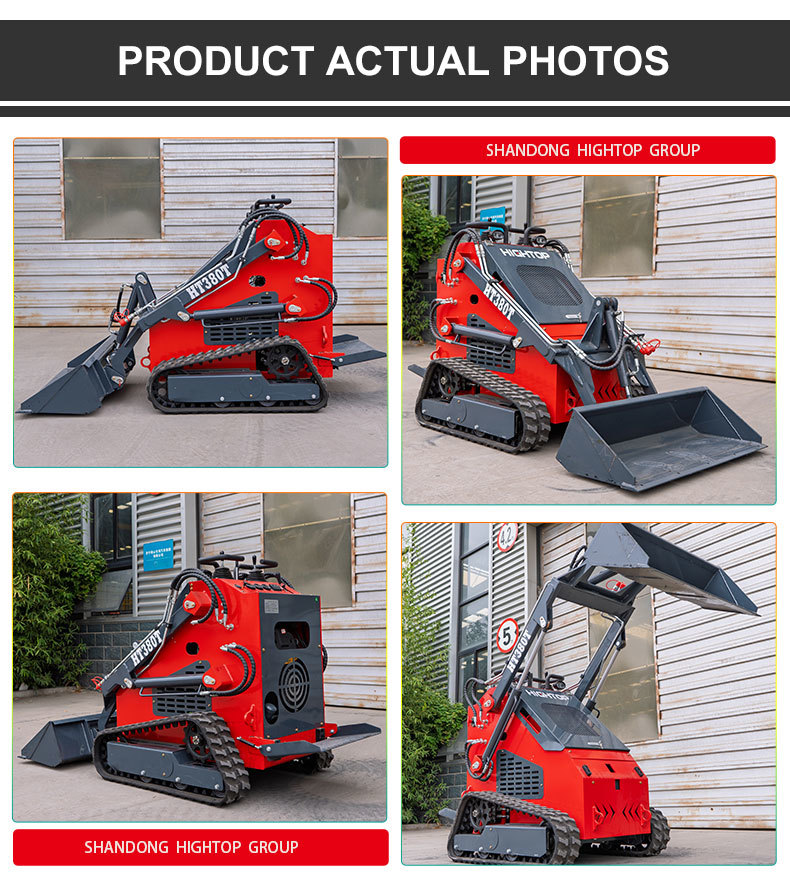

Product Images
