Product Overview

PA L64/14 is an Atmosphere Sintering Furnace.Carbon steel double sealed housing.1600# polycrystalline ceramic fiber chamber, equipped with a 310S box to prevent corrosive gases from corroding the furnace.Heating element uses SIC rod.Shimaden PID temperature controller,programmable 32 segments,high temperature control accuracy.Gas port uses 1/4" hose barb,work in air, inert gas and rough vacuum environment,Max 20000Pa.Atmosphere muffle furnaces are mainly used for material synthesis in laboratories or research institutes,providing an environment for various purposes in many heat treatment experiments.

Main Features

• TMax 1400°C
• 1600# polycrystalline ceramic fiber raw materials,CNC carved,high temperature resistance,efficient energy saving
• Carbon steel double sealed housing,furnace surface water cooling circulation,reduce surface temperature
• Multi-set air inlet and outlet,equipped with gas float flowmeter,stainless steel ball valve, silicone gasket and pressure gauge
• Double furnace door design, special sealing structure, stable working environment
• Built-in 310S box to prevent corrosive gases from corroding the furnace
• Available gases:H2, Ar, N2 etc
• SIC rod,both sides heating,uniform temperature field
• Heating rate 0℃-20℃/min adjustable
• Durable Type S Thermocouple,long service life
• Max 50000Pa
• Smart 32-segment programmable automatic temperature control
• Power off, over-temperature, thermocouple breaking and burnout protection
• CE certification

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

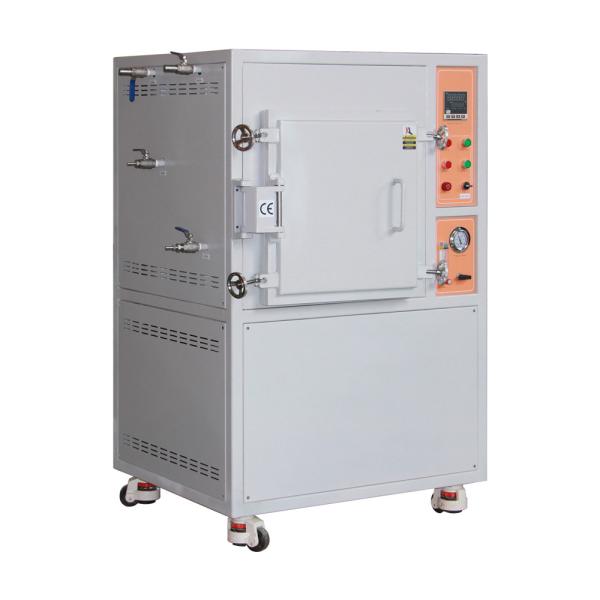

1400°C Atmosphere Sintering Furnace

• PA L64/14 Atmosphere Sintering Furnace consists of four parts: furnace body, atmosphere control system,temperature control system and water-cooling system system.
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.Furnace surface water cooling circulation,the surface temperature Rt+45℃.
• Siemens electrical components, long service life.
• Export quality, ISO,CE certified.

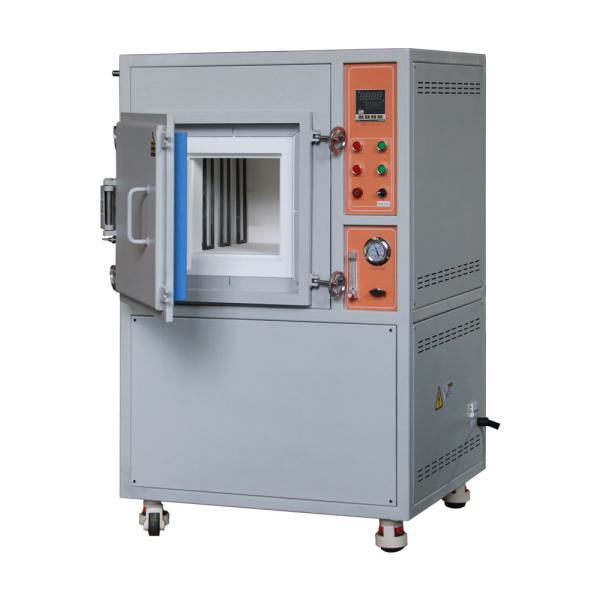

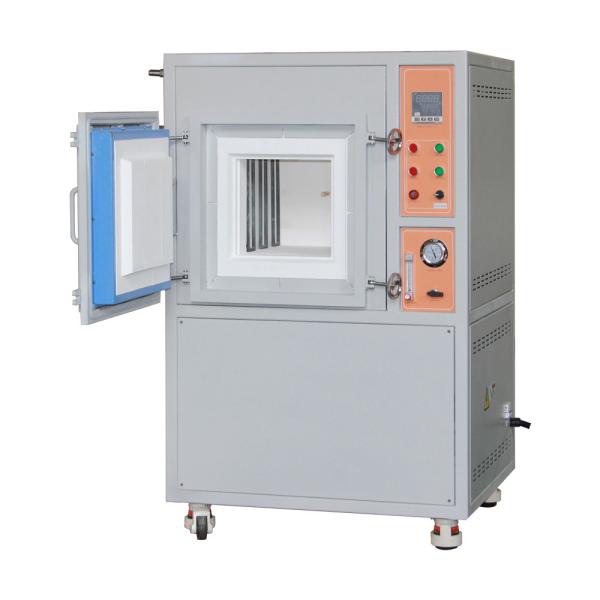

1400°C Atmosphere Sintering Furnace,Chamber​

• Chamber lining uses 1600# polycrystalline ceramic fiber raw materials,CNC carved.Square chamber,chamber walls tight coupling.
• Built-in 310S box,high corrosion resistance
• SIC rod heated,both sides heating,uniform temperature field,TMax 1400°C.
• S-type thermocouple,movable,meet temperature measurement requirements at different locations,long service life

1400°C Atmosphere Sintering Furnace,Individual set float flow control system

• Individual set of single channel gas supplying device,small size.Gas supply box panel is equipped with reserved gas inlet and outlet, pressure gauge and gas valve
• Double ferrule joints,connect to OD6mm stainless steel tube,gas float flowmeter,the flow rate is adjustable ranges 60-600ml/min
• Available gases: N2, Ar, H2, CO etc.​

NOTE:When filling reducing gases, check valves, one-way valves, exhaust gas treatment systems, etc. need to be configured

Technical Specifications

Application Notes

• Gas pressure in the furnace tube should not be higher than 0.02MPa.
• High gas cylinder pressure. Use pressure reducing valve when introducing gas to furnace.
• When using flammable and explosive gases for experiments, safety accessories must be equipped.
• When the operating temperature exceeds 1400℃, cold water circulation device must be installed.
• The equipment room must be well ventilated.
