Mesh Belt Conveyor Drying Furnace Up To 500C With SCR Power Silicon Controlled
Mesh Belt Conveyor Drying Furnace Up To 500C With SCR Power Silicon Controlled
Mesh Belt Conveyor Drying Furnace Up To 500C With SCR Power Silicon Controlled
Mesh Belt Conveyor Drying Furnace Up To 500C With SCR Power Silicon Controlled
Specifications
Brand Name :
Programtherm
Model Number :
PHT L120/5
Certification :
CE
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram
Delivery Time :
7 working days
Usage :
drying for small workpieces such as metals, ceramics continuously，complete removal of water or impurities
Working temperature :
500 degree C
Chamber size :
W300xD3000xH200mm
Prodution :
40KGS/hour
Chamber material :
Mitsubishi Raw Material high alumina 1500# fiber board
Heating elements :
SiC heating rods, two rows, upper and lower
Temp Controller :
Digital auto-tune PID 32 segments
Thermocouple :
N
Warranty :
18 months limited warranty with lifetime technical support
After-sales :
free spareparts including air freight
Description

Mesh Belt Conveyor Drying Furnace up to 500C

Overview for Mesh Belt Drying Furnace

Belt drying furnace is particularly suitable for drying for small workpieces such as metals, ceramics continuously, usually for the complete removal of water or impurities. Belt speed could be adjusted according to heat treatment processes.High alumina insulated chamber with SS 304 built mesh belt, controlled conveying speed, Max working temperature up to 500 degree C.

Main Features

  • RT-500°C, adjustable, constant temperature, independent temperature control Intelligent temperature controller, PID automatic calculation, LED display, with SCR power silicon controlled, can accurately control the precision of temperature
  • Interior is made of high quality thermal insulation materials with good thermal insulation effect;
    SS304 made mesh belt conveyor
  • SiC heating rods, two rows, upper and lower, max heating temperature 500 C
  • Double over temperature protection, safe and reliable electrical control
  • Prodution output: 40kg/hour, Conveying speed is stable and adjustable
  • Two-point heating zones, heating length 2000mm

Mesh Belt Conveyor Drying Furnace Up To 500C With SCR Power Silicon Controlled

Safety Measures

  • Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
  • Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
  • Power failure protection resumes furnace operation right after the point of failure when power is reestablished
  • Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product illustration

Mesh Belt Conveyor Drying Furnace Up To 500C With SCR Power Silicon Controlled

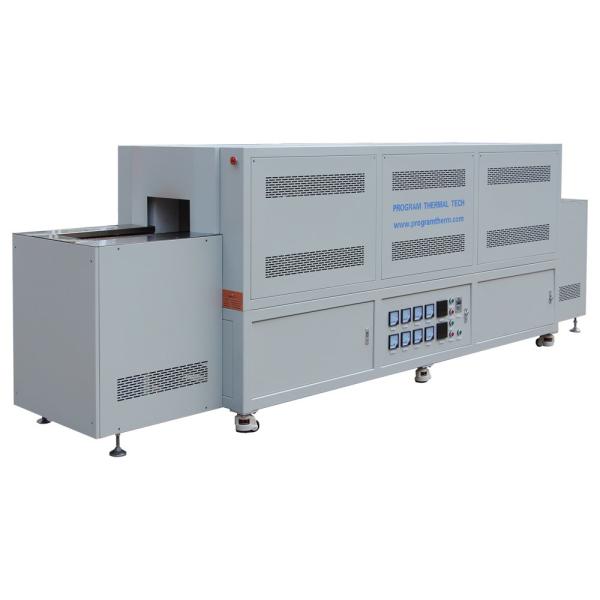

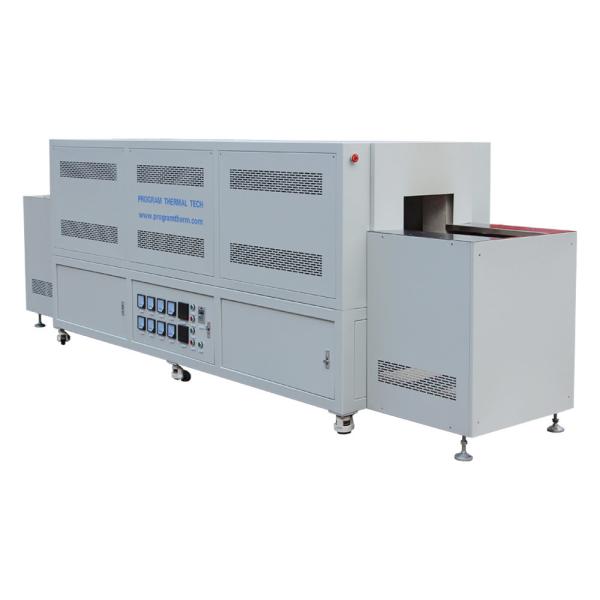

Side views for 500°C Mesh Blet Drying Furnace

Mesh Belt Conveyor Drying Furnace Up To 500C With SCR Power Silicon Controlled

Heating Chamebr details for the 500°C Mesh Blet Drying Furnace

Technical Specifications

Model No. PHT L120/5
Chamber size (DxWxH)

3000x300x200mm /120x12x8″
heating length 2000mm, Belt width 300mm, height 200mm
two heating zone
Power supply 35KW
AC380V, 50/60Hz, 3 phase
Working temperature

Tmax 600°C (1112°F)

Continuously 500°C (932°F)

Temperature uniformity +/- 5C
Temperature controller

Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°C
Heating rate ≤25°C /min
Thermocouple N type(2pcs)
Chamber lining Mitsubishi Raw Material high alumina 1500# fiber board
Conveyor system SS304 made mesh belt chain
Conveyor speed: 25-50 mm/min adjustable
Metal particals were loaded into the SS304 made saggers putting on the mesh belt
Electronic components

Siemens maker air switch

Schneider AC contactor, SSR Relay etc.
Heating element SS304 heating tubes
Shipping info

Weight: 1300 kgs
W4800xL1300xH1750mm
Compliance CE, ISO
Warranty 18 months limited warranty with lifetime support

Application Notes

  • However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with the mesh belt drying furnace without necessary safety controls and supervision.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison

Item name PHT L150/6 PHT L300/6 PHT L700/6
Inner size (DxWxH) 2500x300x200mm 3000x500x200mm 3500x1000x200mm
Capacity 150 L 300 L 700 L
Power 380V/30KW 380V/45KW 380V/70KW
Furnace dimensions (LxWxH) 5300x1000x1500mm 6100x1130x1550mm 6700x1630x1700mm
Weight 3000 KGS 3800 KGS 5600 KGS
