Specifications
Payment Terms :
T/T
Cable Spec :
4x20AWG
Overall Screen :
TCWB tinned copper wire braiding
Brand Name :
DINGZUN CABLE
Rated Temperature :
250°C continuous
Model Number :
D559 AFPF250-X
Rated Voltage :
600V
Packaging Details :
By Carton, Drum, or Wooden Box
MOQ :
300meters
Delivery Time :
5-20DAYS
Sheath :
PFA compound, white
Insulation :
PFA compound
Place of Origin :
Shanghai, China
Price :
To be negotiated
Conductor :
TC tinned copper, IEC 60228 Class 2
Supply Ability :
10000Meters/DAY
Cable Type :
HEAT 250 High temperature multicore cable
Keyword :
PFA shielded cable
Certification :
UL CE ISO9001
Description

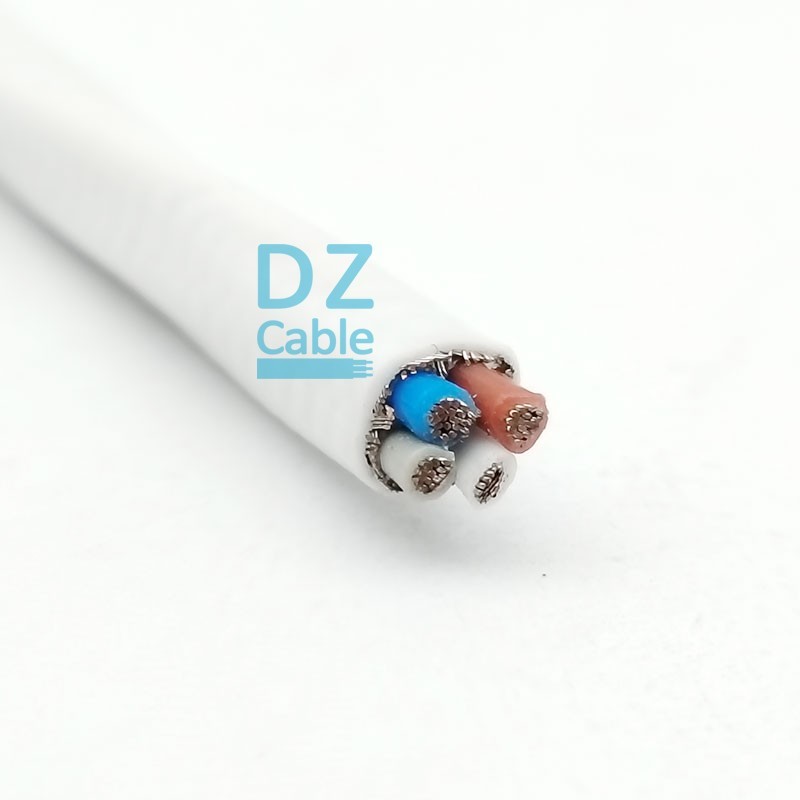

High Temperature Multicore Cable Heat 250 – TC/PFA/TCWB/PFA 4x20AWG Rated 600V 250°C
This high temperature multicore cable features four 20AWG conductors in a fully PFA-insulated and sheathed construction, specifically engineered for continuous operation at 250°C with 600V rating and comprehensive EMI protection.
High Temperature Multicore PFA Shielded Cable with 250°C Continuous Operation, 600V Rated Voltage, and EMI/RFI Protection
Key Features & Technical Advantages
  • 4 x 20AWG multicore for signal and control applications
  • TC tinned copper Class 2 conductors for conductivity and mechanical strength
  • PFA insulation for 250°C continuous operation and chemical resistance
  • Overall TCWB tinned copper braid screen for EMI/RFI protection
  • White PFA sheath for high temperature performance and clean appearance
  • 600V rating for industrial instrumentation
  • Excellent chemical resistance to oils, acids, and aggressive fluids
  • Halogen-free, flame retardant
Typical Applications – Solving Critical Extreme Heat Challenges
  • Industrial Furnaces: Provides reliable signal and control wiring for furnace monitoring and control systems
  • Aerospace Systems: Supports high temperature instrumentation and control in aircraft and spacecraft
  • Semiconductor Manufacturing: Delivers clean, high temperature cabling for wafer processing equipment
  • Petrochemical Processing: Provides chemical-resistant cabling for aggressive high temperature environments
  • Power Generation: Enables reliable connections for turbine and boiler monitoring systems
  • Laboratory Instruments: Supplies durable, chemical-resistant cabling for research equipment
