Specifications
Payment Terms :
T/T
Cable Structure :
4x28AWG
Coloroptions :
Red, Black, White, Blue
Packaging Details :
By Carton, Drum, or Wooden Box
Brand Name :
DINGZUN CABLE
Shielding Type :
Spiral shielding TCWS
Model Number :
D547
Shielding Material :
Tinned Copper Wire
MOQ :
1000meters
Delivery Time :
5-20DAYS
Stranded :
Stranded
Price :
To be negotiated
Conductor :
TC tinned copper 37/0.05 ultra-fine stranded
Supply Ability :
10000Meters/DAY
Cable Type :
TC/PP/TCWS/TPU multicores
Sheath :
TPU sheath black for abrasion, oil, and hydrolysis resistance
Certification :
UL CE ISO9001
Insulation :
PP (polypropylene) compound
Place of Origin :
China
Description

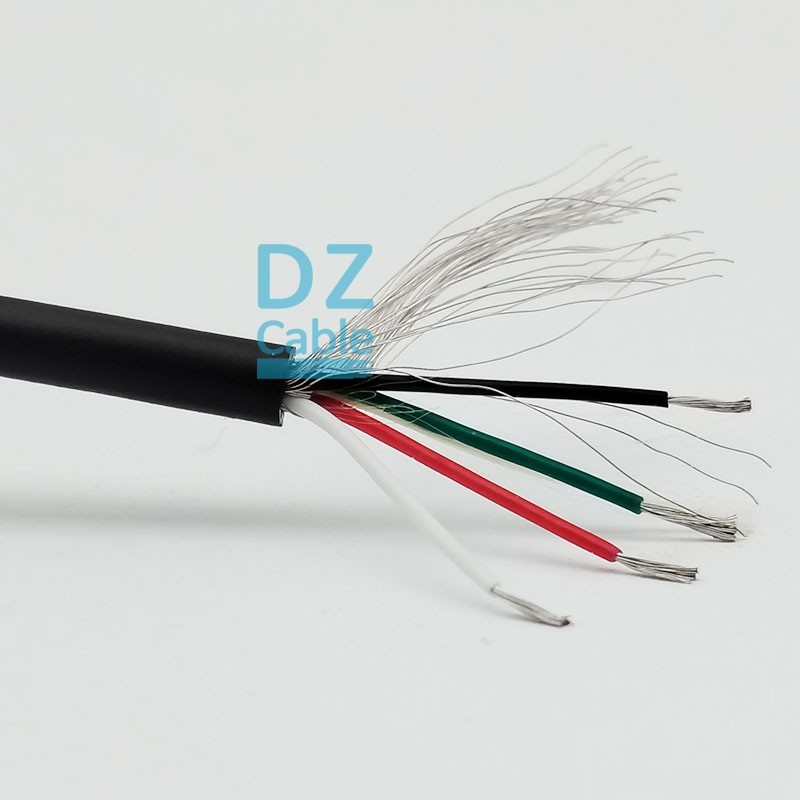

Multicores Custom Shielded Cable – Flexible Spiral Screen Cable 4x28AWG TC/PP/TCWS/TPU
Premium multicore custom shielded cable 4x28AWG with flexible spiral screen. TC 37/0.05 conductors, PP insulation, TCWS spiral shield, black TPU sheath. High flexibility.
Product Specifications
Component Specification
Conductor TC Tinned Copper 37/0.05
Insulation PP Insulation
Overall Screen TCWS Tinned Copper Wire Screen Spiral Shield
Sheath TPU Sheath Black
This multicore custom shielded cable features 4 conductors of 28AWG with a flexible spiral screen construction, specifically engineered for dynamic applications requiring high flexibility, reliable signal transmission, and effective EMI protection in continuous motion environments.
Multicore Shielded Cable 4x28AWG with TCWS Spiral Shield and TPU Sheath for High Temperature Applications
Key Features & Technical Advantages
  • 4 x 28AWG multicore configuration for multi-channel signal transmission
  • TC tinned copper 37/0.05 ultra-fine stranded conductors for maximum flexibility
  • PP insulation for low capacitance and stable electrical properties
  • TCWS spiral shield for flexible EMI protection
  • TPU sheath black for abrasion, oil, and hydrolysis resistance
  • Designed for continuous flexing and dynamic applications
  • High flexibility with reliable signal integrity
Why Choose This Spiral Shielded Cable
This cable combines ultra-fine stranded conductors with a flexible spiral shield for exceptional performance in dynamic applications.
Typical Applications – Solving Critical Dynamic Challenges
  • Robotics: Provides flexible, shielded signal transmission for robotic arms and joints in continuous motion
  • Automation Equipment: Delivers reliable multi-channel signal connections for automated machinery and production lines
  • Motion Control Systems: Enables accurate encoder and sensor signal transmission in dynamic applications
  • Portable Equipment: Supplies durable, flexible cabling for handheld and portable electronic devices
  • Medical Devices: Provides flexible, shielded connections for medical instruments requiring repeated flexing
  • Test and Measurement: Delivers reliable signal transmission for dynamic testing applications
