Flexible Silicone Shielded High Temperature Cable 4 Conductor 600V 200°C for Aerospace Instrumentation
Flexible Silicone Shielded High Temperature Cable 4 Conductor 600V 200°C for Aerospace Instrumentation
Flexible Silicone Shielded High Temperature Cable 4 Conductor 600V 200°C for Aerospace Instrumentation
Flexible Silicone Shielded High Temperature Cable 4 Conductor 600V 200°C for Aerospace Instrumentation
Flexible Silicone Shielded High Temperature Cable 4 Conductor 600V 200°C for Aerospace Instrumentation
Flexible Silicone Shielded High Temperature Cable 4 Conductor 600V 200°C for Aerospace Instrumentation
Flexible Silicone Shielded High Temperature Cable 4 Conductor 600V 200°C for Aerospace Instrumentation
Flexible Silicone Shielded High Temperature Cable 4 Conductor 600V 200°C for Aerospace Instrumentation
Flexible Silicone Shielded High Temperature Cable 4 Conductor 600V 200°C for Aerospace Instrumentation
Flexible Silicone Shielded High Temperature Cable 4 Conductor 600V 200°C for Aerospace Instrumentation
Flexible Silicone Shielded High Temperature Cable 4 Conductor 600V 200°C for Aerospace Instrumentation
Flexible Silicone Shielded High Temperature Cable 4 Conductor 600V 200°C for Aerospace Instrumentation
Specifications
Model Number :
D547
Insulation :
FEP high temperature compound
Chemical Resistance :
Good resistance to oils and chemicals
MOQ :
300meters
Delivery Time :
5-20DAYS
Conductor Type :
Stranded
Price :
To be negotiated
Cable Spec :
4x0.20mm²
Conductor Material :
SPC silver plated copper
Temperature Range :
-60°C to +200°C
Payment Terms :
T/T
Cable Structure :
SPC/FEP/PTFE/OSCR/SiR
Cores :
4
Supply Ability :
10000Meters/DAY
Cable Type :
Flexible Silicone Shielded High Temperature Cable
Voltage :
600V
Application :
Aerospace Instrumentation cable
Screen :
SPC wire braiding
Place of Origin :
China
Sheath :
SiR silicone rubber flexible compound
Certification :
UL CE ISO9001
Brand Name :
DINGZUN CABLE
Binder :
PTFE high temp tape
Packaging Details :
By Carton, Drum, or Wooden Box
Description

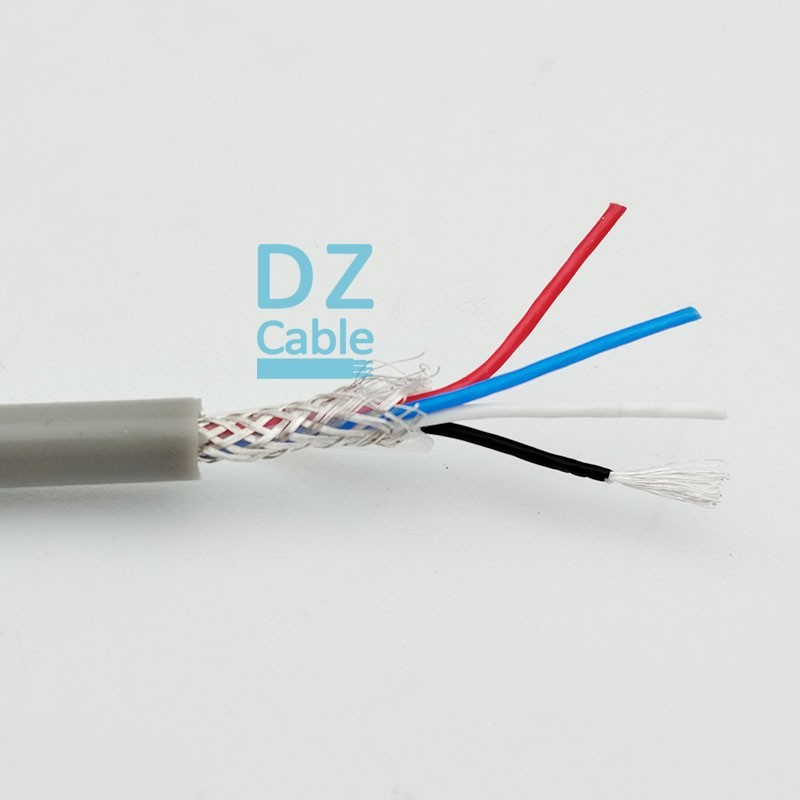

Flexible Silicone Shielded High Temperature Cable – 4 Conductor SPC/FEP/PTFE/OSCR/SiR 4x0.20mm² Rated 600V 200°C

Premium flexible silicone shielded high temperature cable 4x0.20mm². SPC silver plated conductors, FEP insulation, SPC braid screen, silicone grey sheath. 600V 200°C.

This high-performance flexible silicone shielded cable features four conductors of 0.20mm² in a compact shielded construction, specifically engineered for high temperature instrumentation and signal transmission applications requiring 600V rating, 200°C continuous operation, and robust EMI protection with non-magnetic properties.

Flexible Silicone Shielded High Temperature Cable 4 Conductor 600V 200°C for Aerospace Instrumentation
Key Features & Technical Advantages
  • 4 x 0.20mm² for multi-channel signal transmission
  • SPC silver plated copper 42/0.08 ultra-fine conductors for maximum flexibility
  • FEP insulation for 200°C+ thermal stability and low dielectric loss
  • PTFE tape binder for high temperature core stability
  • OSCR SPC silver plated wire braid screen for EMI protection
  • SiR silicone grey sheath for flexibility and weather resistance
  • 600V rating for industrial instrumentation
  • 200°C continuous operation
  • Non-magnetic construction
Why Choose This High Temp Shielded Cable

This cable delivers exceptional signal integrity in high temperature environments with non-magnetic performance. The SPC 42/0.08 ultra-fine conductors provide maximum flexibility for tight routing. FEP insulation ensures stable electrical properties at 200°C. The SPC braid screen offers comprehensive EMI protection without compromising non-magnetic characteristics. PTFE tape binder maintains core stability at extreme temperatures. The silicone grey sheath provides flexibility and weather resistance. As a specialised manufacturer, we control all production stages, offering custom configurations and technical support for your specific high temperature requirements.

Typical Applications - Solving Critical High Temperature Signal Challenges
  • Aerospace Instrumentation: Provides non-magnetic, high temp cabling for aircraft sensors and flight test instrumentation
  • Medical Device Miniaturisation: Supports compact, high temp cabling for medical instruments in extreme environments
  • High Temp Industrial Monitoring: Supplies compact cabling for furnace and process monitoring sensors
  • Research Laboratory Sensors: Enables multi-channel signal transmission in high temperature experimental setups
  • Semiconductor Manufacturing: Provides clean, high temp connections for wafer processing equipment
  • Nuclear Facility Instrumentation: Enables radiation-resistant, high temp signal transmission
Request a Quote or Custom Specification

Ready to specify this flexible silicone shielded high temperature cable for your application? Contact our technical sales team today.

Email Us: patrick@dingzuncable.com

Call: +86 180 1937 7761

Request a Custom Quote: Click here to know more.

Frequently Asked Questions
Q1: What is the temperature rating of this cable?
A: FEP insulation and silicone sheath provide 200°C continuous operation, with SPC conductors maintaining performance at elevated temperatures.
Q2: What is the advantage of SPC silver plated conductors?
A: SPC offers high conductivity, excellent oxidation resistance at high temperatures, and non-magnetic properties essential for sensitive instrumentation.
Q3: Why is OSCR SPC braid shielding specified?
A: SPC silver plated wire braid provides comprehensive EMI/RFI protection while maintaining non-magnetic characteristics critical for precision measurements.
Q4: What is the purpose of the PTFE tape binder?
A: PTFE tape maintains core geometry, prevents core migration during flexing, and adds mechanical stability at extreme temperatures.
Q5: What is the voltage rating of this cable?
A: Rated at 600V, suitable for instrumentation and control applications in high temperature industrial environments.
