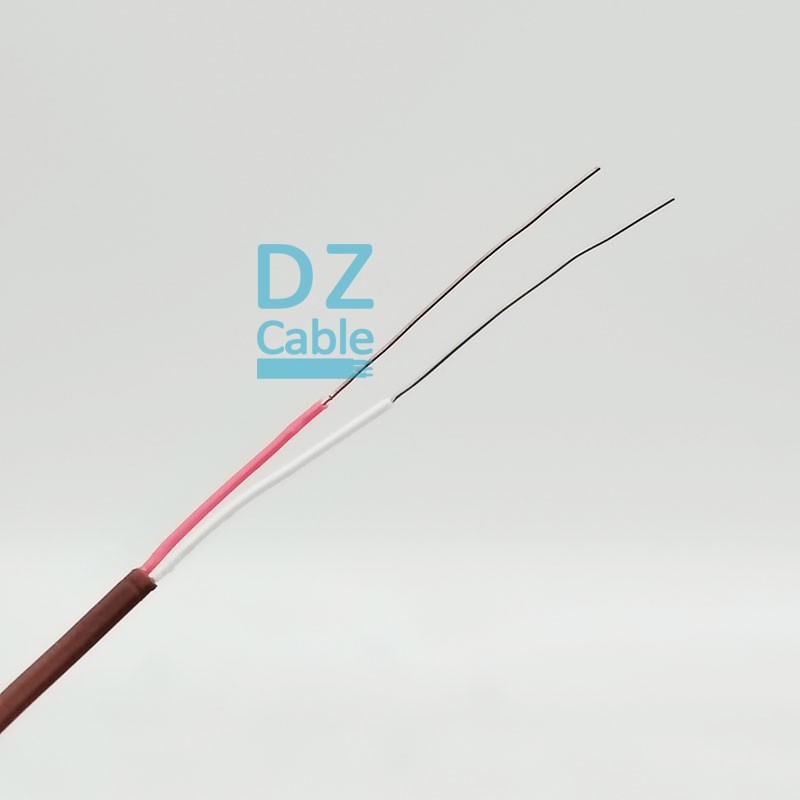

Thermocouple Cable Type T – PVC Laid Flat 1 Pair 20AWG Temperature Measuring Cable
Thermocouple Cable Type T – PVC Laid Flat 1 Pair 20AWG Temperature Measuring Cable
Thermocouple Cable Type T – PVC Laid Flat 1 Pair 20AWG Temperature Measuring Cable
Thermocouple Cable Type T – PVC Laid Flat 1 Pair 20AWG Temperature Measuring Cable
Thermocouple Cable Type T – PVC Laid Flat 1 Pair 20AWG Temperature Measuring Cable
Thermocouple Cable Type T – PVC Laid Flat 1 Pair 20AWG Temperature Measuring Cable
Thermocouple Cable Type T – PVC Laid Flat 1 Pair 20AWG Temperature Measuring Cable
Thermocouple Cable Type T – PVC Laid Flat 1 Pair 20AWG Temperature Measuring Cable
Thermocouple Cable Type T – PVC Laid Flat 1 Pair 20AWG Temperature Measuring Cable
Thermocouple Cable Type T – PVC Laid Flat 1 Pair 20AWG Temperature Measuring Cable
Specifications
Standards :
ANSI / IEC
Supply Ability :
10000Meters/DAY
Cable Spec :
1 pair x 20 AWG solid
Model Number :
D540
Construction :
2 cores laid flat
Keyword :
Type T thermocouple cable manufacturer
MOQ :
300meters
Delivery Time :
5-20DAYS
Temperature Range :
-10°C to +105°C
Payment Terms :
T/T
Overall Sheath :
PVC compound
Price :
To be negotiated
Conductor :
Copper(+) & Constantan(-), solid
Certification :
UL CE ISO9001
Cable Type :
Type T thermocouple cable
Brand Name :
DINGZUN CABLE
Insulation :
PVC compound
Place of Origin :
China
Packaging Details :
By Carton, Drum, or Wooden Box
Description
Type T Thermocouple Cable – 20 AWG Solid Conductor, PVC Insulation, Laid Flat Construction, Ultra Fine 1 Pair Temperature Measuring Cable, Conductor: Copper (+) and Constantan (-) Solid, Insulation: PVC Compound, Construction: 2 Cores Laid Flat, Overall Sheath: PVC Compound, Temperature Range: -10°C to +105°C, Standards: ANSI / IEC

Premium Type T thermocouple cable, 20 AWG solid conductor, PVC insulated flat pair. -10°C to +105°C, ultra-fine, flexible, and waterproof. Ideal for temperature measurement and extension applications. This Type T thermocouple cable features a 20 AWG solid conductor ultra-fine flat pair construction, specifically engineered for general-purpose temperature measurement and extension applications requiring flexibility, waterproofing, and reliable signal transmission.

Key Features & Technical Advantages
  • Type T thermocouple: Copper (+) and Constantan (-) solid 20 AWG conductors
  • PVC insulation and overall sheath for flexibility and waterproofing
  • Laid flat construction for space-saving installation and consistent spacing
  • Temperature range -10°C to +105°C for general-purpose applications
  • Ultra-fine design for routing in confined spaces and control panels
  • Colour coded per ANSI or IEC standards for polarity identification
Why Choose This Type T Flat Pair Cable

This PVC-insulated Type T cable provides a cost-effective and flexible solution for general-purpose temperature measurement applications.

Typical Applications – Solving Critical Temperature Measurement Challenges
  • Temperature Sensors and Probes: Enables reliable Type T thermocouple connections for industrial and laboratory temperature sensors
  • Food Processing: Provides accurate temperature measurement for food thermometers and processing equipment
  • Boiler and Heating Systems: Supplies reliable connections for boiler temperature monitoring and HVAC control
  • HVAC Systems: Delivers consistent temperature measurement for building automation and environmental control
  • Industrial Control Panels: Enables space-efficient thermocouple wiring in control cabinets and panel installations
  • Data Logging: Provides clean signal transmission for temperature data acquisition systems
Request a Quote or Custom Specification

Ready to specify this Type T thermocouple cable for your application? Contact our technical sales team today.

Frequently Asked Questions
Q1: What is the temperature range of this PVC-insulated Type T cable?

A: PVC insulation provides an operating range of -10°C to +105°C, suitable for general-purpose indoor temperature measurement applications .

Q2: What is the advantage of solid 20 AWG conductors?

A: Solid conductors provide stable thermoelectric characteristics, low resistance, and consistent signal transmission for accurate temperature measurement.

Q3: What is the difference between ANSI and IEC color coding?

A: ANSI standard: positive wire blue, negative wire red, overall brown . IEC standard: positive wire brown, negative wire white, overall brown . Both are available upon request.

Q4: Is this cable suitable for outdoor or wet environments?

A: PVC insulation is waterproof and flexible, making it suitable for general-purpose indoor and protected outdoor applications where temperatures remain within -10°C to +105°C .

Q5: What is the difference between thermocouple grade and extension grade?

A: Thermocouple grade is used for the sensor itself in the process environment; extension grade is used to connect from the probe to instrumentation in cooler areas. Both use the same thermoelectric alloys for accurate signal transmission.
