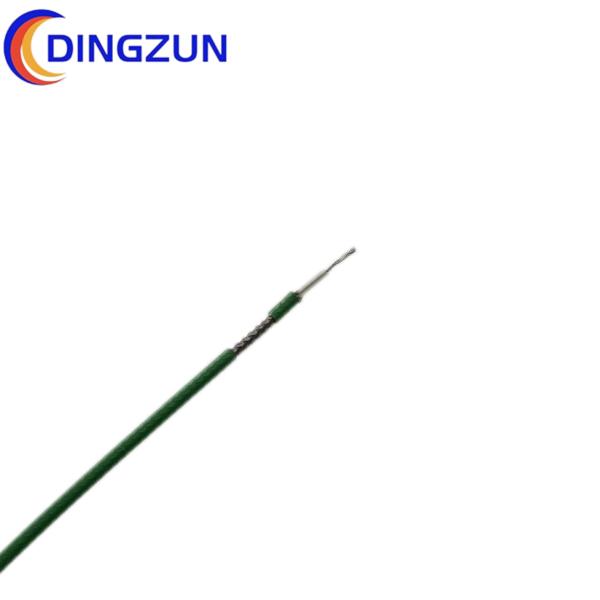

RG316 Low Loss Coaxial Cable For Signal Transmission
RG316 Low Loss Coaxial Cable For Signal Transmission
RG316 Low Loss Coaxial Cable For Signal Transmission
RG316 Low Loss Coaxial Cable For Signal Transmission
RG316 Low Loss Coaxial Cable For Signal Transmission
RG316 Low Loss Coaxial Cable For Signal Transmission
RG316 Low Loss Coaxial Cable For Signal Transmission
RG316 Low Loss Coaxial Cable For Signal Transmission
RG316 Low Loss Coaxial Cable For Signal Transmission
RG316 Low Loss Coaxial Cable For Signal Transmission
RG316 Low Loss Coaxial Cable For Signal Transmission
RG316 Low Loss Coaxial Cable For Signal Transmission
Specifications
Brand Name :
Dingzun
Model Number :
Z-35
Certification :
UL,CE,ISO9001
Place of Origin :
China
MOQ :
500m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000M/DAY
Delivery Time :
15DAYS
Packaging Details :
250M/ROLL PACKED IN CARTON
Conductor Material: :
SILVER COPPER
Stranded :
stranded
Construction :
7/0.18
Insulation :
FEP
shield :
silver copper braid
armor :
no
Temperature :
200℃
Voltage :
300V
Application :
SIGNAL TRANSMISSION
Description

Z-35

Description: RG316 COAXIAL CABLE

Conductor: Silver plated copper
Construction: 0.18mm2(7/0.18)
Insulation: PTFE
Shield: silver copper wire braided
Jacket: Fep
Impendence: 50Ω
Type: Coaxial Cable


Coaxial cable comes in a variety of standard lengths. Shielded, highly flexible, and high-performance, the RG-316 provides exceptional durability and phase stability for applications involving extreme temperature adaptation needs. Stranded conductors with FEP sheathing provide greater flexibility. RG-316 coaxial cable is most commonly used to transmit radio frequency signals, telecommunications/wireless communications, broadcasting, and military equipment. It can also be used for antenna feeding, indoor/outdoor functions, jumper cable assemblies, and general purposes.

RG316 Low Loss Coaxial Cable For Signal Transmission

RG316 Low Loss Coaxial Cable For Signal Transmission
