Specifications
Place of Origin :
China
Brand Name :
hbhs
Model Number :
GD-01
Door Material :
Steel
Warranty :
1 Year
Feature :
Windproof, Hear insukation, high safety
Surface Finishing :
Finished
Opening Method :
Electric Side Opening
After-sale Service :
Online technical support
Project Solution Capability :
total solution for projects
Application :
garage, warehouse, factory,workshop
Design Style :
Modern
Product name :
Sectional Industrial Door
Material :
Galvanize steel, Aluminum, Stainless steel
Color :
Customized

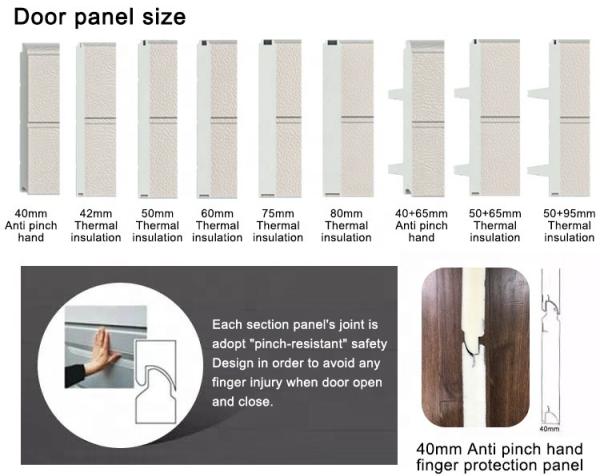

Panel Thickness :
40mm,42mm,50mm,60mm,75mm,80mm,40+65mm,50+65mm,50+95mm
Height :
435mm, 485mm, 535mm
Width :
Maximum 6500mm
Control :
Automatic with remote cotroled
Handware :
With all handware
Open Style :
Automatic
Door Type :
Polymer
Main Material :
Polymer
Description
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
Products Description
Material options
1. 304 STAINLESS STEEL 0.326mm or 0.426mm
2. Steel material door panel with polyethene foam filled
3. Galvanized steel tracks and accessories, customizable colors
Door panel height
450mm、500mm、 550mm
Normal Color
White, black, silver gray, dark gray, sky blue, fire blue, yellow, red, gold oak, black walnut, with a large quantity and customizable colors
Rail & Fitting
Hot dip galvanized steel rail and galvanized bracket & hinges.
Aluminum powder coated 2.8mm thick rail is also optional.
Sealing
With full sealed, weather resistance & well protection & soundproof.
Control
Automatic & remote controlled.
Power rate: 110V/220V/380V
Feature for door motorized system
Route memorable, door self locking when power cut off, self-checking up, non hand nipping, safety operation.
Product details
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
Details Images
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
Side hung motor
MODEL
600N
800N
1000N
1200N
Voltage range/rated frequency
220~240V AC, 50/60HZ
Rated power
200W
235W
245W
260W
Maximum lifting force
600N
800N
1000N
1200N
Door opening speed
180mm/s
Lamp type
LED
Lighting time
3 minutes
Coding type
Rolling code
Radio frequency
433.92 MHZ or other requirements
Ambient temperature
-20°C~+40°C
Relative humidity
<90%
Applicable door area
10m²
12m²
14m²
16m²
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers

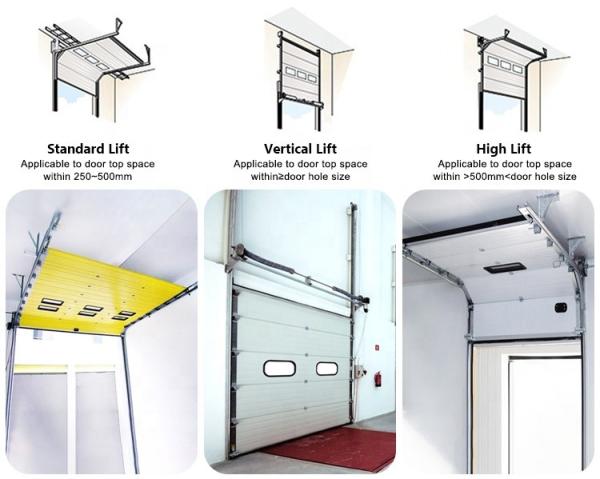

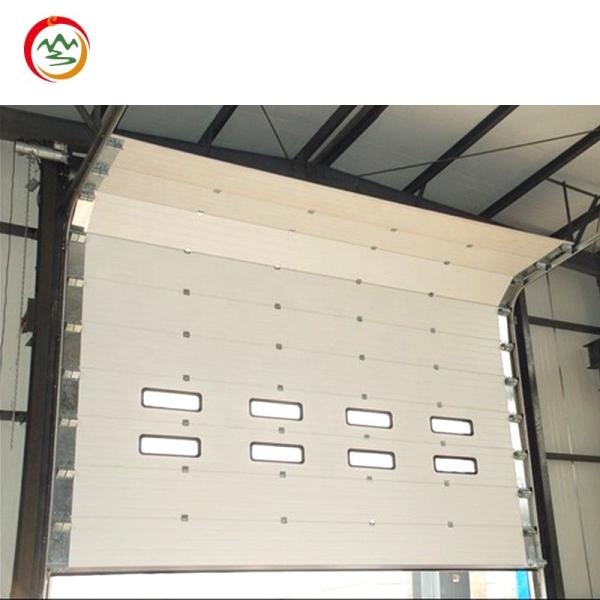

Industrial Overhead Doors

Industrial Overhead doors are lifted by multiple blocks, spring balance system, motor drive, with high degree of durability, wind pressure resistance and good heat preservation performance, durable, easy to operate, safe and optional. It is suitable for high-end factories, warehouses and buildings with large door and roof space. Compared with other types of doors, industrial sliding doors have different requirements for heat insulation, sound insulation, heat preservation, sealing, rust prevention, color, daylighting, fire protection, working mode, and automation. They have higher quality requirements and safety precautions. More stringent requirements. Sound insulation: K=0.4-0.5W/㎡C, heat insulation: RM value=26.5Dba, door panel adopts electrostatic powder spraying process, which is characterized by strong durability, anti-aging, anti-corrosion, non-fading, easy maintenance, and long-lasting as new . The thickness is from 40mm to 100mm, depending on the customer's requirements for edge functions. Control method: remote control, button, geomagnetism, radar, etc.
Company Profile
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
Why Choose Us
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
packing shipping and payment
Large Industrial Workshop Door and Insulated Sectional Industrial Doors With Smart Garage Door Openers
FAQ
1. How can I buy the doors?
If you want buy sectional industrial door, we need know your door open size, than contact us for doors drawing and price.

2. What's our payment terms?
T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.

3. What's the delivery time?
Within 15-35 days after we confirm you requirement.

4.I can't install the doors.
No worries, it's very easy, we have installation vedio, manual books and technician on line supports. If need we go to the work site to installation, please contact sales for the service.

5. I never imported from China.
No worries. Our sales are rich experience, they will help you with imported step by step.
